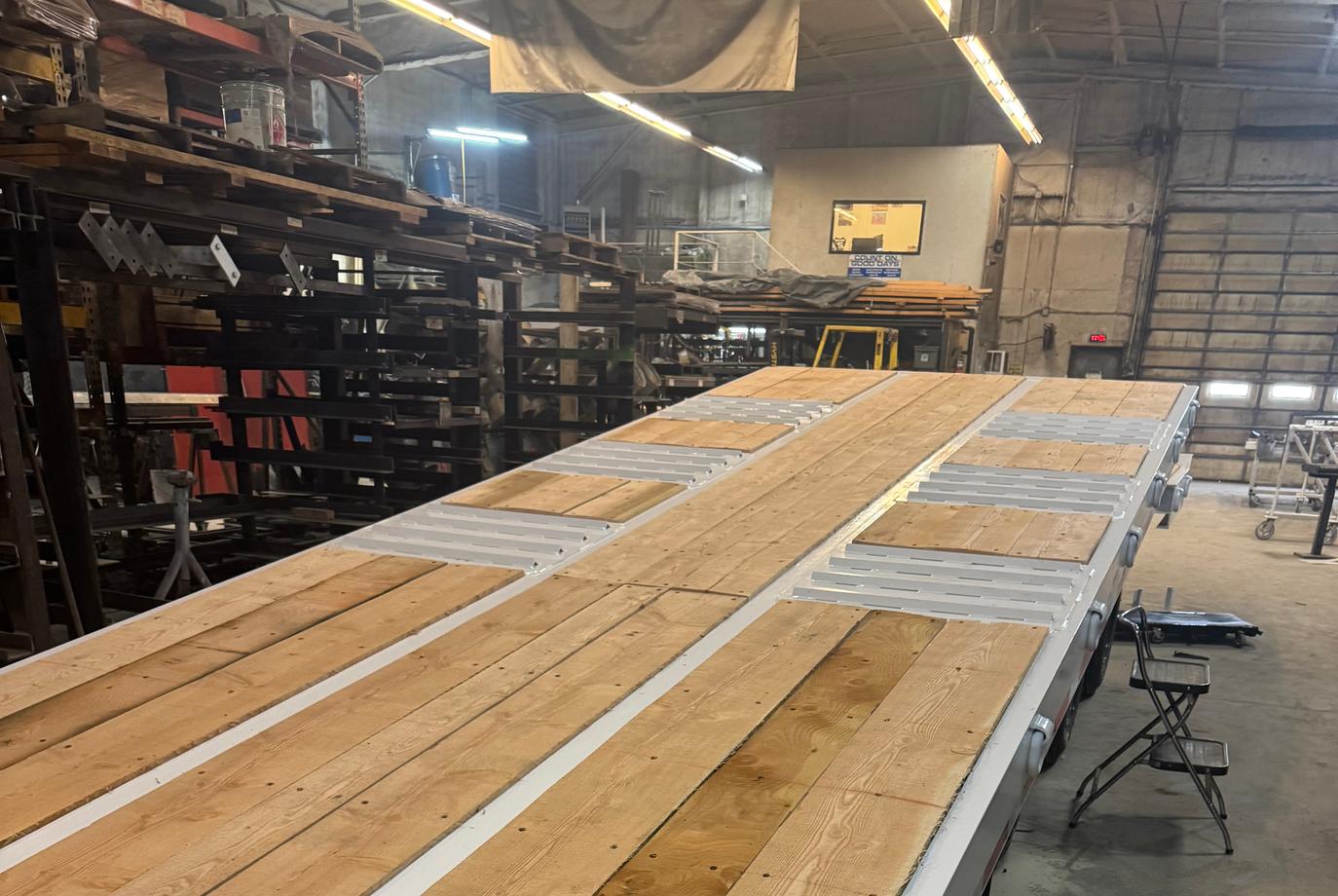

MIKE GIBSON MANUFACTURING INC T603 Trailer

MIKE GIBSON MANUFACTURING INC. T603 – Tilt & Tag, GVWR: 73,760 LBS, CAPACITY (DISTRIBUTED): 60,000 LBS

MIKE GIBSON MANUFACTURING INC. T603 Tilt & Tag trailer with GVWR: 73,760 LBS and CAPACITY (DISTRIBUTED): 60,000 LBS.

Key Specs

• Manufacturer: MIKE GIBSON MANUFACTURING INC.
• Model: T603
• GVWR: 73,760 LBS
• GAWR: 68,100 LBS
• Base Trailer Weight: 13,760 LBS
• Capacity (Distributed): 60,000 LBS

Tub Construction

• Frame Construction: SUBFRAME-HEAVY WALL TUBULAR BEAMS, WITH 12X4 & 8X4 STRUCTURAL BEAMS, 8X8 FACEPLATEDECK - GRADE 50 I-BEAM LONGITUDINAL BEAMS, GRADE 50 CHANNEL PERIMETER RAILS
• Crossmembers: 5X2 TUBULAR CROSSMEMBERS
• Decking: 2" TRUE ROUGH CUT DOUG FIR LUMBER
• Finish Preparation: SAND BLAST
• Finish Coating: POWDER COAT

Hydraulics & Control

• Hitch: 90,000 LB CAPACITY 3" DRAWBAR
• Landing Gear: 1 - SINGLE SPEED RAM JACK, 25,000 LB LIFT CAPACITY

Axles & Suspension

• Axles: ATY 3 - 25,000 LB CAPACITY, CENTER AXLE ABS, FRONT/REAR NON-ABS
• Suspension: HEAVY DUTY MECHANICAL SPRING SUSPENSION, TRI-AXLE WITH AXLE ALIGNMENT CAPABILITIES
• Hubs: OIL BATH TYPE, 8 ON 275MM BOLT PATTERN
• Brakes: S-CAM FULL AIR BRAKES, AUTO SLACK ADJUSTERS, EQUIPPED WITH 2S/2M ABS

Wheels & Tires

• Wheels: 6.75 X 17.5 DUAL WHEELS
• Tires: 235/75R 17.5 LOAD RANGE J, CAPACITY - 5675 LBS PER TIRE

Lighting & Safety

• Electrical Harness: PHILLIPS SEALED WIRING HARNESS AND LIGHTS
• Safety Chains: QTY 2- 1/2" GR. 50 SAFETY CHAIN WITH HOOK, 36" LONG
• Load Securement: QTY 20 - 1" D-RINGS, WORKING LOAD LIMIT OF 15,586 LBS, MIN BREAK STRENGTH OF 46,758 LBS

Additional Features

• Tool Compartment: IN TONGUE TOOLBOX, WITH LOCKABLE LID
