Saw T603 Trailer

Saw T603 – Tilt & Tag, 30-TON, 36'

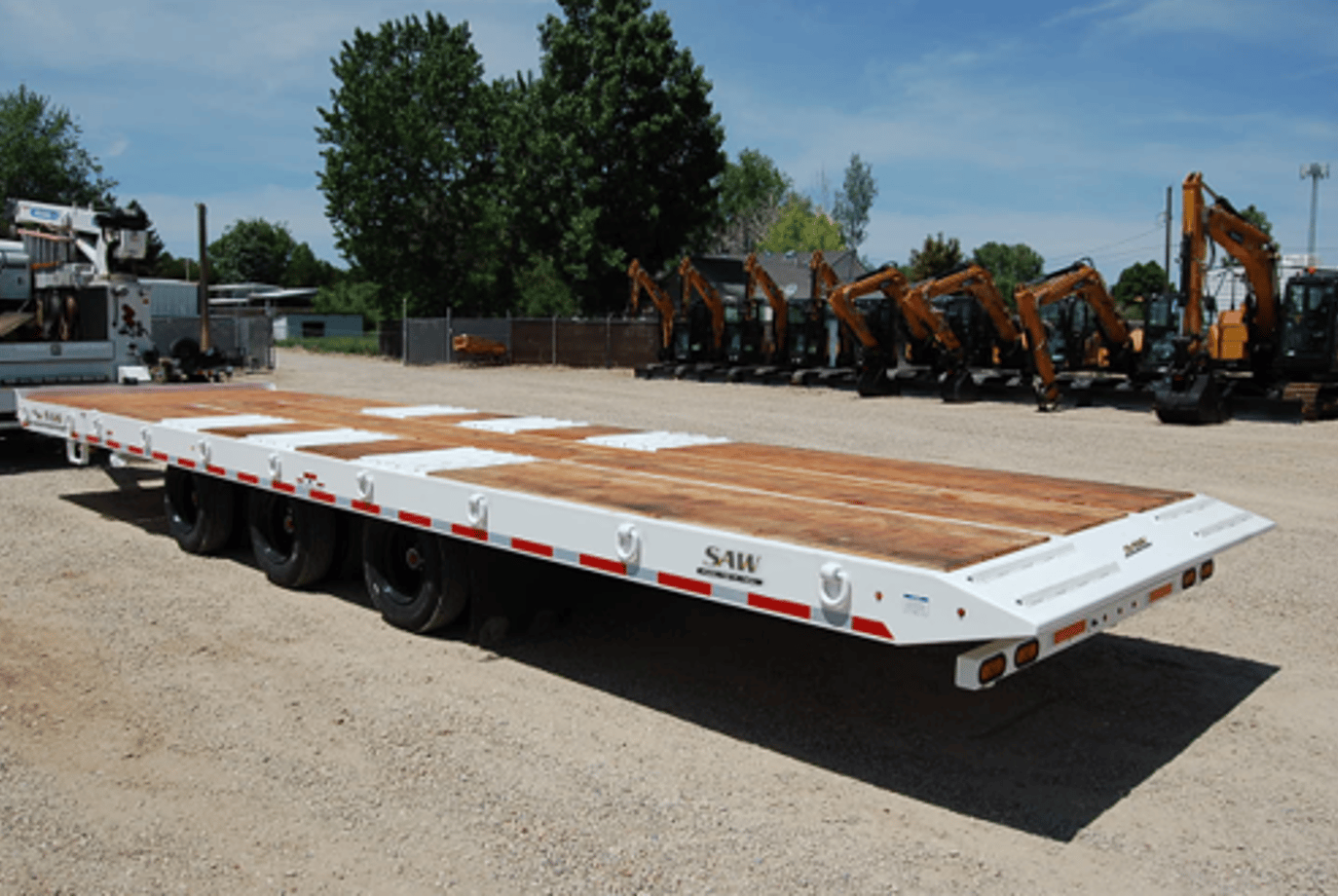

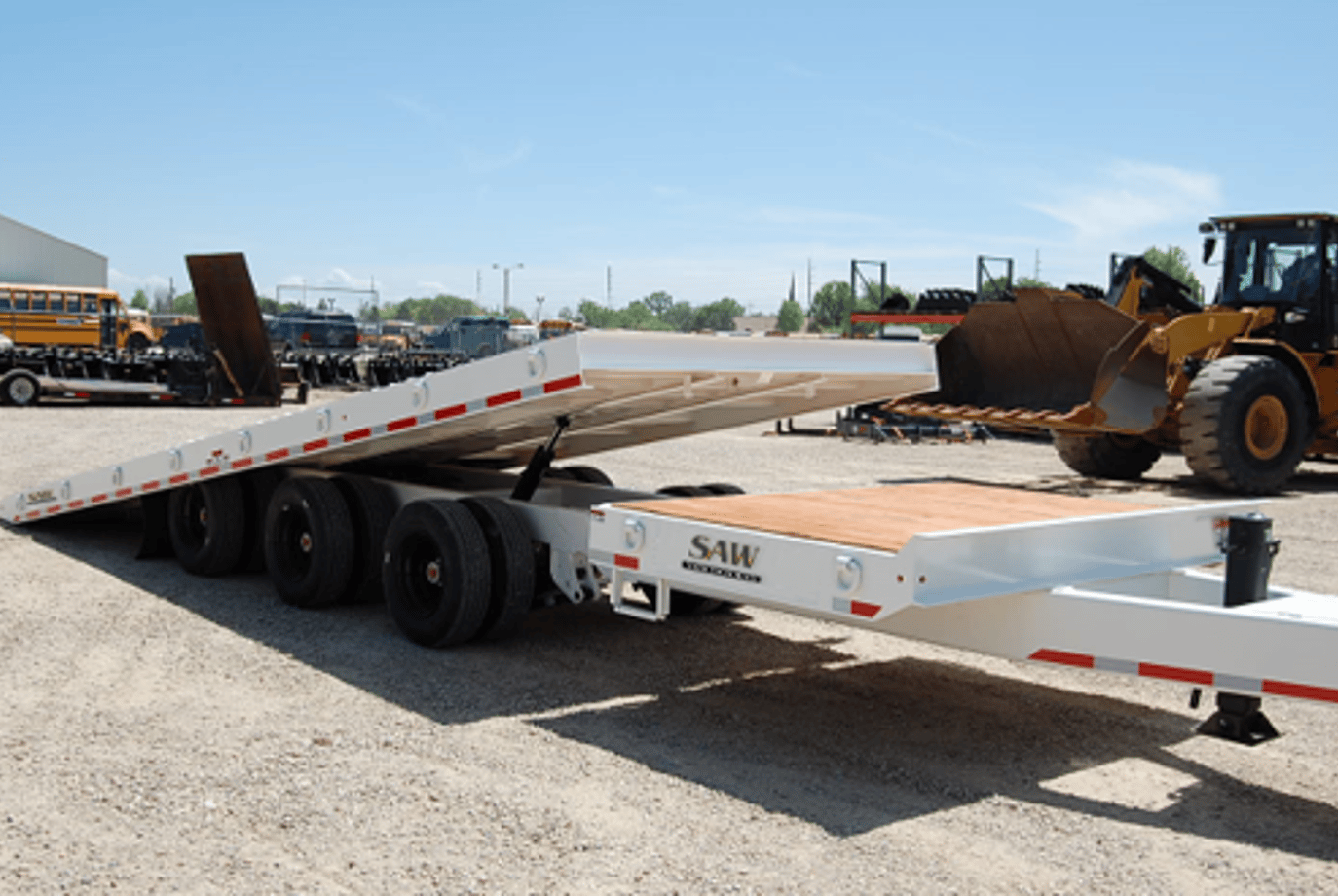

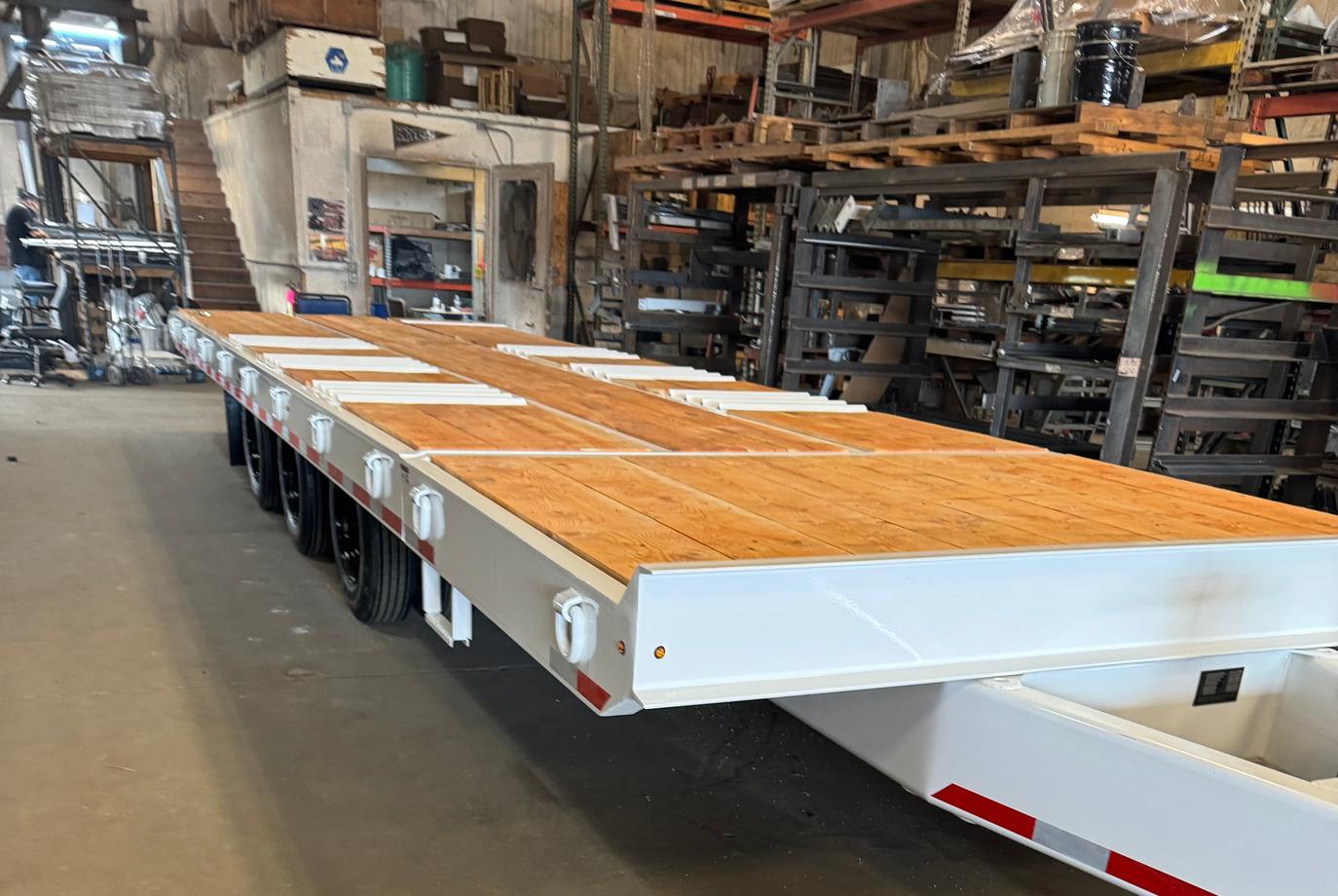

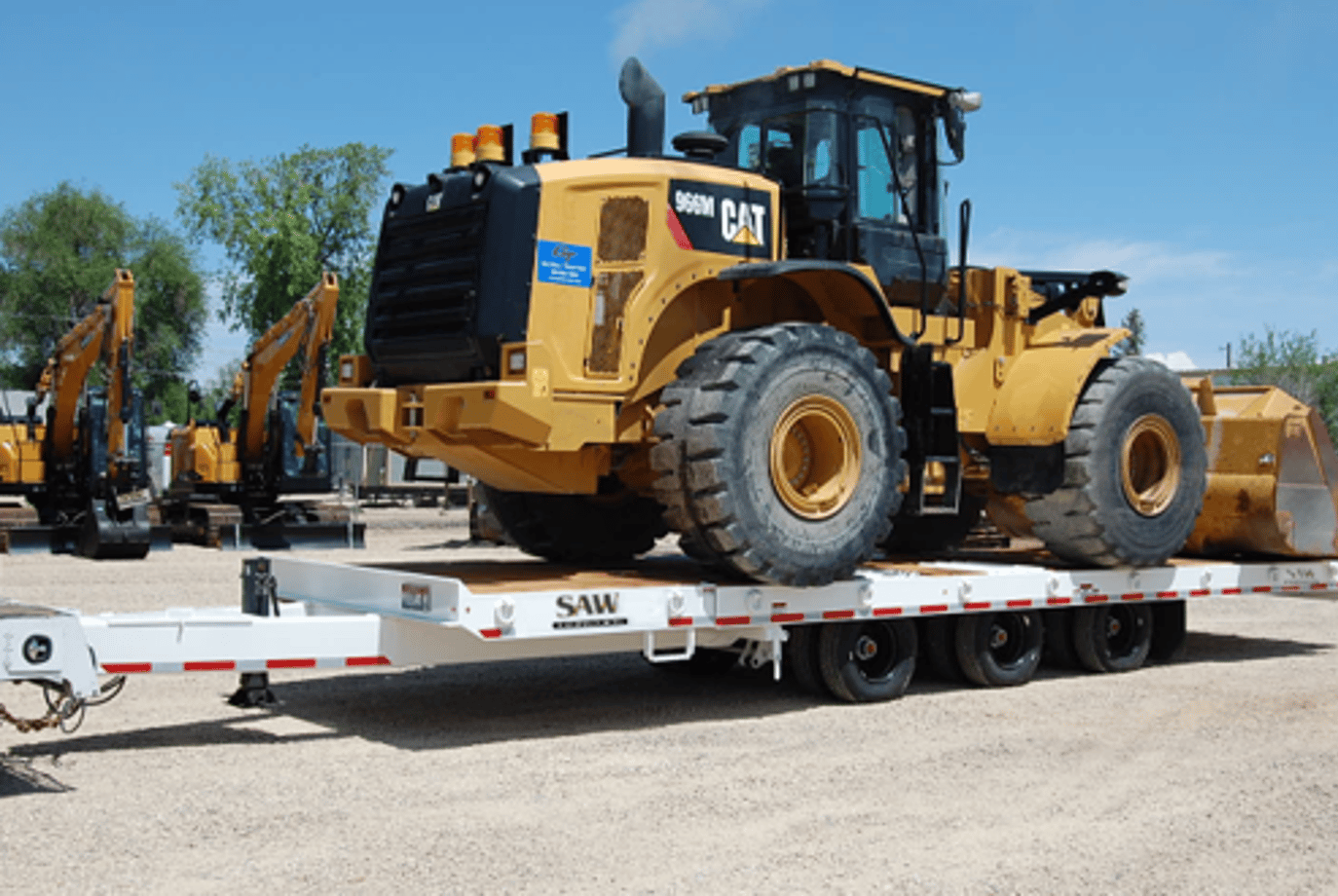

Saw T603 Tilt & Tag is a 30-TON tilt deck with a 36' overall length.

Key Specs

• Capacity: 30-TON
• Overall length: 36'
• Tongue: 5'
• Stationary deck: 5'
• Tilt deck: 26'
• Deck height: 36 ½"
• Width: 102"

Decking

• D-Rings: (6) D-RINGS PER SIDE
• Decking: WOOD DECKING
• Fender wheel wells: STEEL FENDER WHEEL WELLS
• Deck lock: MECHANICAL CAM-OVER DECK LOCKING SYSTEM

Tires & Wheels

• Tires: (12) 215/75R17.5 RADIAL TIRES
• Wheels: 8-HOLE STEEL DISC WHEELS

Frame

• Nosepiece: FORMED NOSEPIECE WITH ADJUSTABLE PINTLE EYE LOAD HEIGHTS FROM 17" TO 36" IN 2" INCREMENTS
• Block tray: BLOCK TRAY
• Jackleg: 2-SPEED JACKLEG
• Safety chains: SAFETY CHAINS
• Main frame: HEAVY DUTY 16" MAIN FRAME W/ FRAME REINFORCEMENTS AT TRANSITIONS
• Rear frame reinforcement: BOXED REINFORCEMENT AT 10" REAR FRAME TRANSITION

Axles & Suspension

• Axles: (3) 20,000 LBS AXLES
• Axle spacing: 49" AXLE SPACING
• Suspension: HUTCH 9700 SPRING SUSPENSION
• ABS: ABS (4S/1M)

Electrical, Paint & Safety

• Lighting: FOLD UP REAR LIGHT BAR
• Lights: LED LIGHTS
• Wiring: WIRE IN LOOM
• License plate holder: LICENSE PLATE HOLDER
• Finish: SANDBLASTED, PRIMED & PAINTED WITH POLYURETHANE PAINT
• Safety: CONSPICUITY TAPE
