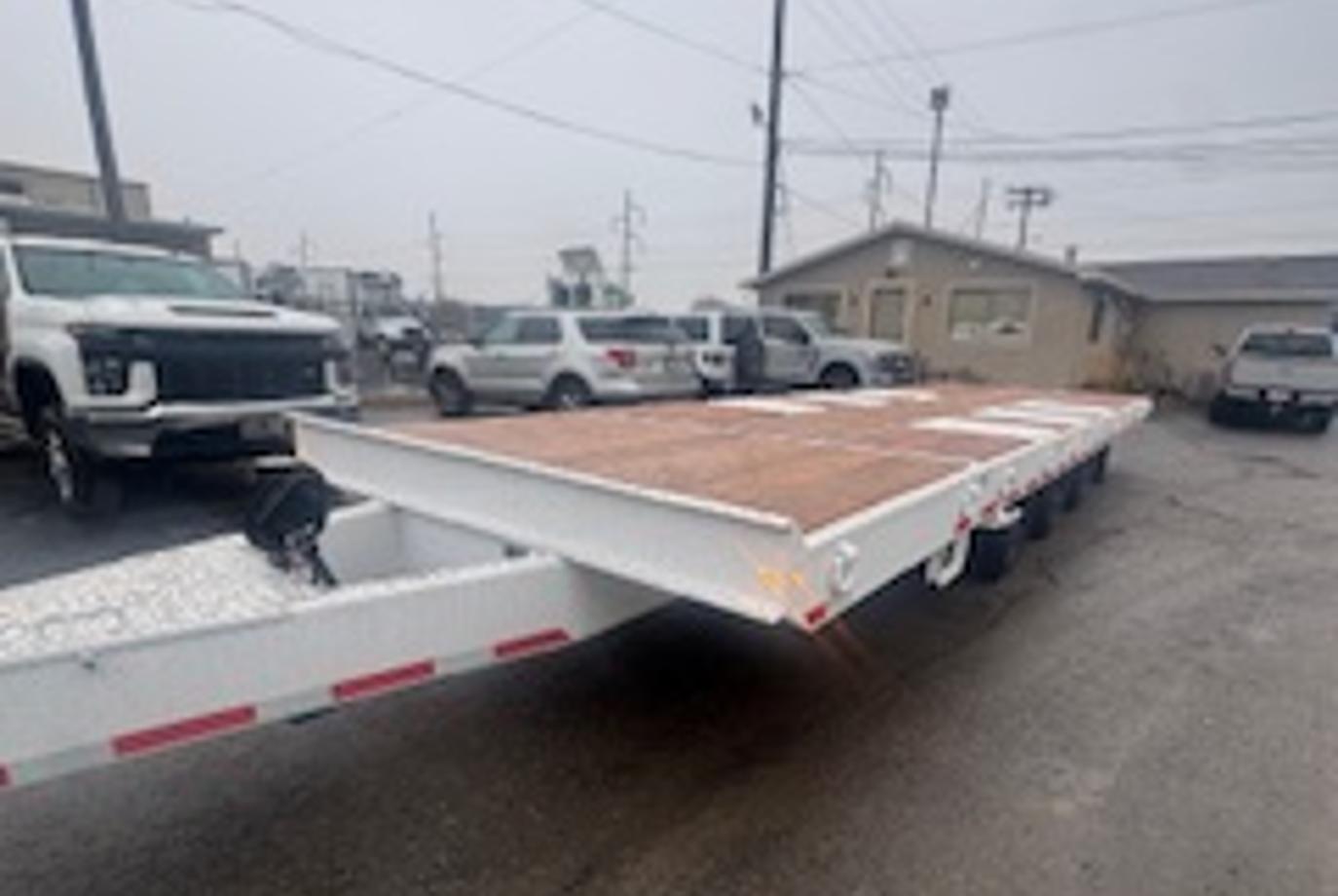

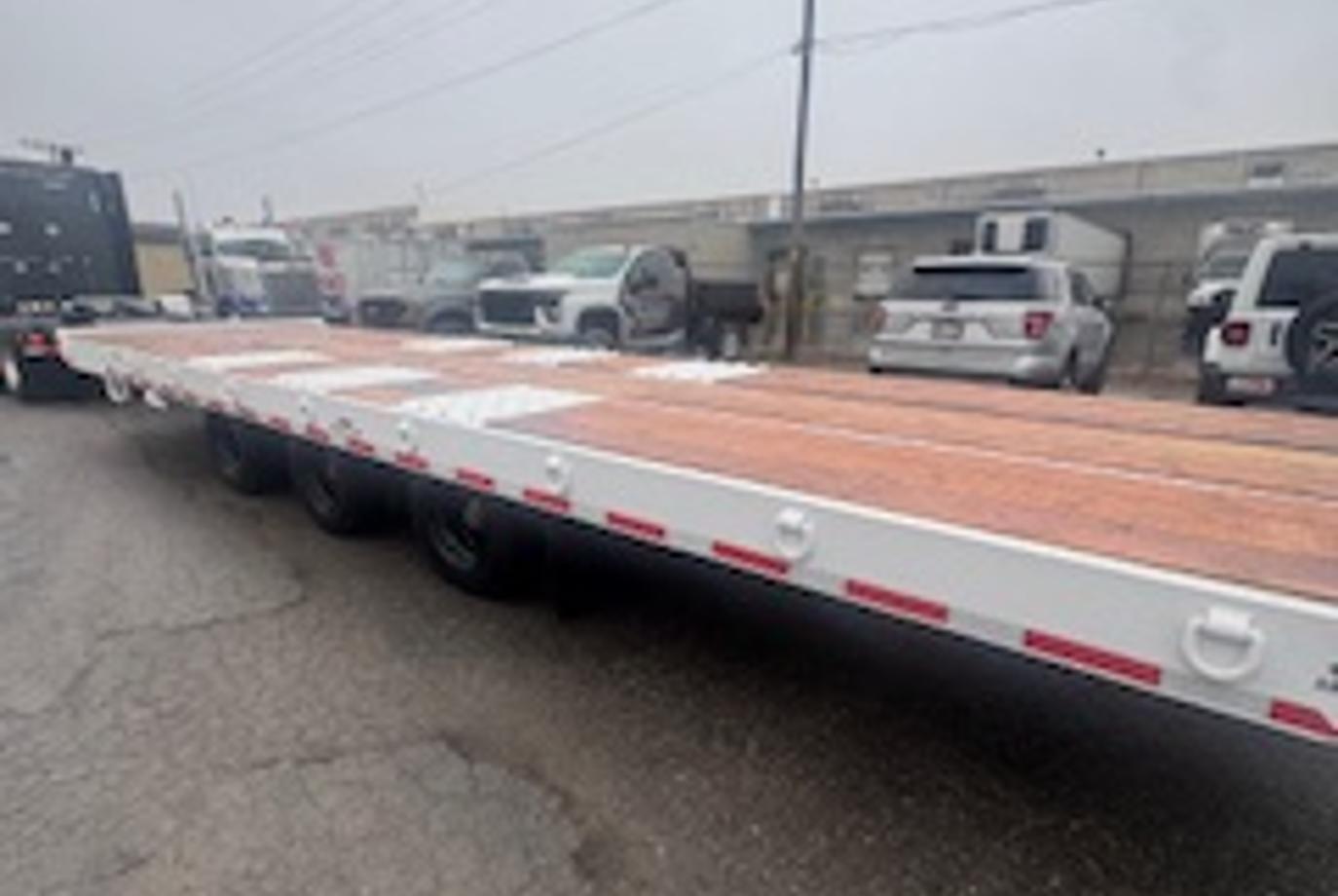

Saw T603 Trailer

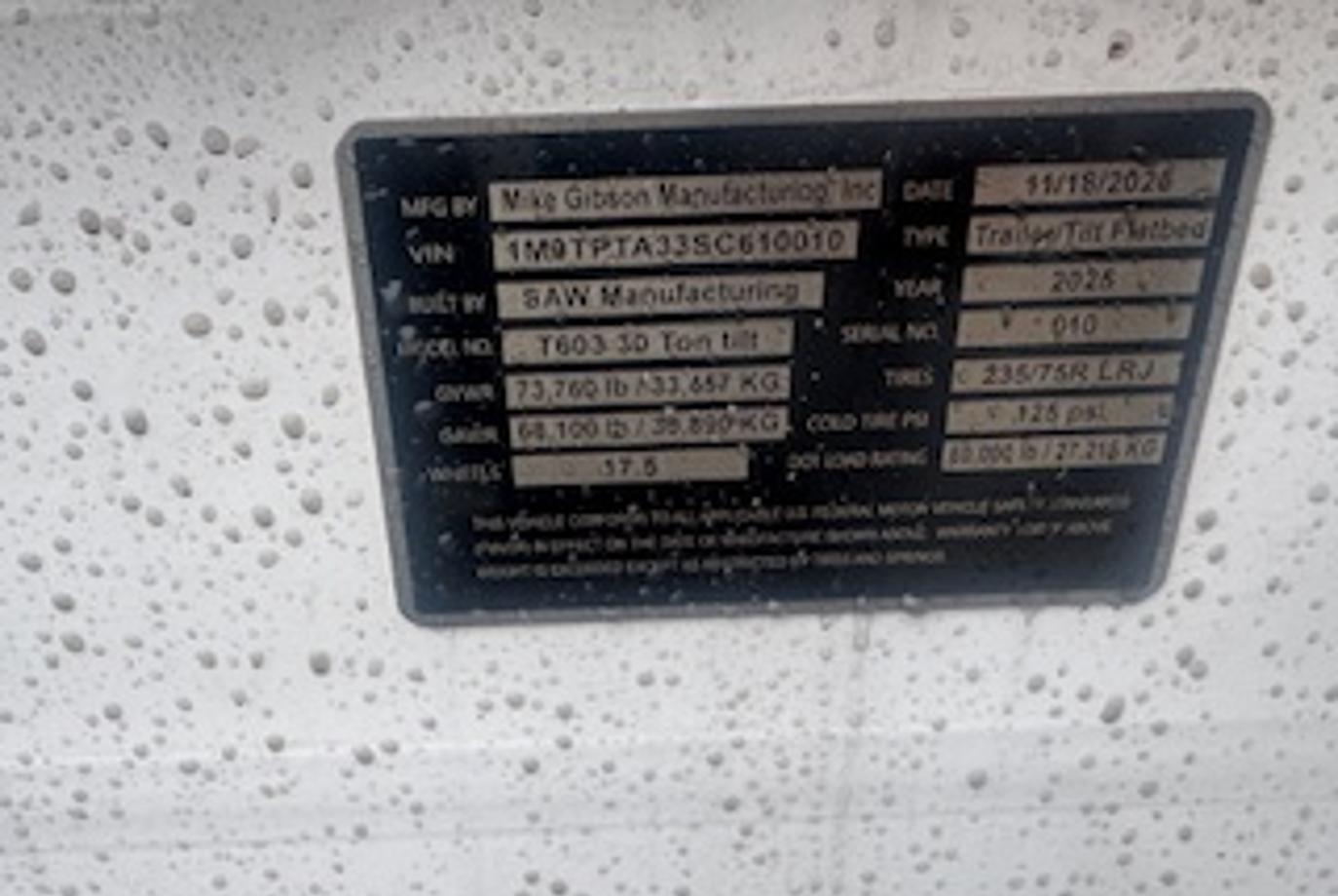

Saw T603 – Tilt & Tag, GVWR: 73,760 LBS

Saw T603 Tilt & Tag with GVWR: 73,760 LBS and Capacity (distributed): 60,000 LBS.

Key Specs

• GVWR: 73,760 LBS
• GAWR: 68,100 LBS
• Base trailer weight: 13,760 LBS
• Capacity (distributed): 60,000 LBS
• Axles: ATY 3 - 25,000 LB CAPACITY, CENTER AXLE ABS, FRONT/REAR NON-ABS

Tub Construction

• Frame construction: SUBFRAME-HEAVY WALL TUBULAR BEAMS, WITH 12X4 & 8X4 STRUCTURAL BEAMS, 8X8 FACEPLATEDECK - GRADE 50 I-BEAM LONGITUDINAL BEAMS, GRADE 50 CHANNEL PERIMETER RAILS
• Crossmembers: 5X2 TUBULAR CROSSMEMBERS
• Decking: 2" TRUE ROUGH CUT DOUG FIR LUMBER

Hitch & Landing Gear

• Hitch: 90,000 LB CAPACITY 3" DRAWBAR
• Landing gear: 1 - SINGLE SPEED RAM JACK, 25,000 LB LIFT CAPACITY

Axles & Suspension

• Hubs: OIL BATH TYPE, 8 ON 275MM BOLT PATTERN
• Suspension: HEAVY DUTY MECHANICAL SPRING SUSPENSION, TRI-AXLE WITH AXLE ALIGNMENT CAPABILITIES

Wheels & Tires

• Wheels: 6.75 X 17.5 DUAL WHEELS
• Tires: 235/75R 17.5 LOAD RANGE J, CAPACITY - 5675 LBS PER TIRE

Brakes & Electrical

• Brakes: S-CAM FULL AIR BRAKES, AUTO SLACK ADJUSTERS, EQUIPPED WITH 2S/2M ABS
• Electrical harness: PHILLIPS SEALED WIRING HARNESS AND LIGHTS

Additional Features

• Load secure: QTY 20 - 1" D-RINGS, WORKING LOAD LIMIT OF 15,586 LBS, MIN BREAK STRENGTH OF 46,758 LBS
• Safety chains: QTY 2- 1/2" GR. 50 SAFETY CHAIN WITH HOOK, 36" LONG
• Tool compartment: IN TONGUE TOOLBOX, WITH LOCKABLE LID

Finish & Coating

• Finish preparation: SAND BLAST
• Finish coating: POWDER COAT
