CPS 4B342A200 Trailer

CPS 4B342A200 – Bottom Dump, 42'-0" x 96"

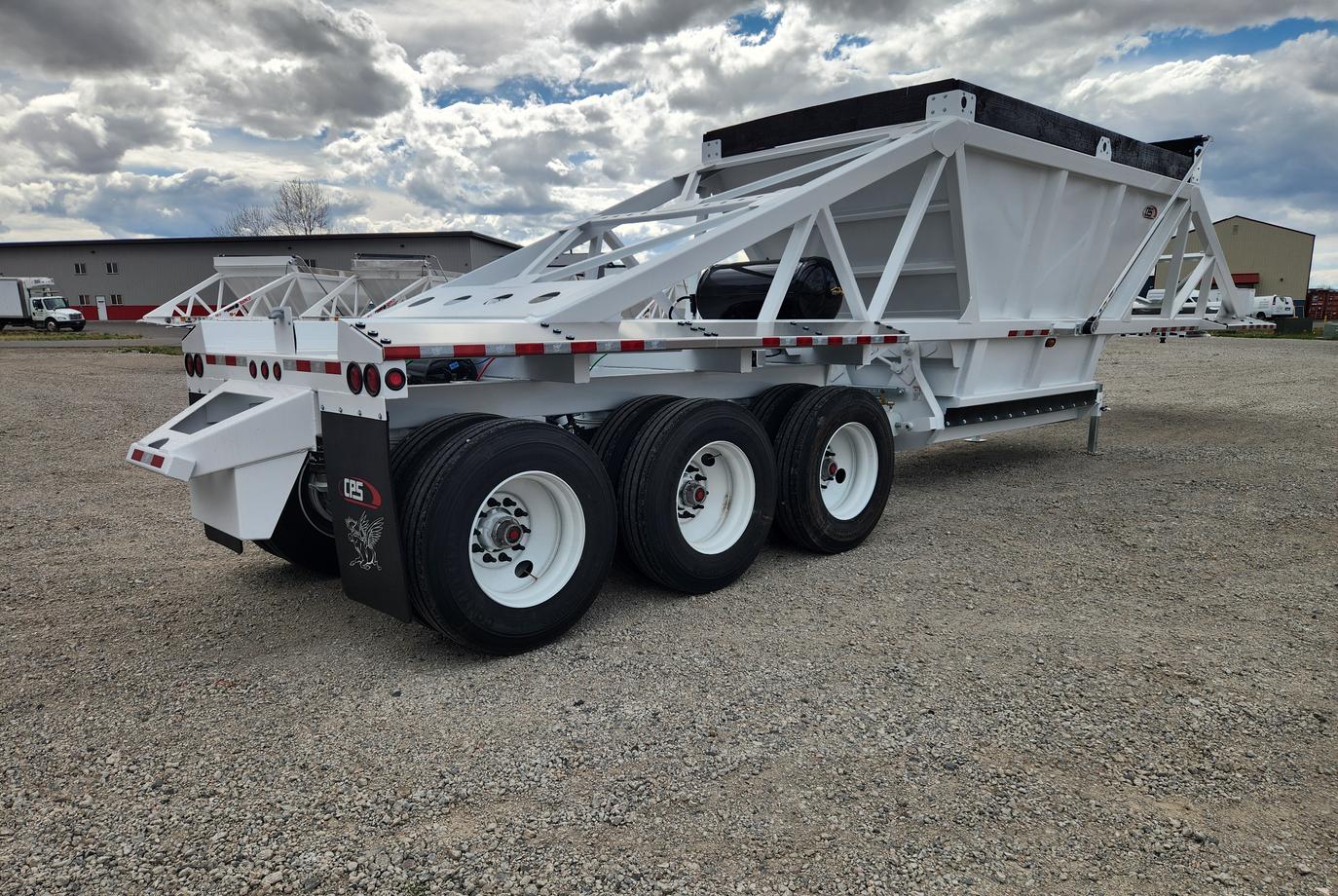

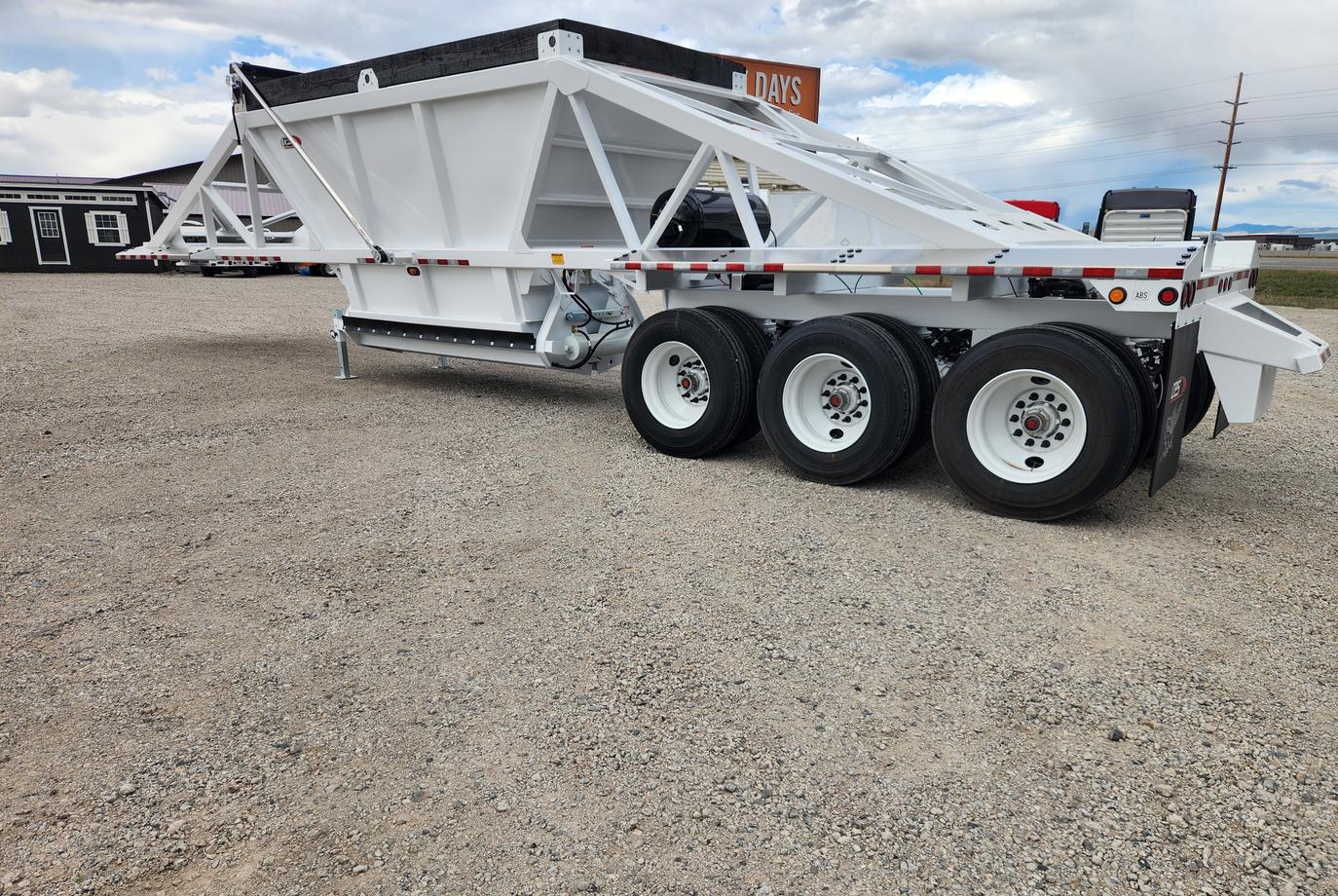

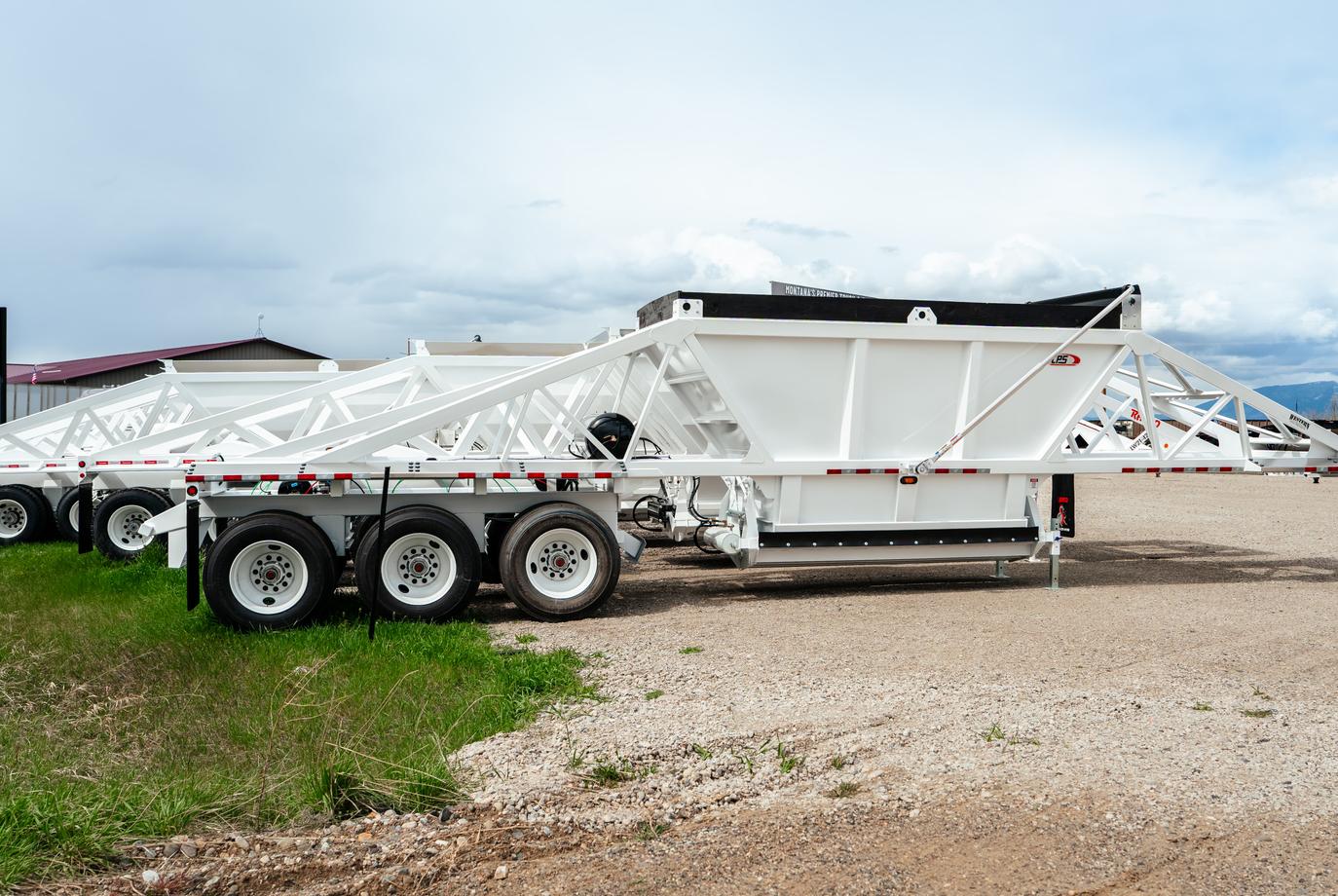

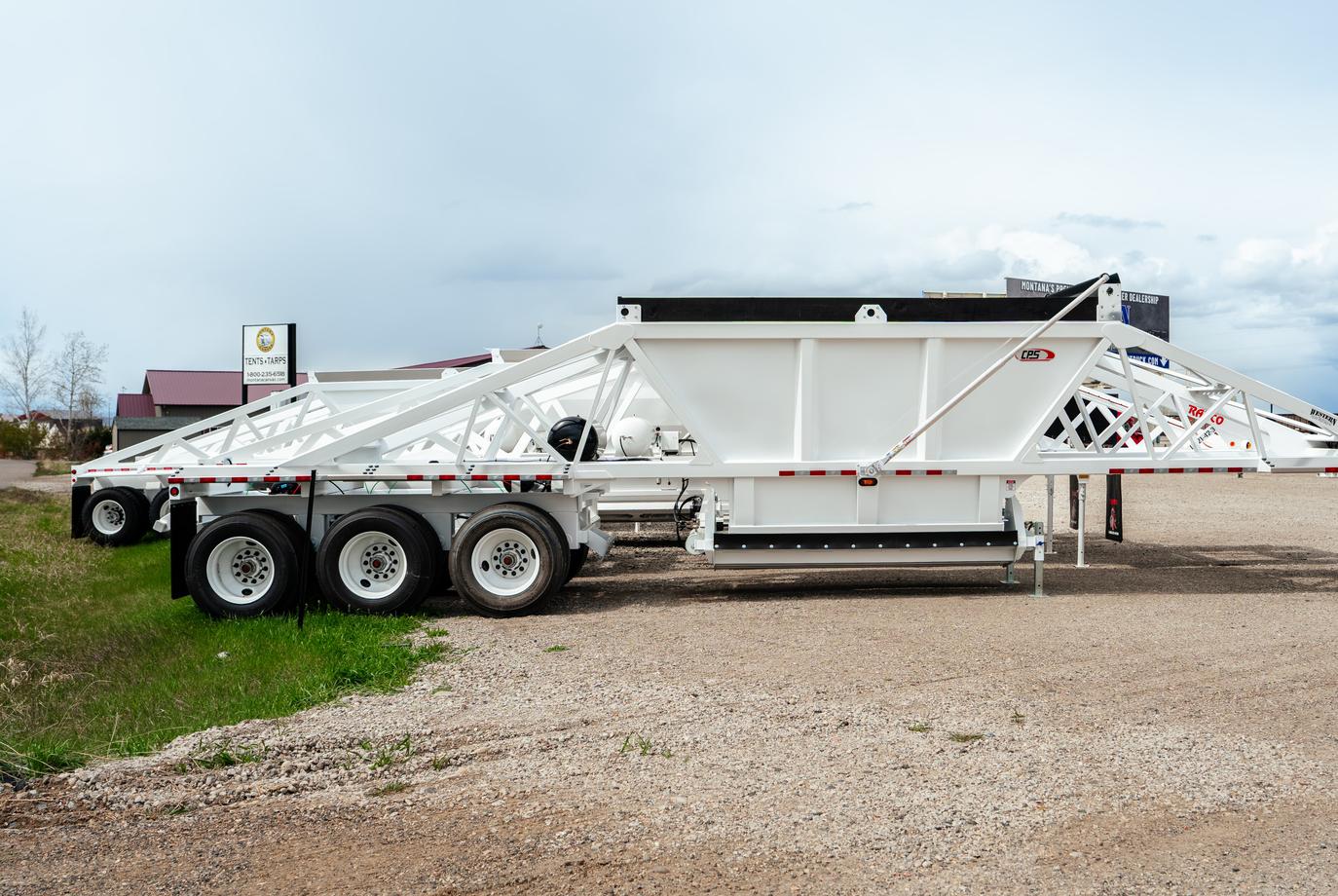

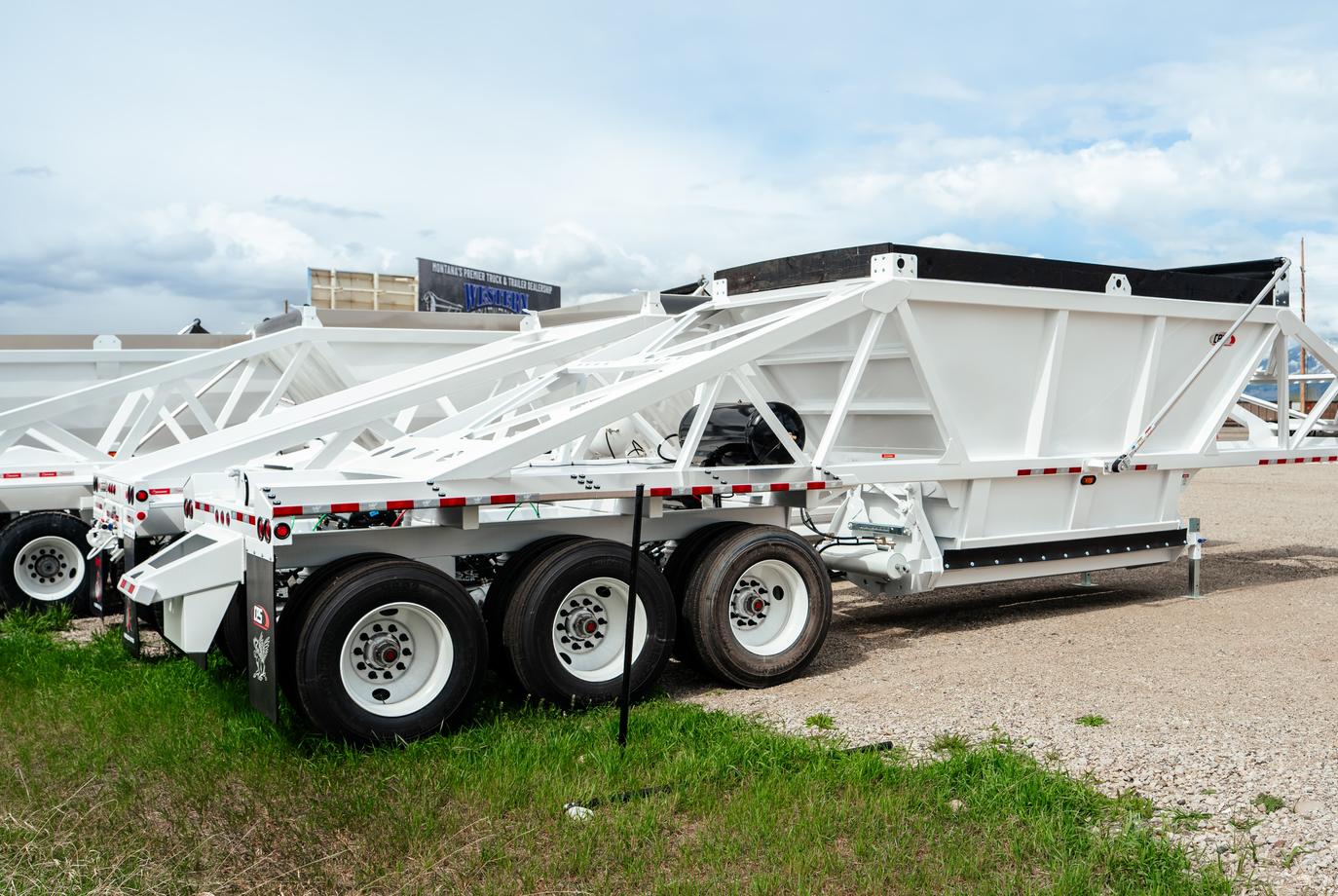

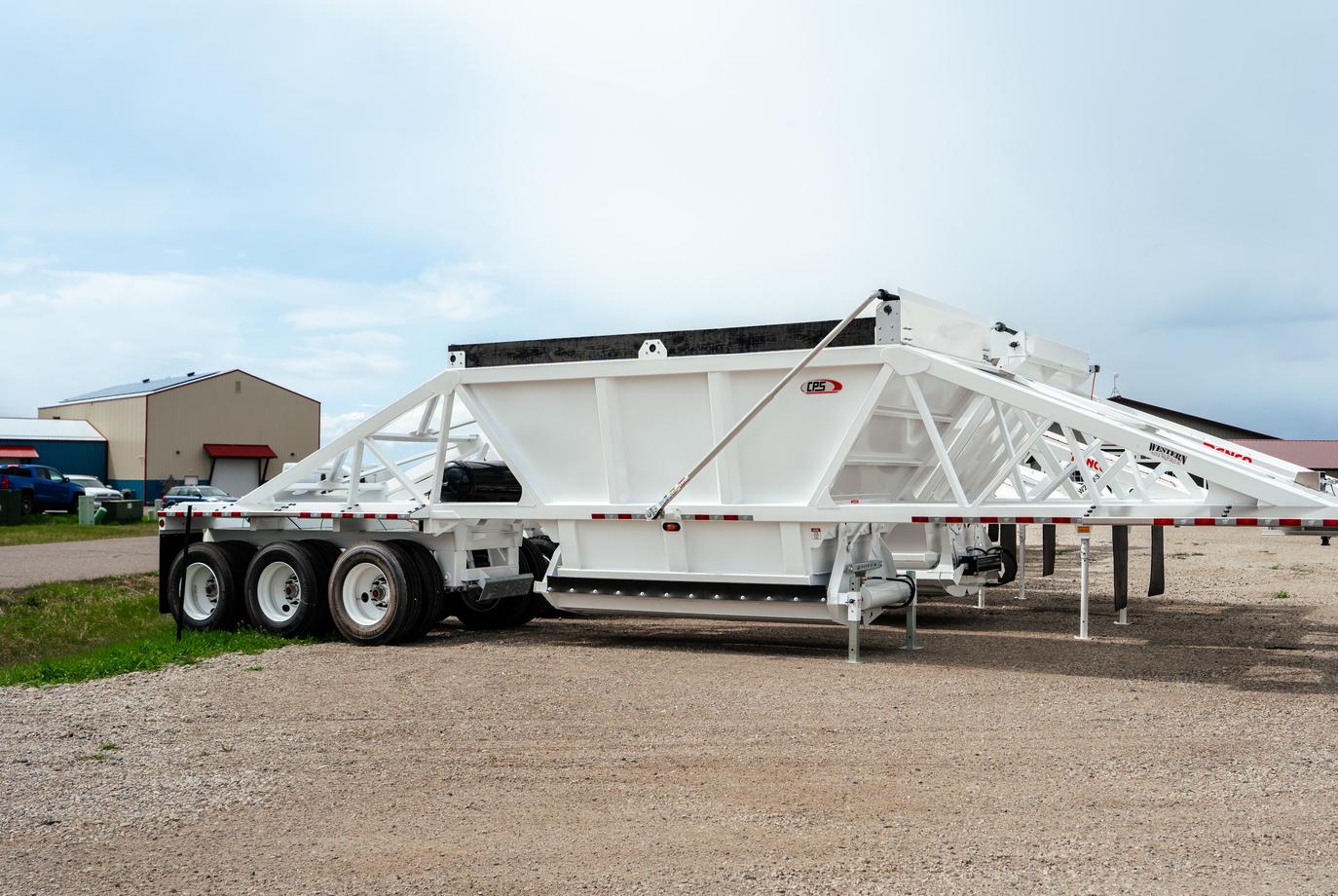

CPS 4B342A200 bottom dump semi-trailer, lightweight, capacity 20 CU/YARDS single hopper; length 42'-0" and width 96".

Key Specs

• Manufacturer: CPS
• Model: 4B342A200
• Category: Bottom Dump
• Capacity: CAPACITY OF 20 CU/YARDS SINGLE HOPPER; 23 CU/YARDS TO THE TOP OF BANGBOARDS
• Length: 42'-0"
• Width: 96"
• Height: 10' WITH BANGBOARDS / 9' 1" WITHOUT BANGBOARDS
• Coupler height: 48"
• Fifth wheel: OCILLATING FIFTH WHEEL WITH STANDARD KING PIN
• King pin location: 18" (STANDARD)

Tub Construction

• Upper hopper: UPPER HOPPER 10 & 12GA (STANDARD LIGHTWEIGHT)
• Lower hopper: LOWER HOPPER 10GA (STANDARD LIGHTWEIGHT)
• Opening: 54" X 108" - SIDES 12GA, ENDS 10GA
• Door material: 3/16 80W (STANDARD DOORS)
• Gate style: COMMERCIAL GRADE STEEL WITH SLIDE LOCKS

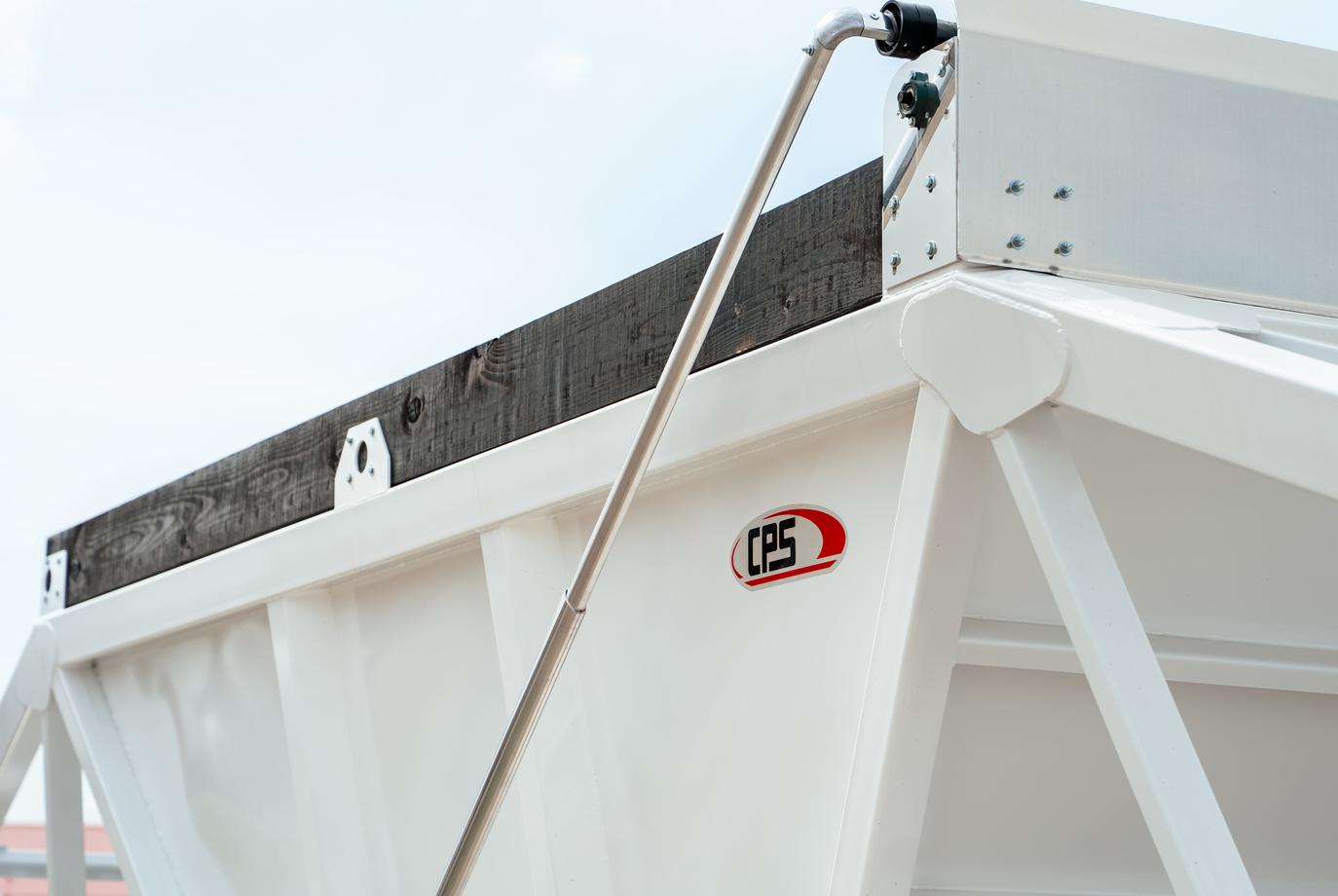

• Bang boards: WOOD BANG BOARDS
• Pushblock: WELDED PUSH BLOCK WITH CERTIFIED UNDER RIDE
• Bottom rail: 4" X 6" X 3/16" HSLA TUBE
• Top rail: 4" X 6" X 3/16" HSLA TUBE

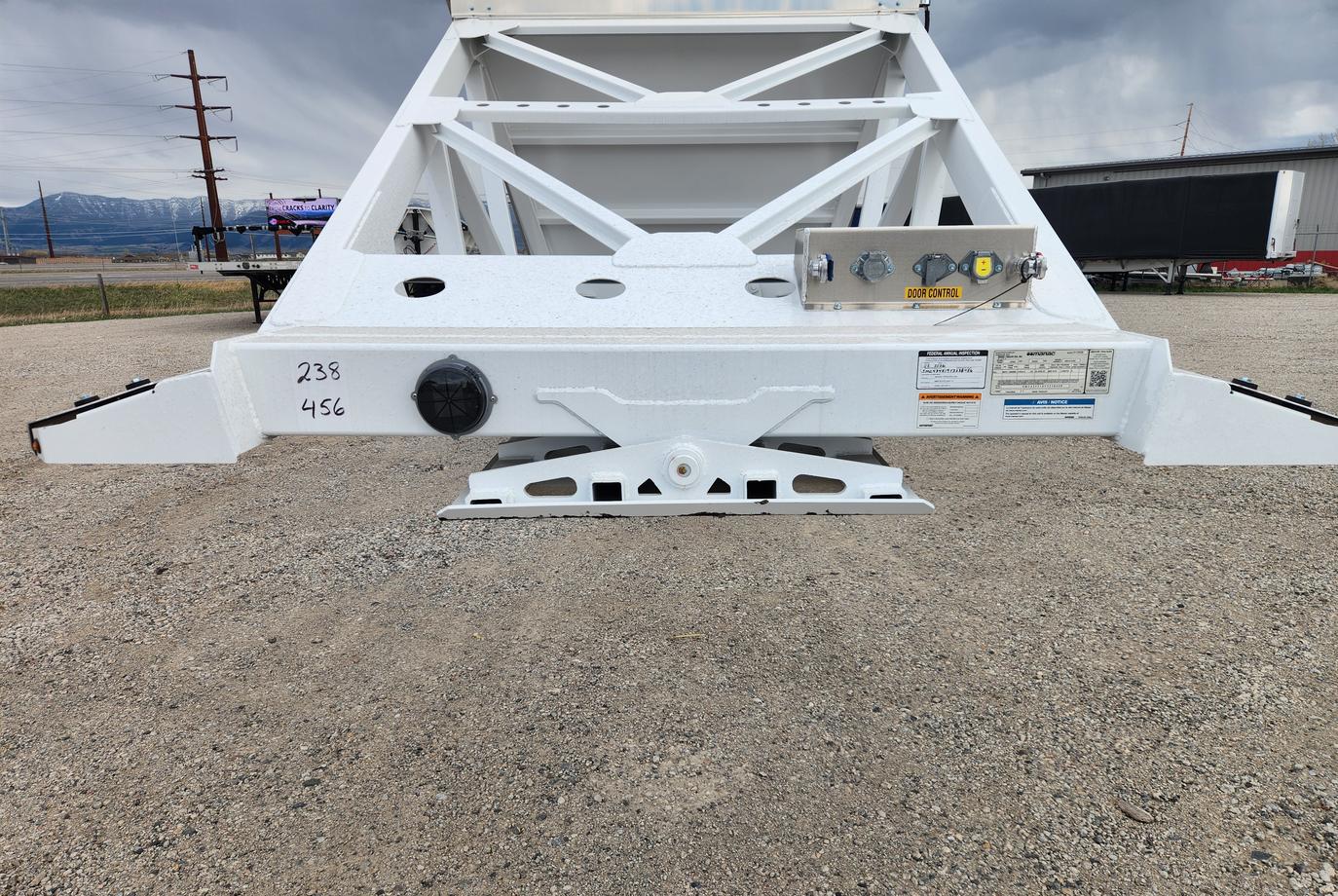

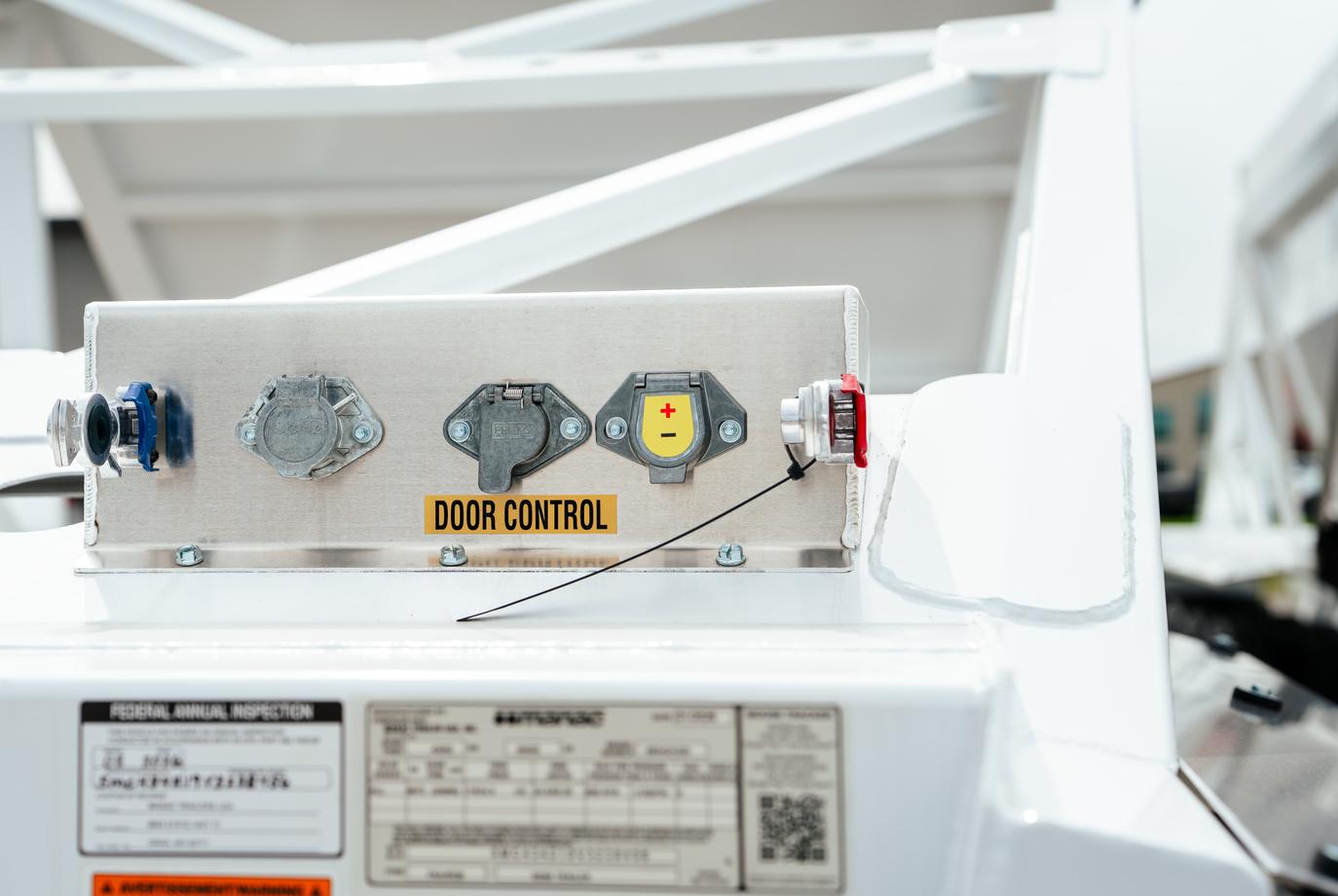

• Front connection box: ALUMINUM FRONT CONNECTION BOX
• Coupler, door, pushblock, bracing: COUPLER, DOOR, PUSHBLOCK, FRONT & REAR K-BRACING & SIDE WALLS WITH 2 VERTICAL SIDE SUPPORTS

Tarping & Lighting

• Tarp style: CPS, TARP FLIP ELECTRIC MESH BLACK 16' (FOR 40') ROLL RITE TM400 BOTTOM DUMP APPLICATION
• Main lighting: LED - ICC & DOT APPROVED SEALED BEAM LIGHTING SYSTEM
• Front connector: 7 WAY (SAE J560)
• Additional front connector: 6 WAY - WIRED FOR GATE CONTROL
• Mid-flashers: ONE LAMP INCLUDING SIDE MARKER AND FLASHER, EACH SIDE AT MIDDLE POINT, AMBER

Axles & Suspension

• Axle qty: TRIDEM
• Axles: HUB PILOTED 25K AXLES: 1ABS 2NON ABS
• Suspension: TRIDEM AIR RIDE
• Track: 71.5" (96" WIDTH)

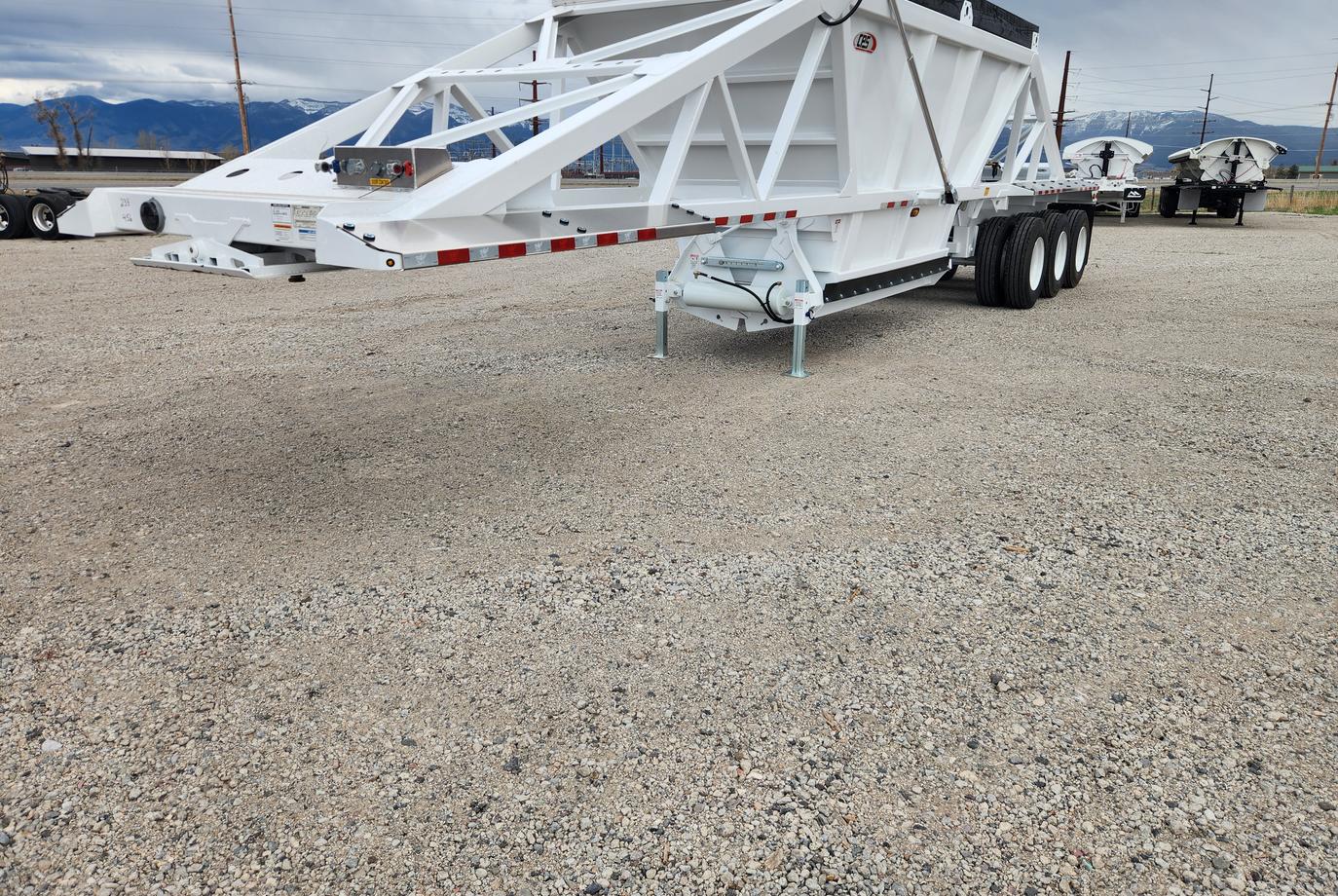

• Landing gear: DROP LEGS/STIFF LEG 4" X 4" (GALVANIZED)

Wheels, Tires & Brakes

• Brake size: 16 1/2" X 7" CAM BRAKES
• Brake chambers: T.S.E. BRAKE, "OMNIBRAKE" (30-30)
• Bearings: HM 218248 AND HM 212049
• Slack adjusters: MERITOR, AUTOMATIC, 28 SPLINES
• Seals: STEMCO, "GUARDIAN" TYPE, WITH "GEARLUBE" MINERAL OIL, SAE 80W90
• Tire size: 24.5 HUB PILOTED (PLANT CHOICE RADIALS)
• Exterior wheel: 11R24.5 16PLY W/STEEL WHEEL
• Interior wheel: 11R24.5 16PLY W/STEEL WHEEL

Air System & Controls

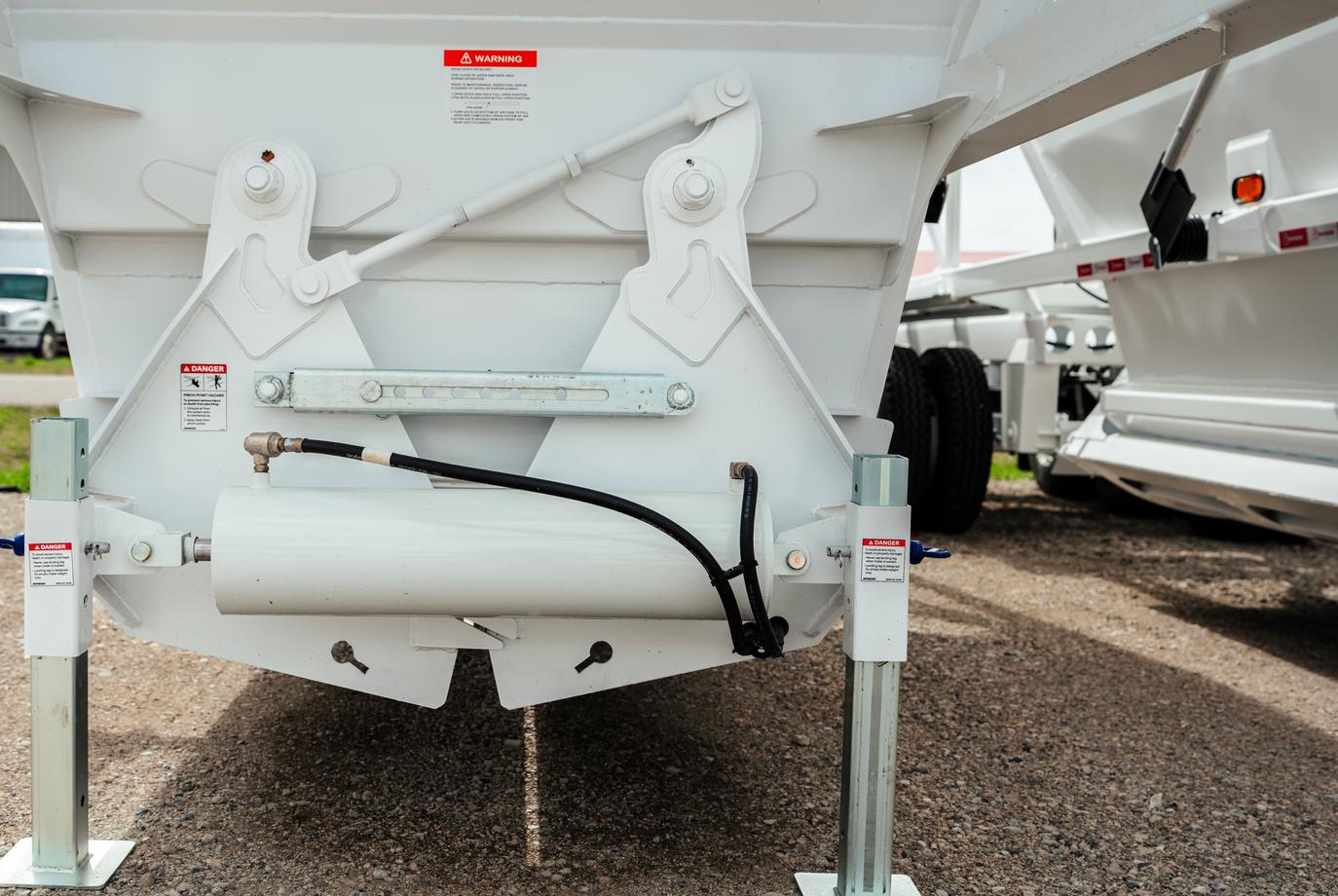

• Air cylinders: TWIN 8" BORE AIR CYLINDERS WITH 60 GALLON AIR RESERVOIR, FILTER, OILER AND QUICK RELEASE VALVE
• Gate control: AIR CONTROLLED - ELECTRIC CONTROLLED FROM THE CAB OF TRUCK AND MANUAL FROM THE GROUND. (VERSA VALVE HAND CONTROL)
• Air valves (ABS): 2S1M TRIDEM

Finishing & Safety

• Surface prep & paint: SHOT BLASTED, ACID BASED WASH WITH RUST INHIBITIVE RINSE. ONE COAT OF EPOXY PRIMER AND ONE COAT POLYURETHANE TOP COAT
• Color: WHITE
• Reflective tape: CONSPICUITY STRIPING IN COMPLIANCE WITH FMVSS/ CMVSS 108. GRAY AND RED EACH SIDE, FULLY COVERS REAR SILL AND PUSHBLOCK
• Windrow deflector: STANDARD DIRT DEFLECTOR (GALVANIZED)

Additional Options

• CALIFORNIA LEGAL (LIGHTWEIGHT)

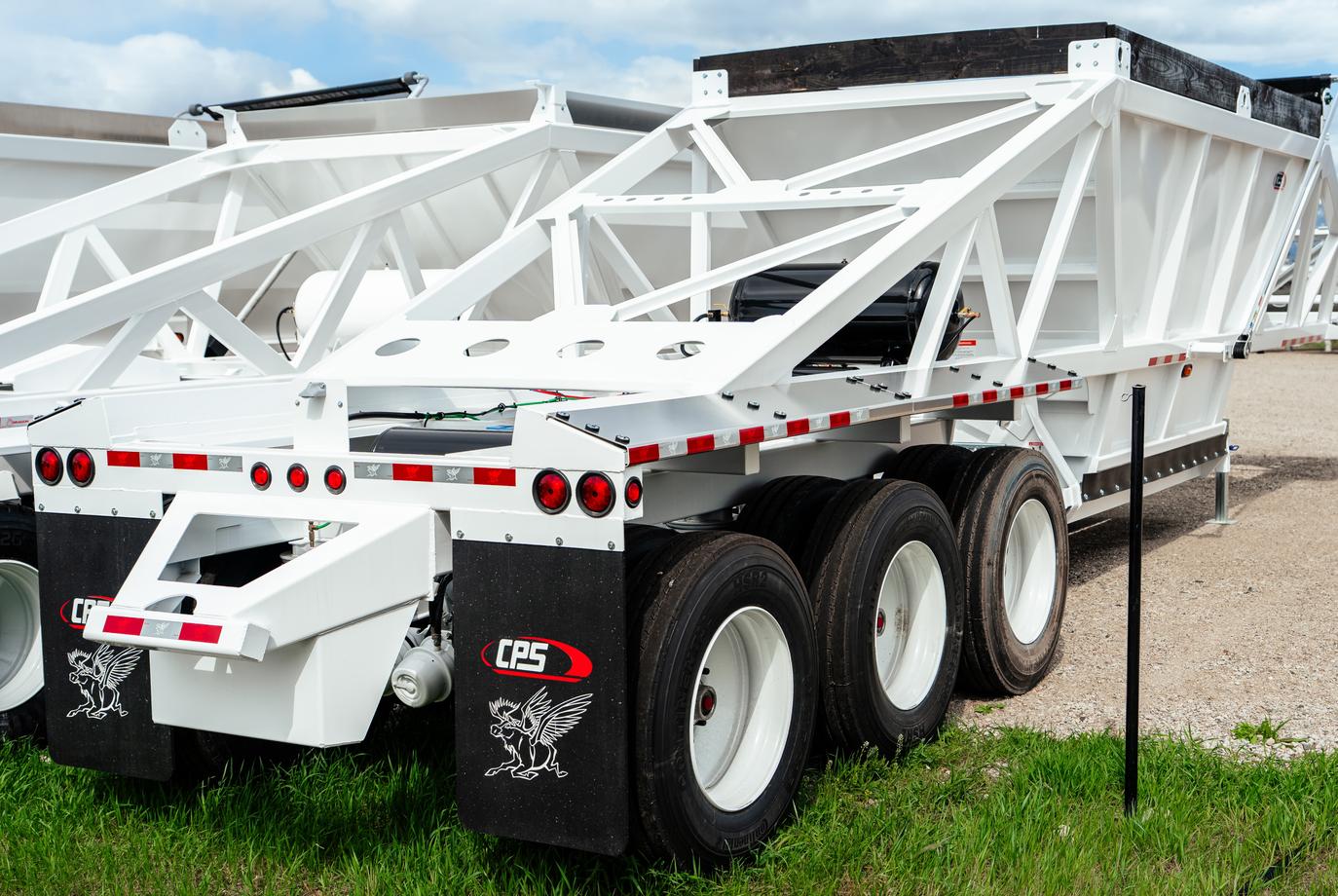

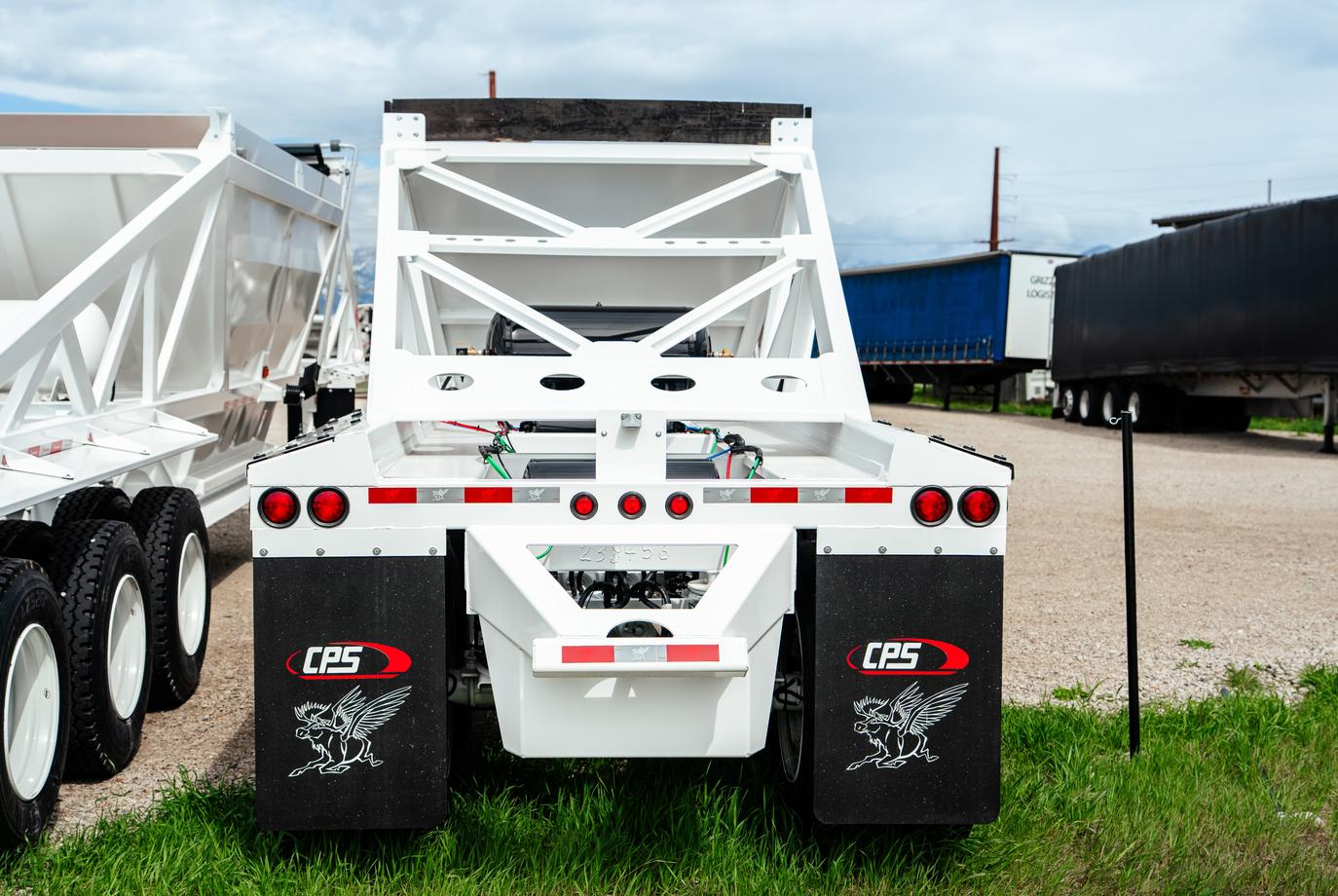

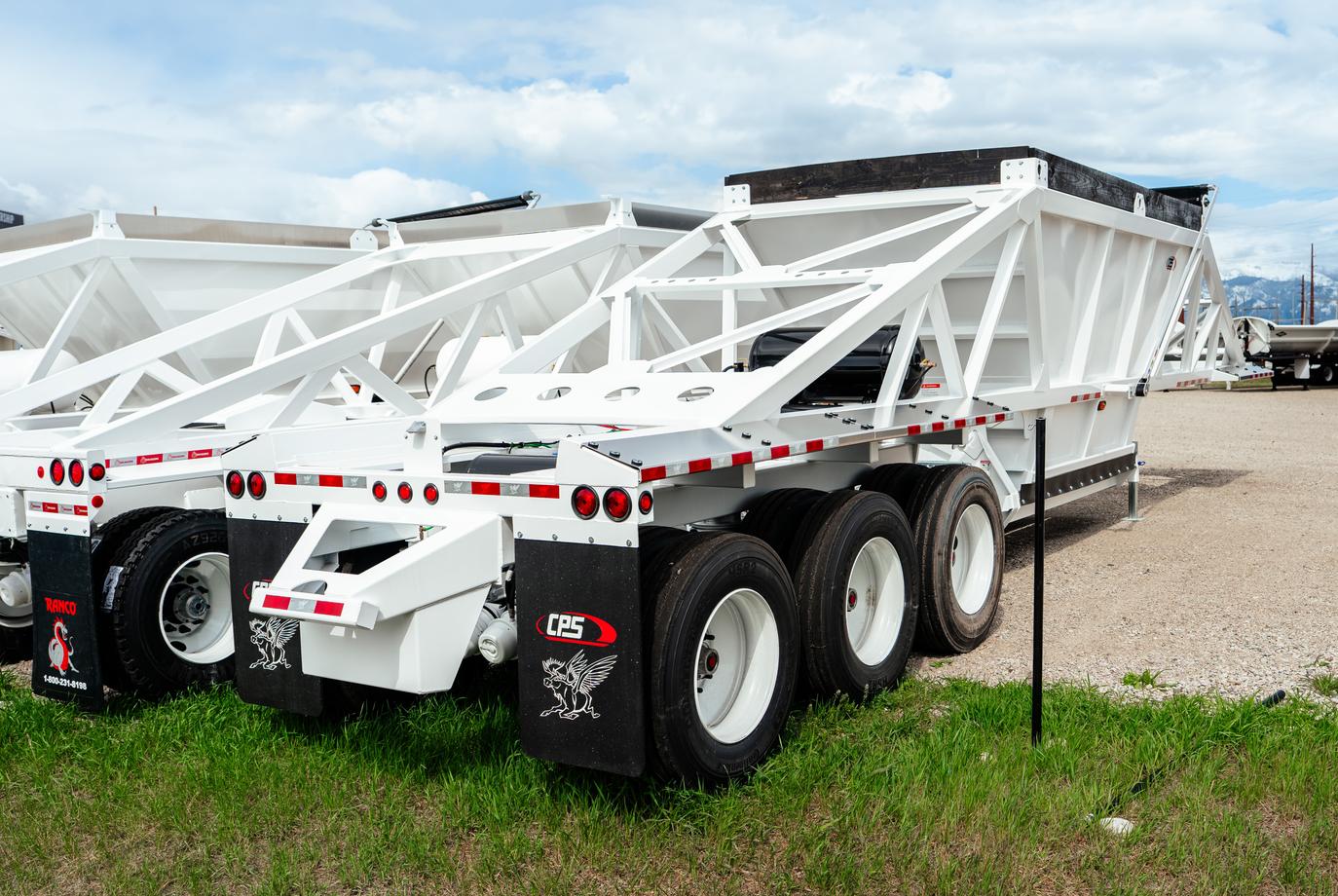

• Mudflap: FULL MUDFLAP ACROSS REAR
• Shed plates: SHED PLATES AT FRONT AND BACK
• Fenders: ALUMINUM FRONT AND REAR FEDNERS BOLTED FOR TANDEM
