CPS 4B240A200 Trailer

CPS 4B240A200 – Bottom Dump, 40'-0", 96"

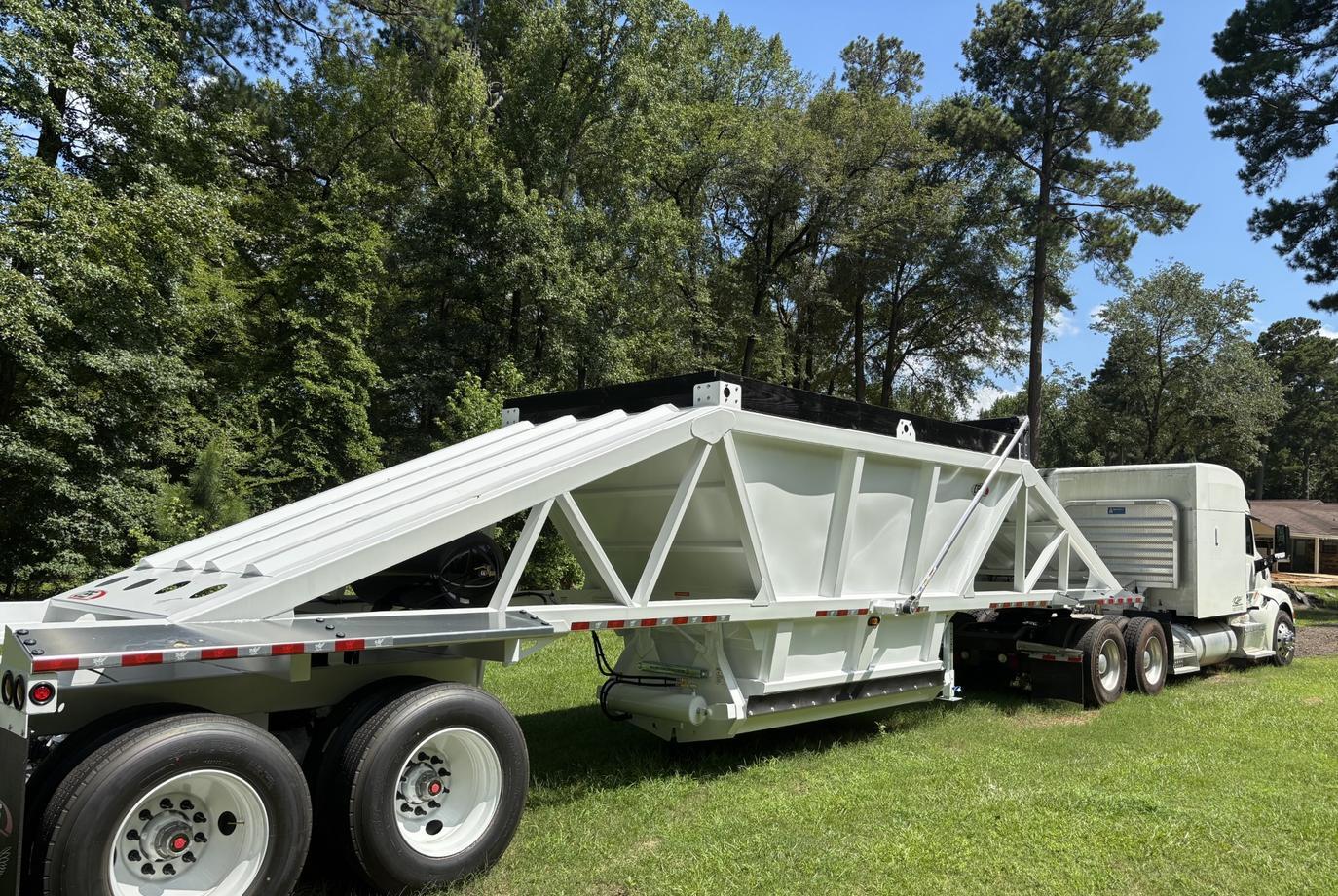

CPS 4B240A200 Bottom Dump with 20 CUBIC YARDS single hopper capacity and 96" width.

Key Specs

• Manufacturer: CPS
• Model: 4B240A200
• Category: Bottom Dump
• Capacity (single hopper): 20 CUBIC YARDS
• Capacity to top of bangboards: 23 YARDS TO THE TOP OF THE BANGBOARDS
• Length: 40'-0"
• Width: 96"
• Height: 10' WITH BANGBOARDS / 9' 1" WITHOUT BANGBOARDS
• Coupler Height: 48"

Tub Construction

• Upper Hopper: UPPER HOPPER 10 & 12GA (STANDARD LEIGHTWEIGHT)
• Lower Hopper: LOWER HOPPER 10GA (STANDARD LEIGHTWEIGHT)
• Opening: 54" X 108" OPENING
• Sides / Ends: SIDES 12GA, ENDS 10GA
• Door Material: 3/16 80W (STANDARD DOORS)
• Gate Style: COMMERCIAL GRADE STEEL WITH SLIDE LOCKS
• Bang Boards: WOOD BANG BOARDS
• Pushblock: WELDED PUSH BLOCK WITH CERTIFIED UNDER RIDE
• Bottom Rail: 4" X 6" X 3/16" HSLA TUBE
• Top Rail: 4" X 6" X 3/16" HSLA TUBE

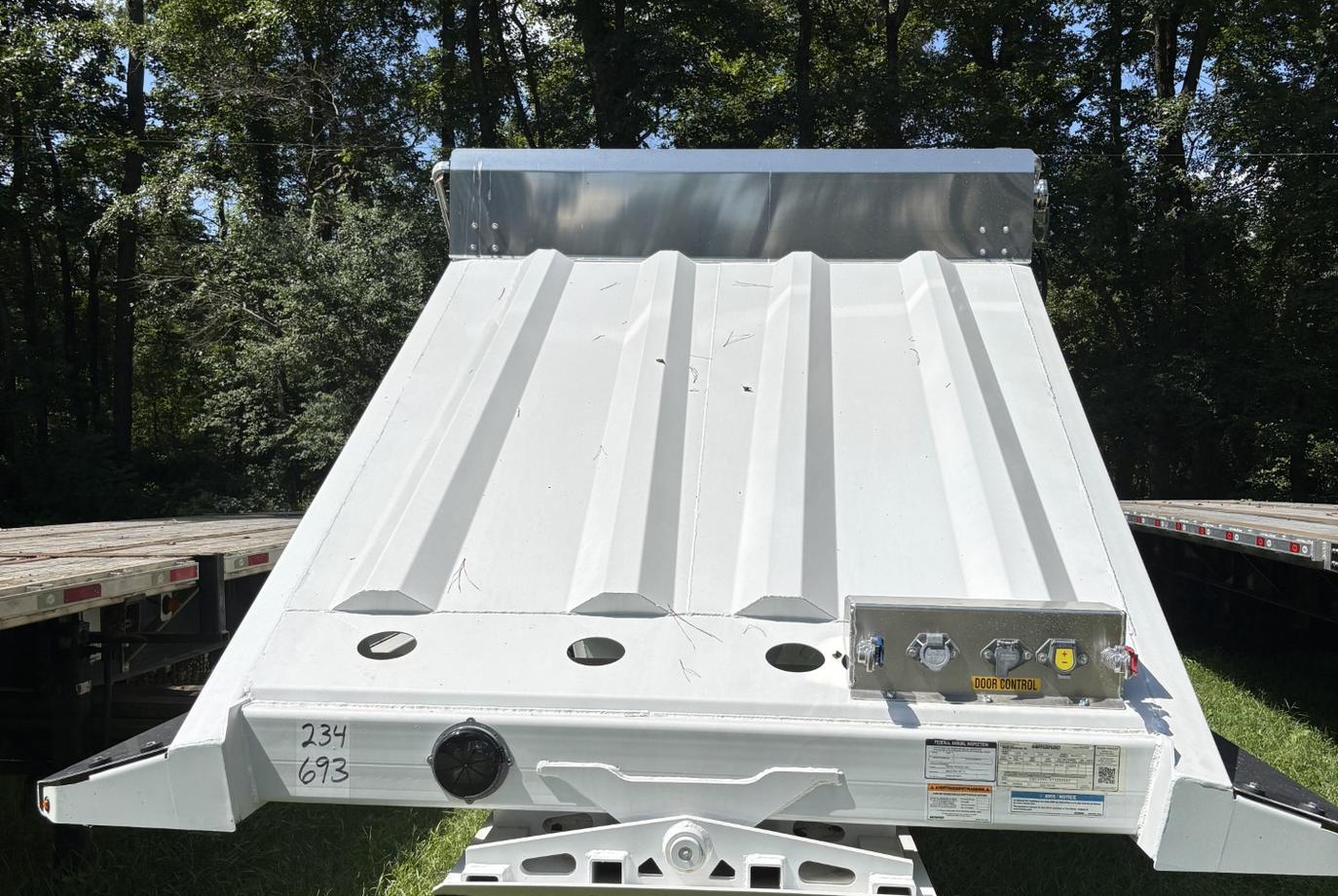

• Covers (front & rear): CPS, SLOPE SHED SHEETS WELDED AT FRONT AND BACK; PAINTED SAME COLOR AS UNIT; FULL MUDFLAP ACROSS REAR INCLUDED

Tarping System

• Tarp Style: CPS, TARP FLIP ELECTRIC MESH BLACK 16' (FOR 40') ROLL RITE TM400
• Manac #: 984 1799

Electrical

• Lighting: LED - ICC & DOT APPROVED SEALED BEAM LIGHTING SYSTEM
• Front Connector: 7 WAY (SAE J560)
• Additional Front Connector: 6 WAY - WIRED FOR GATE CONTROL
• Mid-Flashers: ONE LAMP INCLUDING SIDE MARKER AND FLASHER, EACH SIDE AT MIDDLE POINT, AMBER

Axles & Suspension

• Axle Qty: TANDEM
• Axles: HUB PILOTED 25K AXLES: 1ABS 1NON ABS 5" TUBULAR WITH HN SPINDLE
• Suspension: TANDEM AIR RIDE SUSPENSION
• Spread: 50"
• Track: 71.5" (96" WIDTH)
• Brakes: 16 1/2" X 7" CAM BRAKES
• Bearings: HM 218248 AND HM 212049
• Slack Adjusters: MERITOR, AUTOMATIC, 28 SPLINES
• Seals: STEMCO, "GUARDIAN" TYPE, WITH "GEARLUBE" MINERAL OIL, SAE 80W90
• Brake Chambers: T.S.E. BRAKE, "OMNIBRAKE" (30-30)
• Windrow Deflector: STANDARD DIRT DEFLECTOR (GALVANIZED)

Wheels & Tires

• Tire Size: 24.5 HUB PILOTED (PLANT CHOICE RADIALS) SUMITOMO ST727,H/16 PLY, 11R24.5
• Exterior Wheel: 11R24.5 16PLY W/STEEL WHEEL
• Interior Wheel: 11R24.5 16PLY W/STEEL WHEEL

Air System & Controls

• Air Cylinders & Reservoir: TWIN 8" BORE AIR CYLINDERS WITH 60 GALLON AIR RESERVOIR, FILTER, OILER AND QUICK RELEASE VALVE
• Gate Control: AIR CONTROLLED - ELECTRIC CONTROLLED FROM CAB OF TRUCK AND MANUAL FROM THE GROUND (VERSA VALVE HAND CONTROL)
• Air Valves (ABS): 2S1M TANDEM

Additional Features

• Landing Gear: DROP LEGS/STIFF LEG 4" X 4" SQUARE (GALVANIZED)
• Compliance Option: CALIFORNIA LEGAL (LIGHTWEIGHT)
• Full Mudflap: FULL MUDFLAP ACROSS REAR
• Shed Plates: SHED PLATES AT FRONT AND BACK
• Front Fenders: ALUMINUM FRONT AND REAR FENDERS FOR TANDEM
