CPS 4B240A200 Trailer

CPS 4B240A200 – Bottom Dump, 40'-0" x 96"

CPS 4B240A200 bottom dump with a lightweight tub; capacity 20 cu/yards single hopper (23 cu/yards to the top of bangboards), 40'-0" length and 96" width.

Key Specs

• Manufacturer: CPS
• Model: 4B240A200
• Category: Bottom Dump
• Length: 40'-0"
• Width: 96"
• Height: 10' with bangboards / 9' 1" without bangboards
• Coupler height: 48"
• Capacity: 20 cu/yards single hopper; 23 cu/yards to the top of bangboards

Tub Construction

• Upper hopper: Upper hopper 10 & 12GA (standard lightweight)
• Lower hopper: Lower hopper 10GA (standard lightweight)
• Opening: 54" X 108" - Sides 12GA, Ends 10GA
• Door material: 3/16 80W (standard doors)
• Gate style: Commercial grade steel with slide locks
• Bang boards: Wood bang boards
• Pushblock: Welded push block with certified under ride
• Bottom rail: 4" X 6" X 3/16" HSLA tube
• Top rail: 4" X 6" X 3/16" HSLA tube

Tarping & Electrical

• Tarp style: CPS, Tarp flip electric mesh black 16' (for 40') Roll Rite TM400 Bottom Dump application
• Manac #: 984 1799
• Main electrical system: LED - ICC & DOT approved sealed beam lighting system
• Front connector: 7 way (SAE J560)
• Additional front connector: 6 way- Wired for gate control
• Mid-flashers: One lamp including side marker and flasher, each side at middle point, amber
• Reflective tape: Conspicuity striping in compliance with FMVSS/ CMVSS 108; gray and red each side, fully covers rear sill and pushblock

Sub-structure & Coupling

• Fifth wheel: Oscillating fifth wheel with standard king pin
• King pin location: 18" (standard)
• Landing gear: Drop legs/Stiff leg 4" X 4" square (galvanized)
• Bracing & side walls: Front & rear K-bracing & side walls with 2 vertical side supports
• Front connection box: Aluminum front connection box

Finishing & Compliance

• Finishing (paint): Shot blasted, acid based wash with rust inhibitive rinse; one coat of epoxy primer and one coat polyurethane top coat
• Color: WHITE

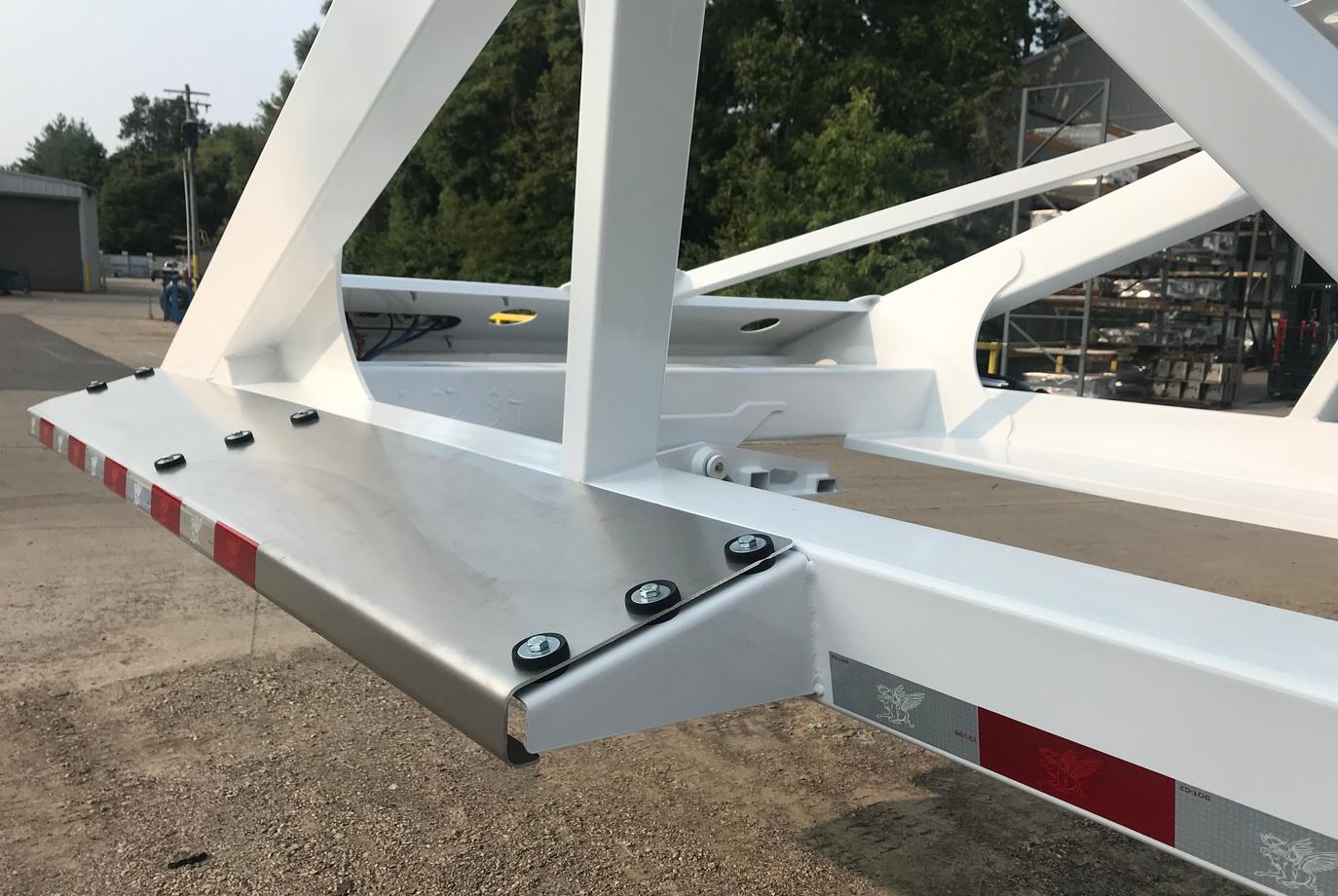

• Additional options: California legal (Lightweight); Full mudflap across rear; Shed plates at front and back; Aluminum front and rear fenders for tandem
• Conformity: This semi-trailer does not comply with GHG regulations; Manac may add modifications and costs if GHG regulations come into force prior to production and will notify dealer or customer a minimum of 3 months prior to assembly
