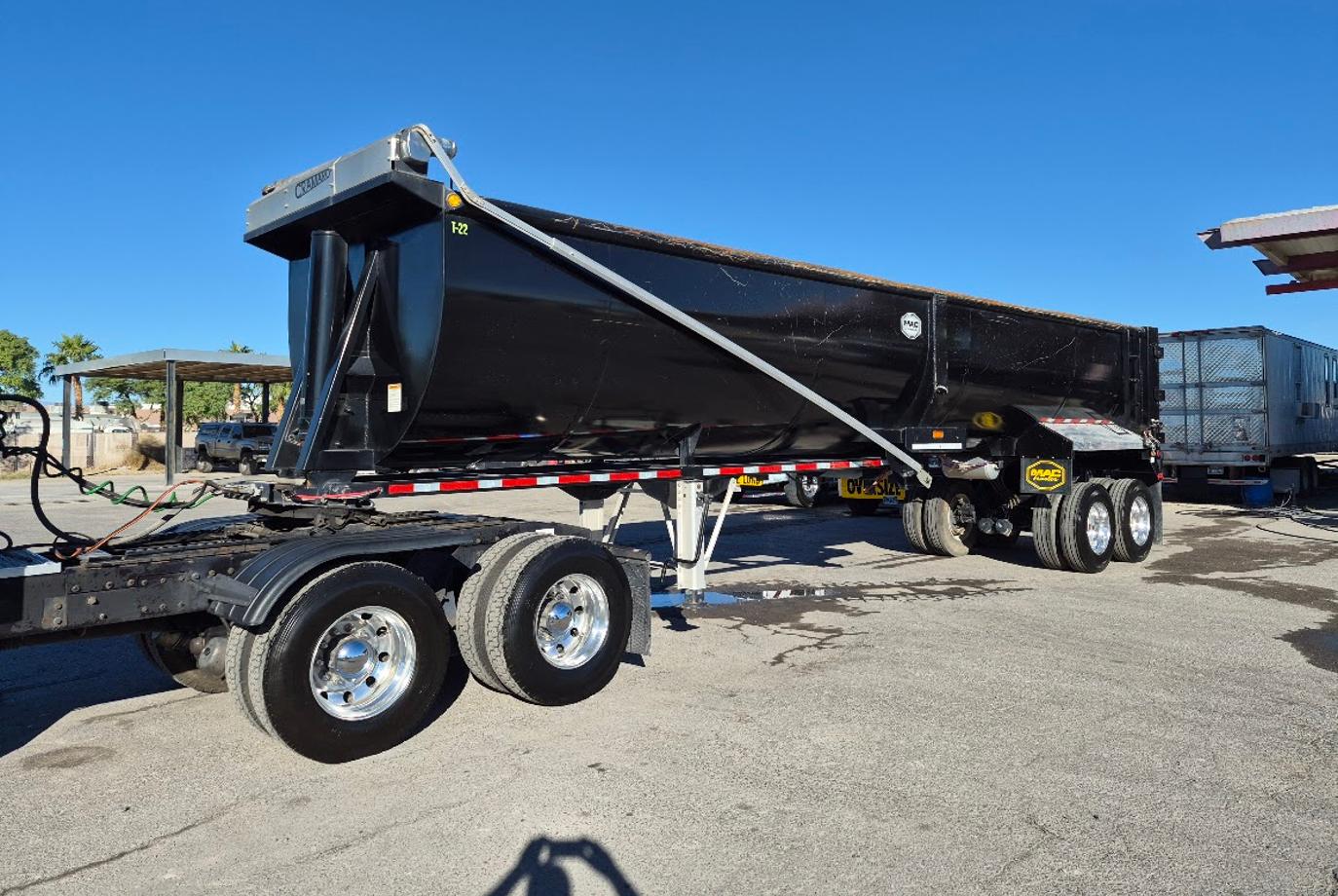

Mack WH WESTERN STEEL FRAMELESS HALF ROUND – End Dump, 49 CUBIC YARDS, HARDOX AR450
Mack WH WESTERN STEEL FRAMELESS HALF ROUND End Dump with 49 CUBIC YARDS capacity and HARDOX AR450 body material.
Key Specs
- Year: 2023
- Cubic yards: 49
- Length: 38
- Width: 96
- Body style: FULL RADIUS HARDOX AR450
- Wall height: 66
- Floor: 1/4 IN. FULL
- Floor material: HARDOX AR450F

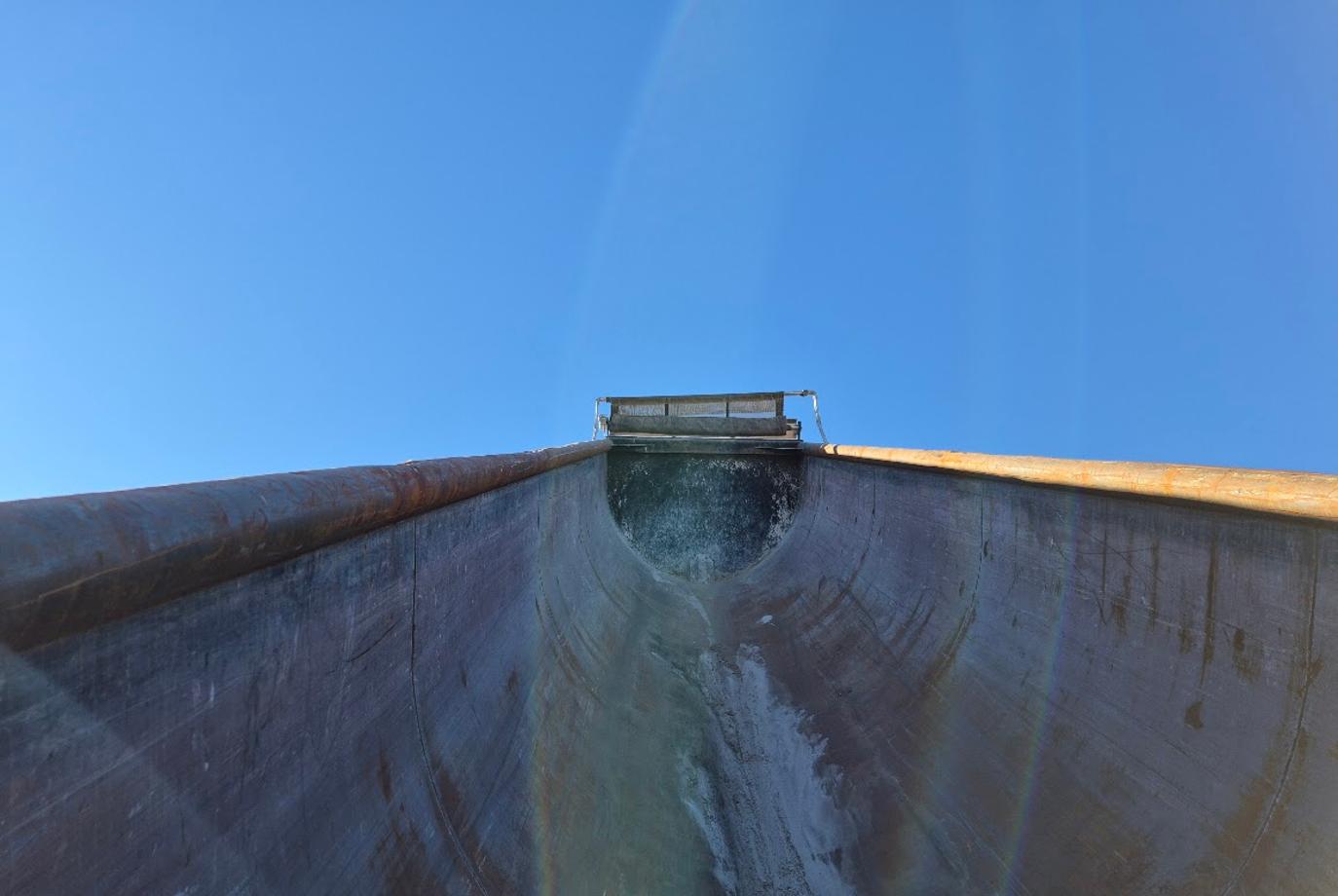

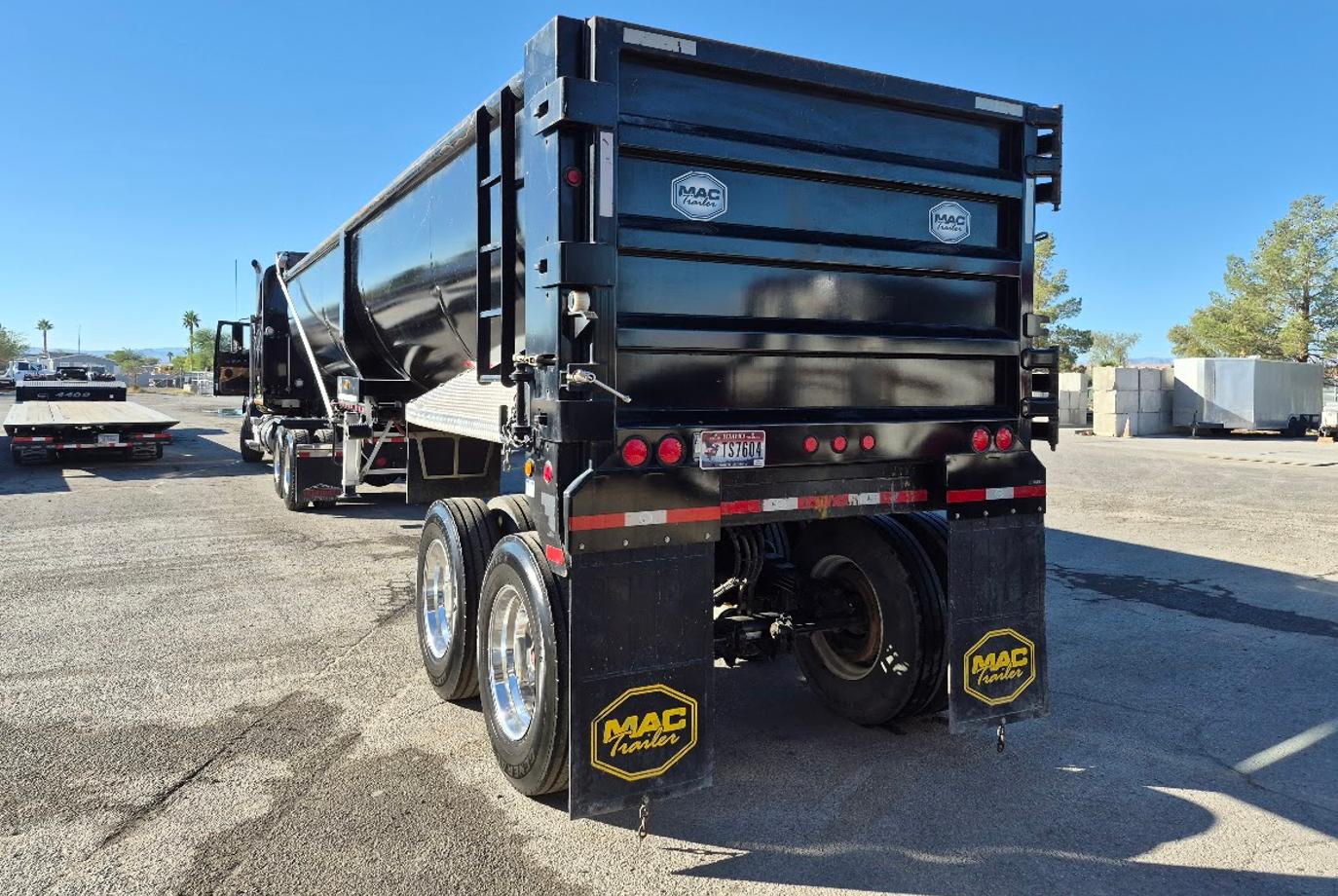

Tub Construction
- Body seams: STRAPS ON BOTTOM
- Top rail: 5 1/2 IN. PIPE
- Top rail option: SOLID
- Bolster: (1) BOLTER(s) 66” WH x 96” WIDE
- Rear skirts: ALUMINUM DIAMOND PLATE OVER SUSPENSION
- Gate sheet thickness: 3/16 IN. HARDOX AR450F
- Gate operation: MANUAL
- Hinge type: SIDE SWING ONLY
- Gate bracing: (4) PANEL
- Winders / safety latch: WINDERS (1) EACH SIDE (STEEL GATE)

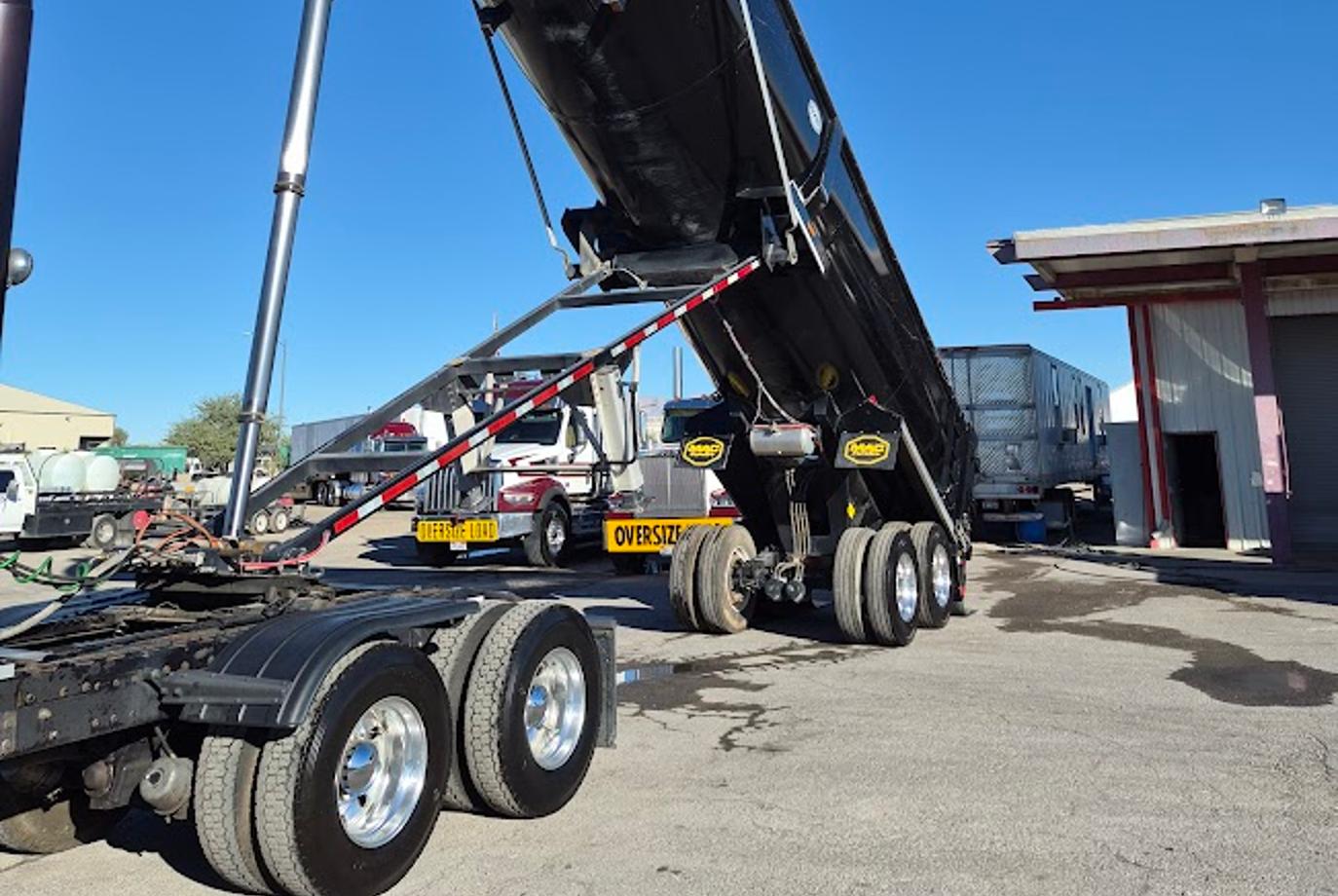

Hoist & Controls
- Hoist: 8-5-235 - CUSTOM KEEP ALL TIRES ON THE GROUND THROUGH THE DUMPING CYCLE
- Bulkhead type: INVERTED HOIST/FLAT FRONT
- Hydraulic hose fitting: 1 IN. X 108 IN. HOSE W/ MALE QUICK CONNECT (PARKER)

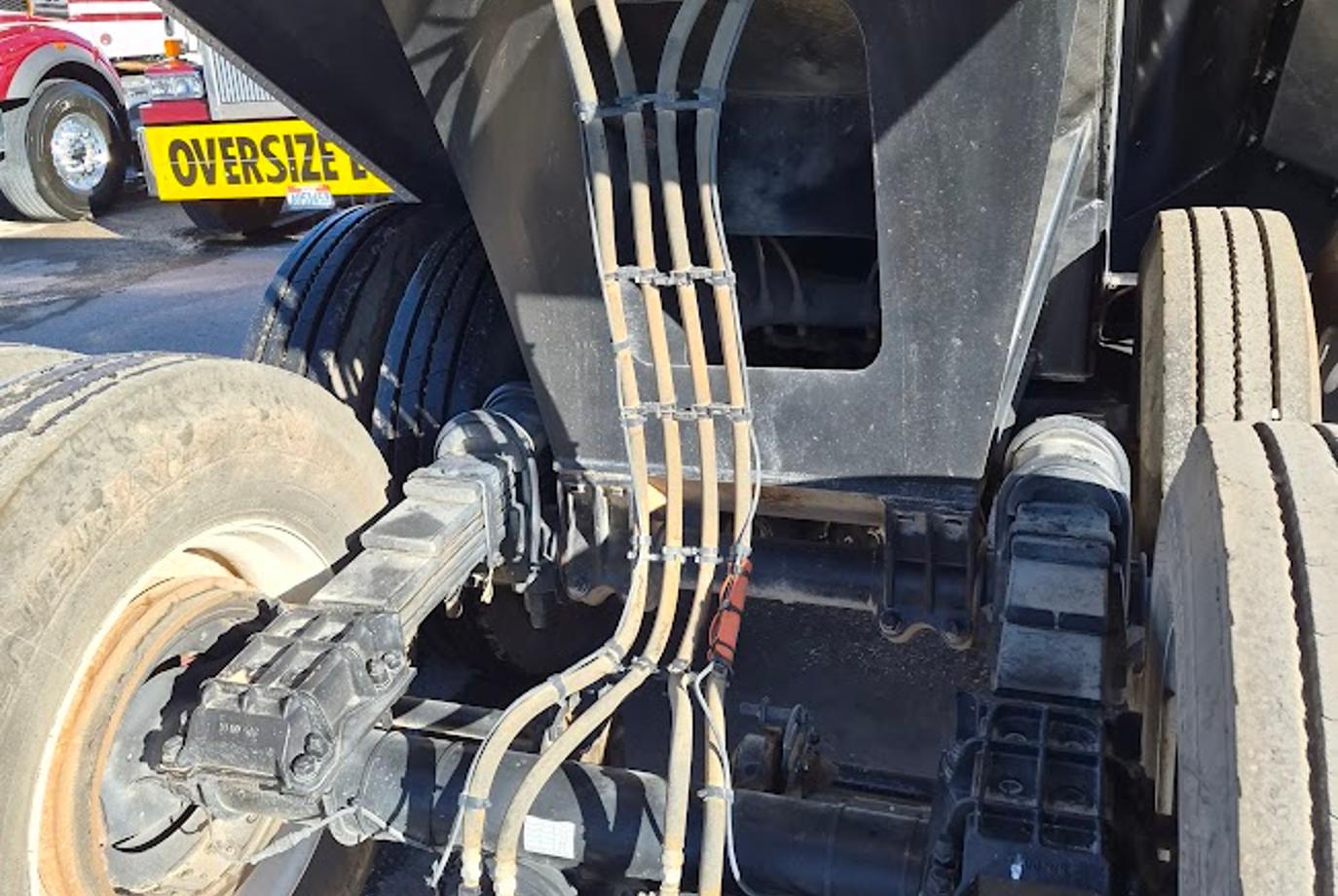

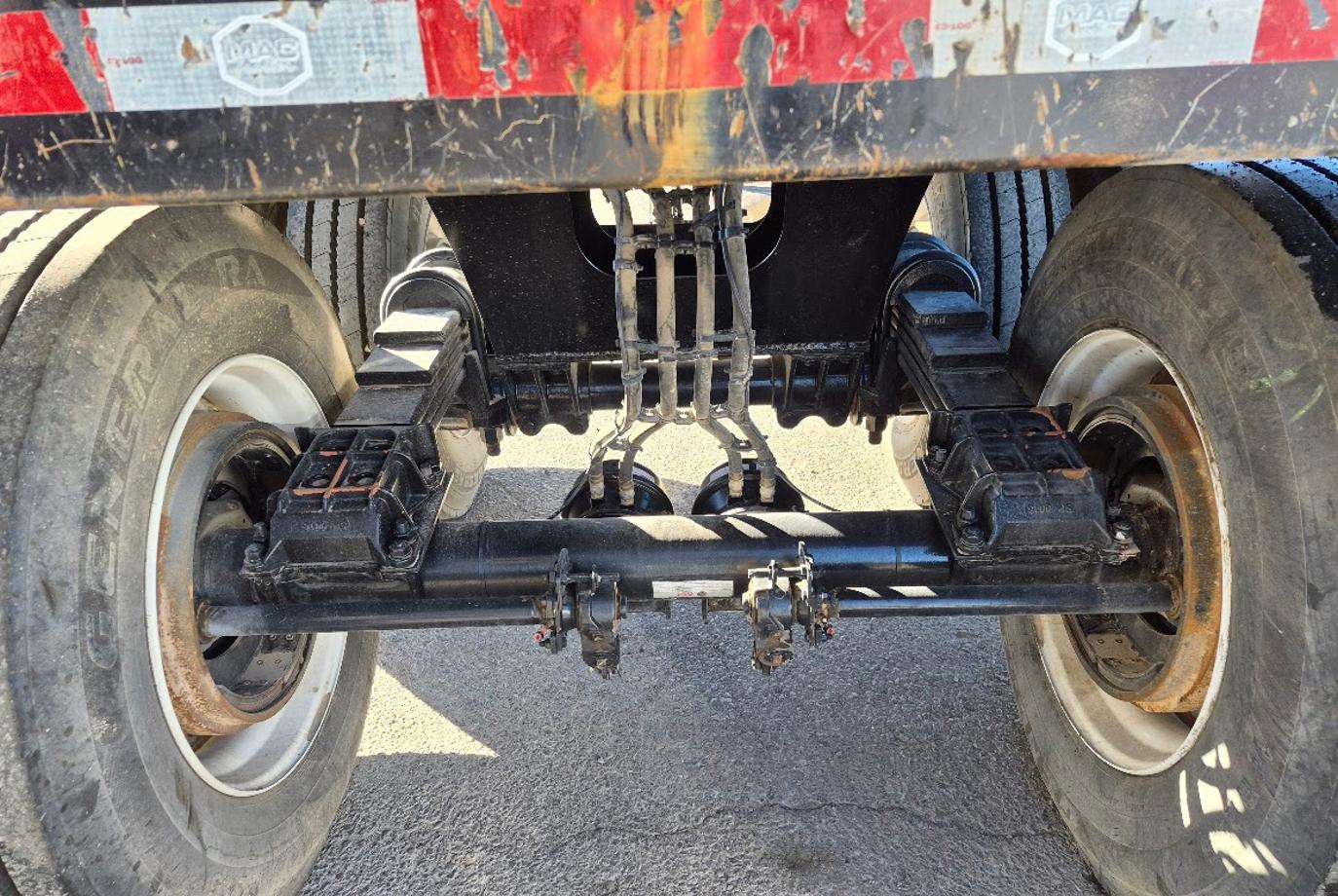

Axles & Suspension
- Primary axles model: CLOSED TANDEM
- No. of primary axles: 2
- Suspension: WATSON 50,000 SINGLE POINT - (LW SERIES)
- Axle spacing: 52
- Sub-frame: HIGH-PEDESTAL
- Axles: 71.5 IN., AXN 5/8 IN. WALL TP
- Brakes: 7 IN. XL, W/ 30-30 CHAMBERS
- Hub and drum: CAST W/ STEEL HUB HP 10 STUD TP, LS, 7 IN. LONG STUDS FOR FUTURE ALUM WHEELS
- Axle lubrication: OIL
Wheels & Tires
- Tires: GENERAL RA 11R 24.5 16 PLY
- Wheels: STEEL HP 24.5x8.25 - WHITE POWDER COATED
Lighting & Safety
- Front cab shield: 12 IN. CAB SHIELD
- Light type: GROTE L.E.D. W/ GROMMET
- Light panel: 2 LARGE - 3 SMALL - 2 LARGE LIIGHTS ON GATE
- Std. marker lights: 3 EACH SIDE
- Mid-turns: (1) PAIR L.E.D. (COMBO)
- Rear pocket lights: PAIR OF SMALL (MODEL 30)-GATE-
- Flaps front of tires: SHORT FLAP IN FRONT OF FRONT AXLE
- Flaps rear of tires: FLAPS REAR OF TIRES (MOUNTED ON GATE)
- ABS for trailer: (1) 4S2M MERITOR / WABCO
- Slacks: AUTOMATIC
Additional Features
- Side steps D.S.: STEEL LADDER AT REAR
- Side steps C.S.: STEEL LADDER AT REAR
- 5th wheel plate: BREAK-AWAY PIN
- 5th wheel plate height: 49 IN. HIGH
- Draft arm: 1/4 STEEL
- Dollies - landing gear: JOST AX-150 - (55,000 LB.) - 10 YEAR ALUMINUM - D.S. LANDING LEGS
- Air tanks: ALUMINUM TANK
- Tarp bracket: TARP CENTER BRACKET FOR FRONT TO BACK FLIP TARP
- Hangers: OTHER (NON GALVANIZED)
- Suspension color: BLACK PAINT
- Dollies: BLACK (931716)
- Hoist color: BLACK (931716)
- 5th wheel plate color: BLACK (931716)
- Body color: BLACK
- MAC decals: MAC DECALS BLACK
