Felling FT-70-2 OTR-L Trailer

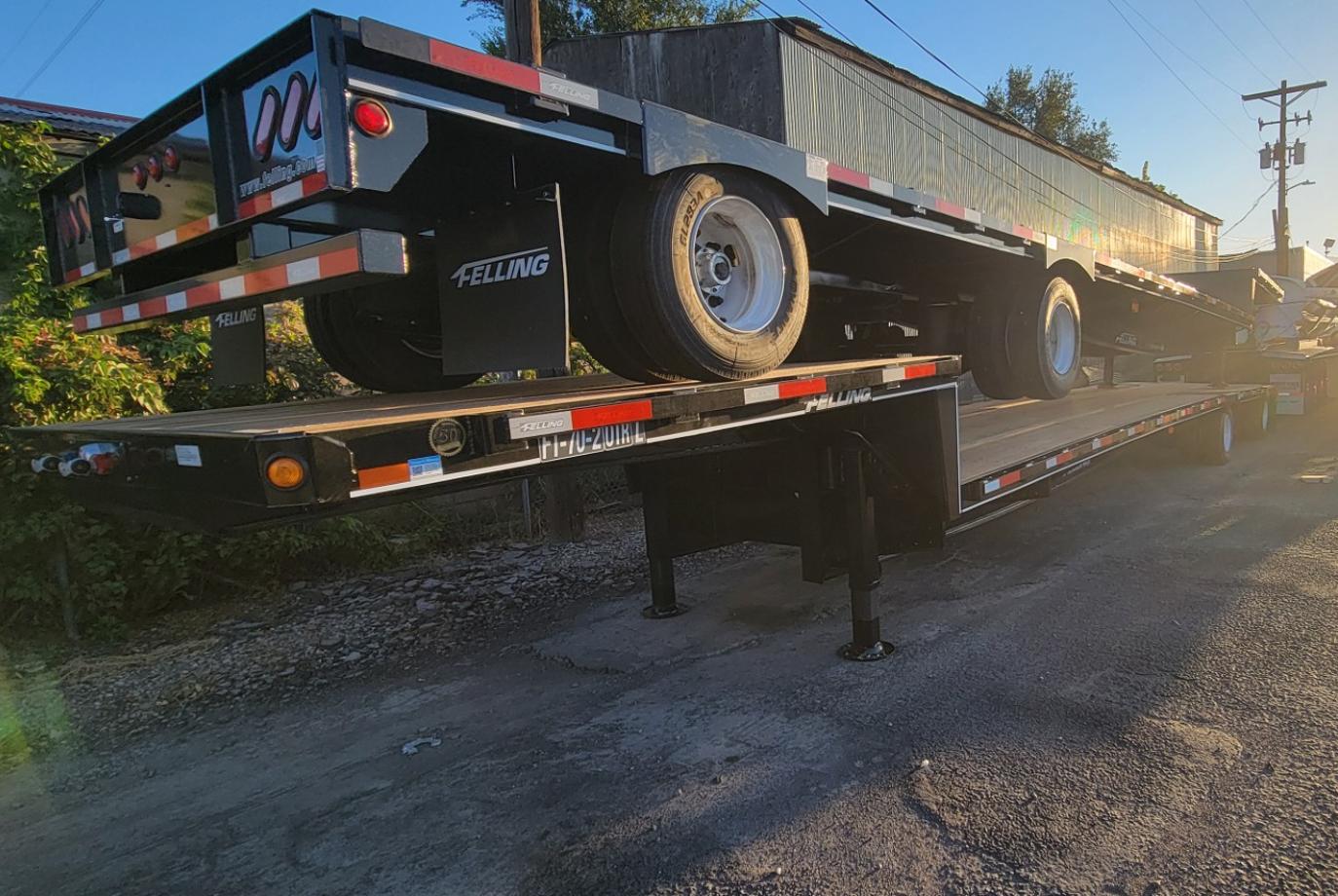

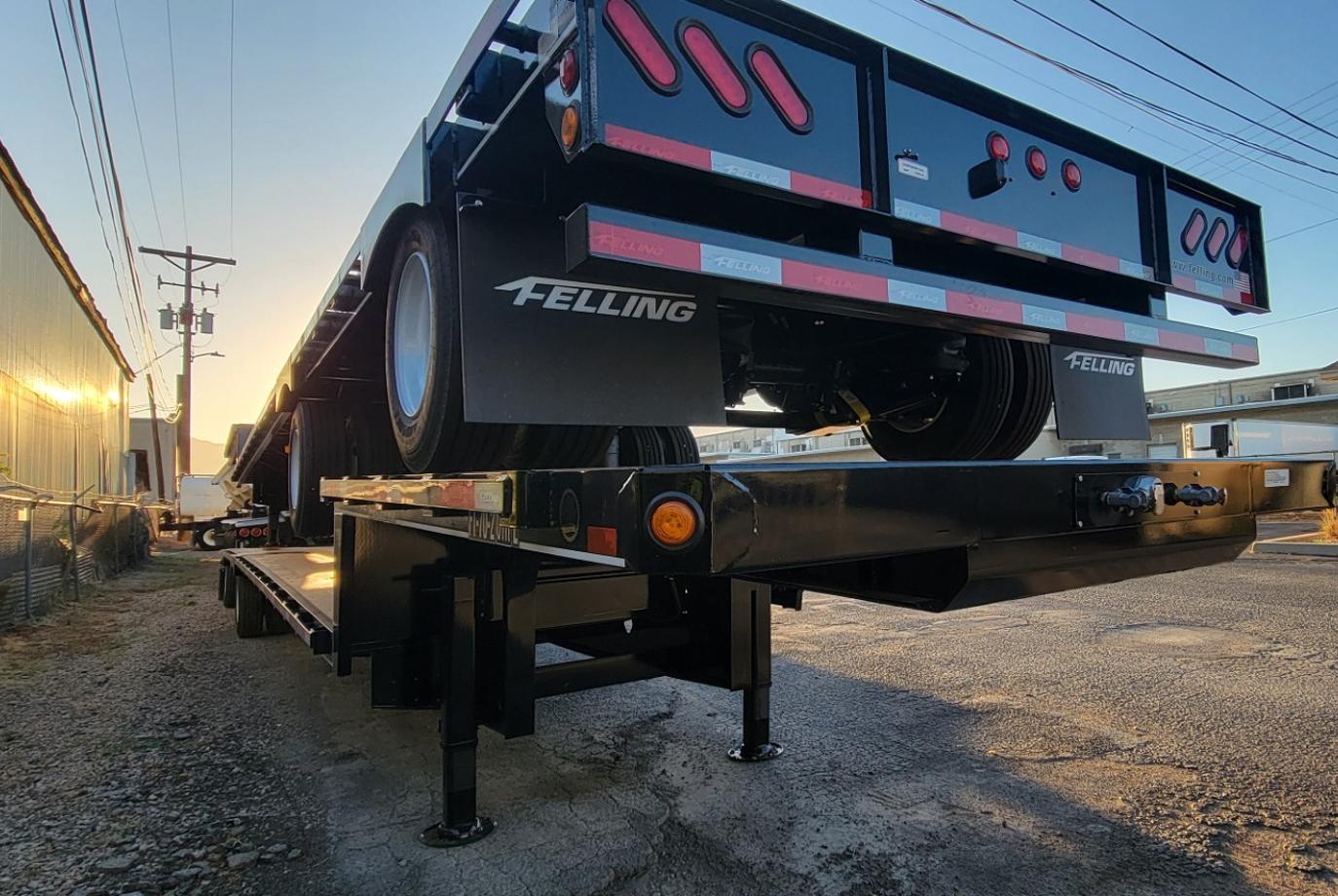

Felling FT-70-2 OTR-L – Step Deck, 48' OVL Length, 70,000 lbs Load Capacity

Felling FT-70-2 OTR-L Step Deck with 48' overall length and 70,000 lbs load capacity

Key Specs

• OVL Length: 48'
• Appx Wgt +/-: 12,500 lbs
• Load Capacity: 70,000 lbs Distributed- 45,000 In 10 ft- 41,500 lbs In 4 ft
• Deck Length: 38'
• GVWR: 82,500 lbs
• Width: 102" OD
• Appx Deck Height: 59" Upper Deck, 35" Main Deck, Loaded

Tub Construction

• Upper Deck: 90 Degree Neck

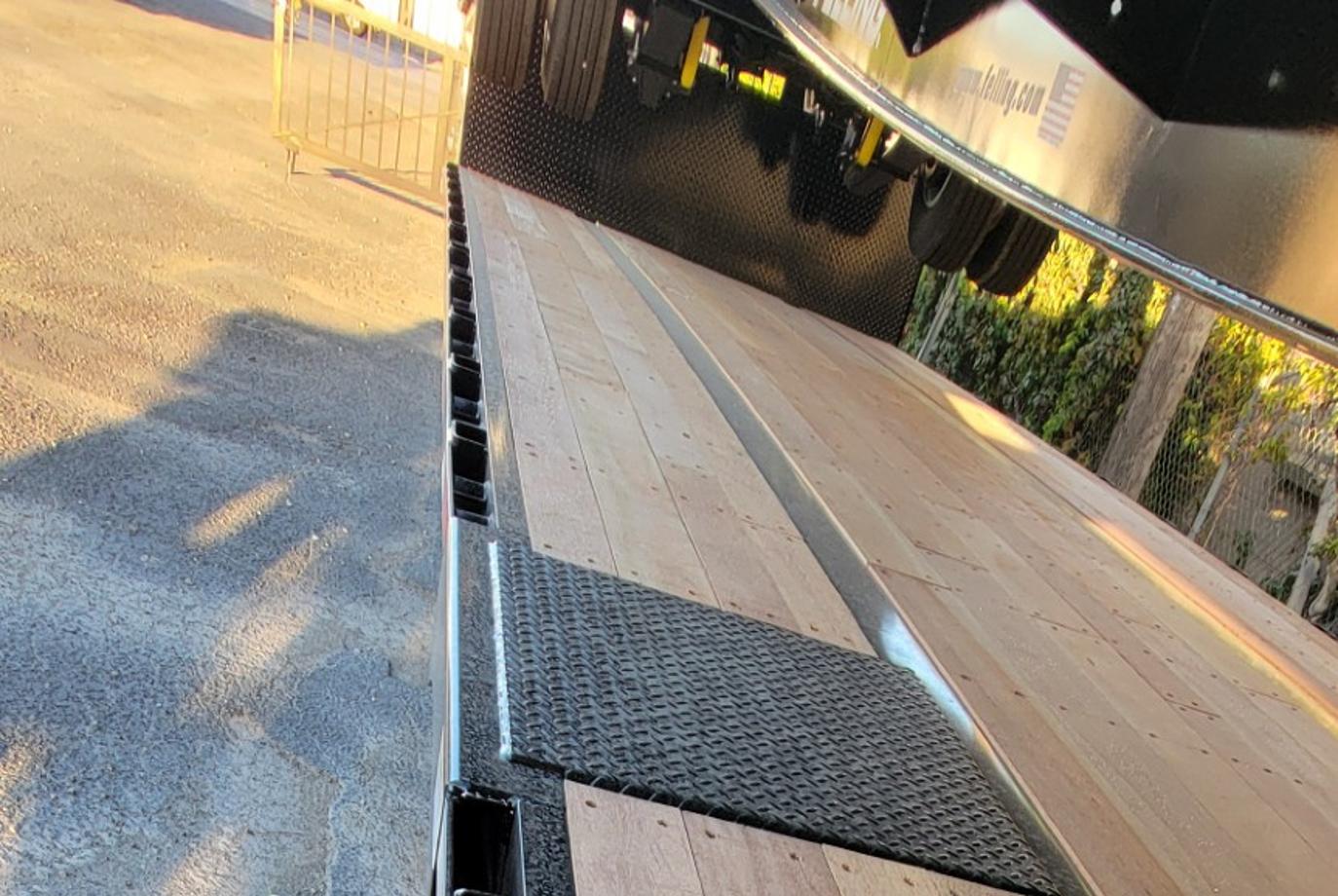

• Deck Type: Apitong, 1 1/8"

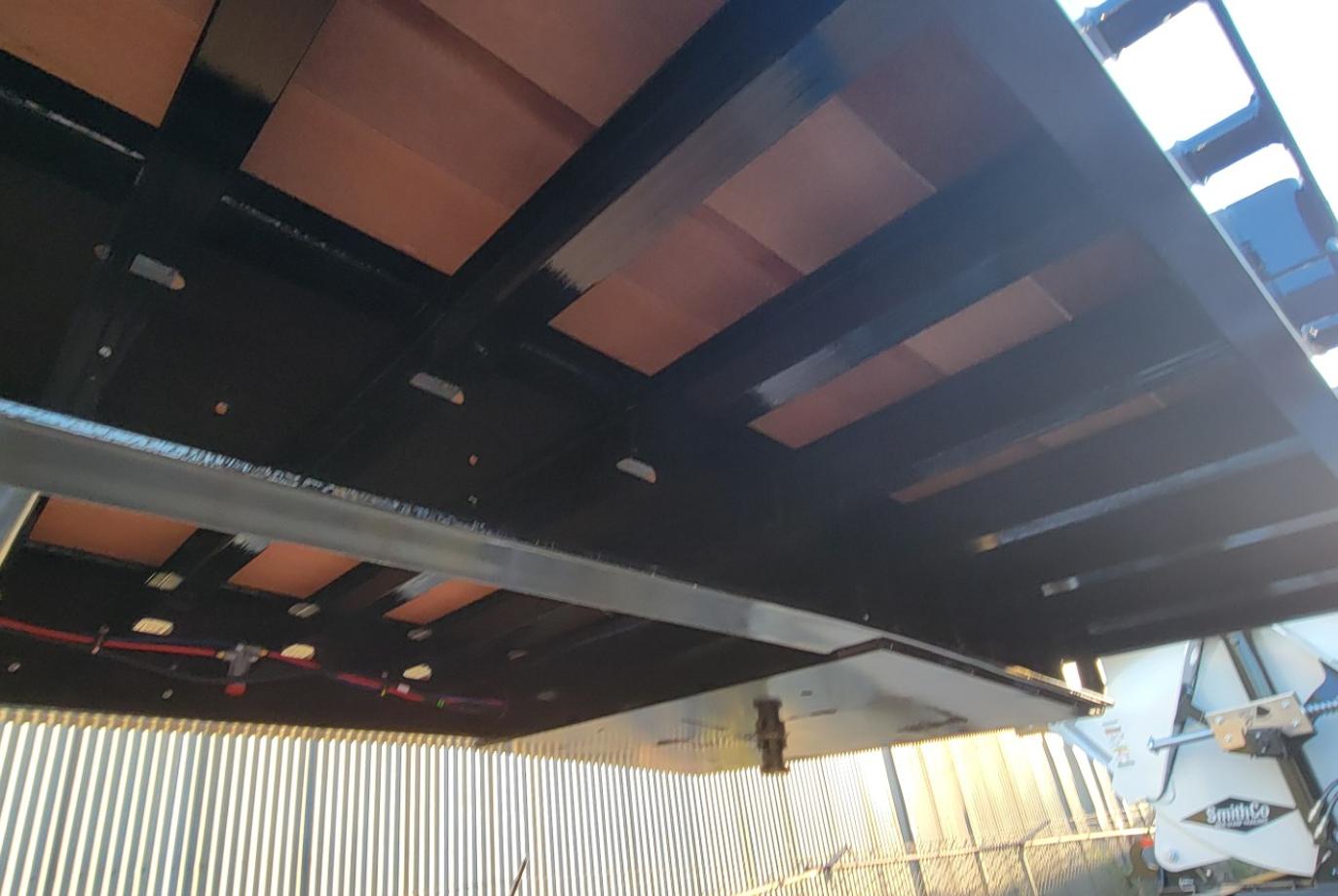

• Frame: Pierced 4" (80K) JR I-Beam Crossmembers, 12" On Center; Wheel Boxes

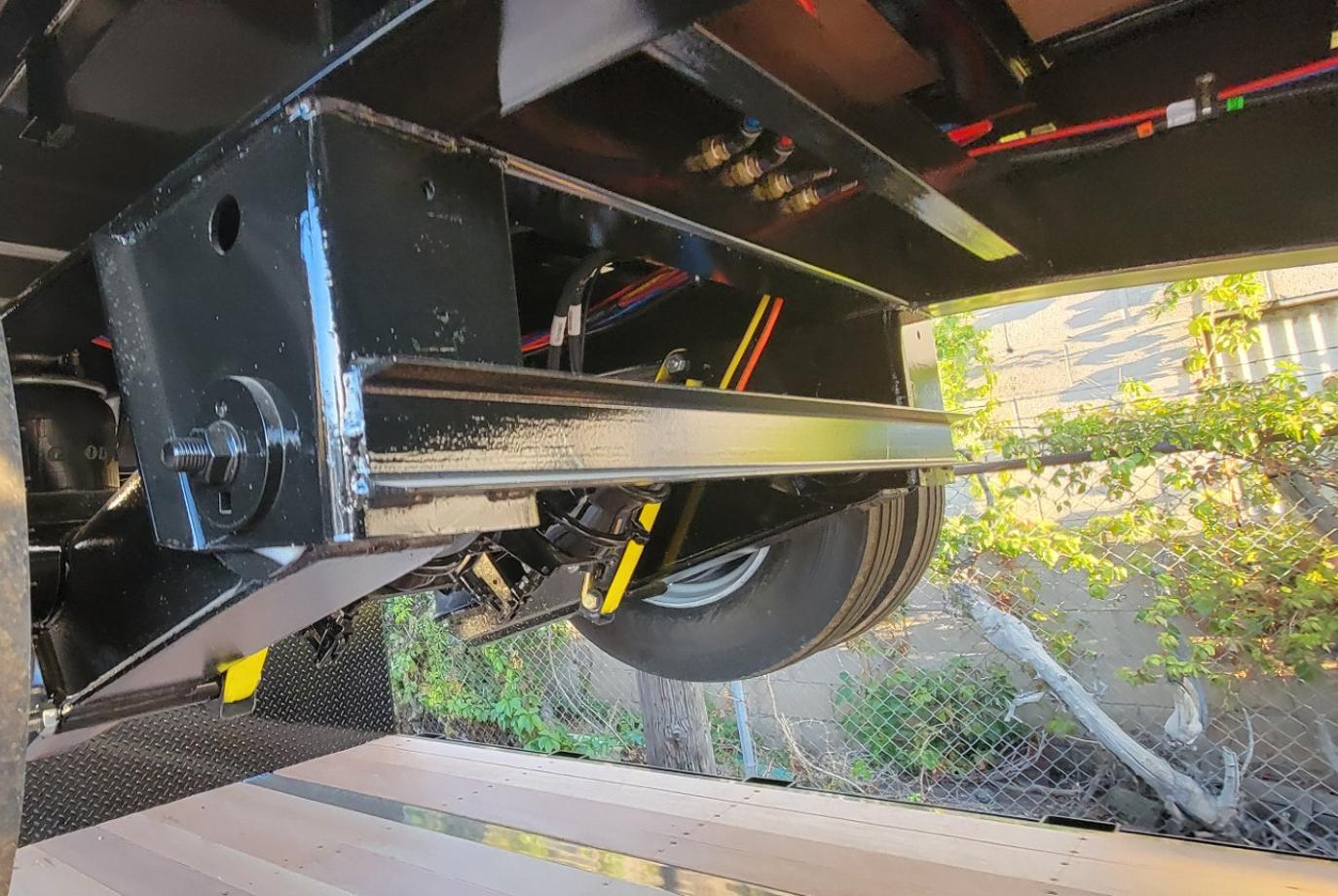

Axles & Suspension

• Axles: 25K Oil Bath

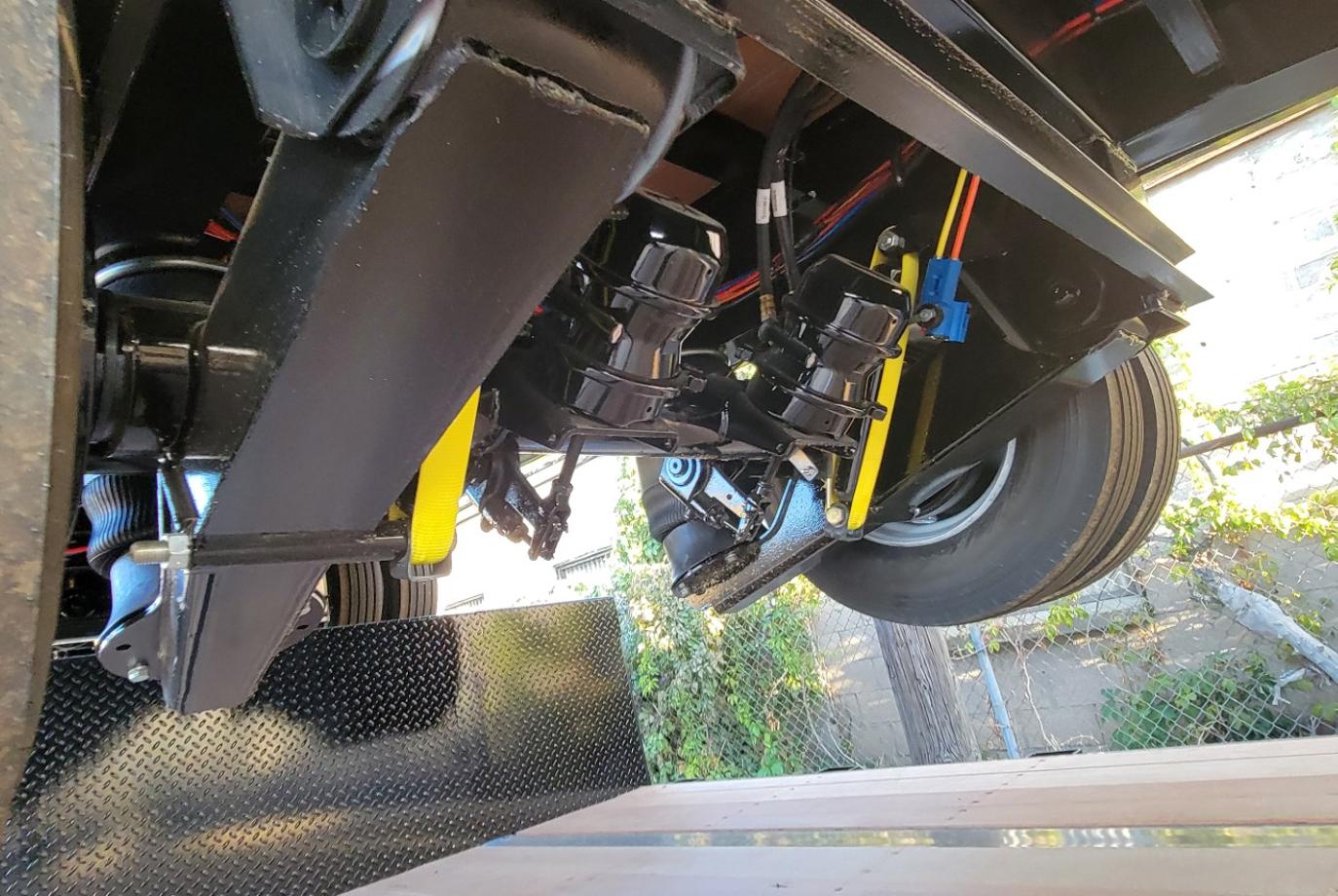

• Suspension: 10' 1" Spread, Ridewell 260 Air Ride With Dump Valve
• Brakes: Air, ABS 2S/1M, Meritor WABCO (Parking Brakes On All Axles)

Wheels & Tires

• Tires & Wheels: 235/75R 17.5 J, 8 Bolt [17.5 x 6.75] Hub Pilot

Hitch & Landing Gear

• Hitch Type: Semi King Pin [s] With 18" Setback, 48" Height
• Jack: 200,000# Twin 2 Speed, Holland Mark V (62,500 lb Lift Capacity)
• Plug: 7 Pole Semi Socket

Lighting & Safety

• Tie Downs: Rub Rail & Stake Pockets With Double Pipe Spools

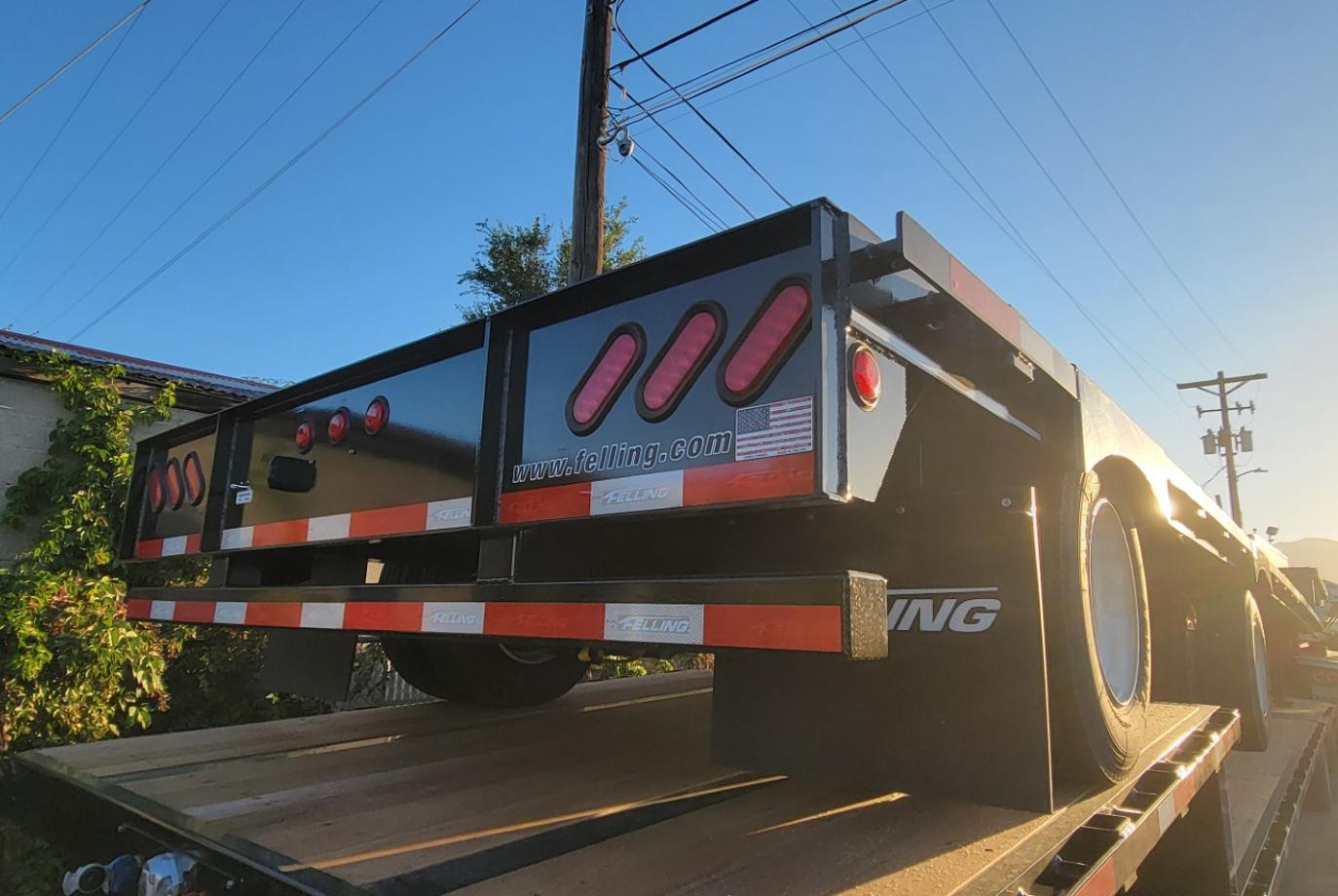

• Lights: LED Lights (Peterson), (3) Lights Per Side Deck, (3) Per Side Tailboard, Sealed Wiring Harness (Sealco)
• Trailer Color: Felling Black
• Stripe Color: White
• Standard: Ready For A 60" Chain Box On Both Sides, Located Behind Dollies
• Standard: Document Holder
