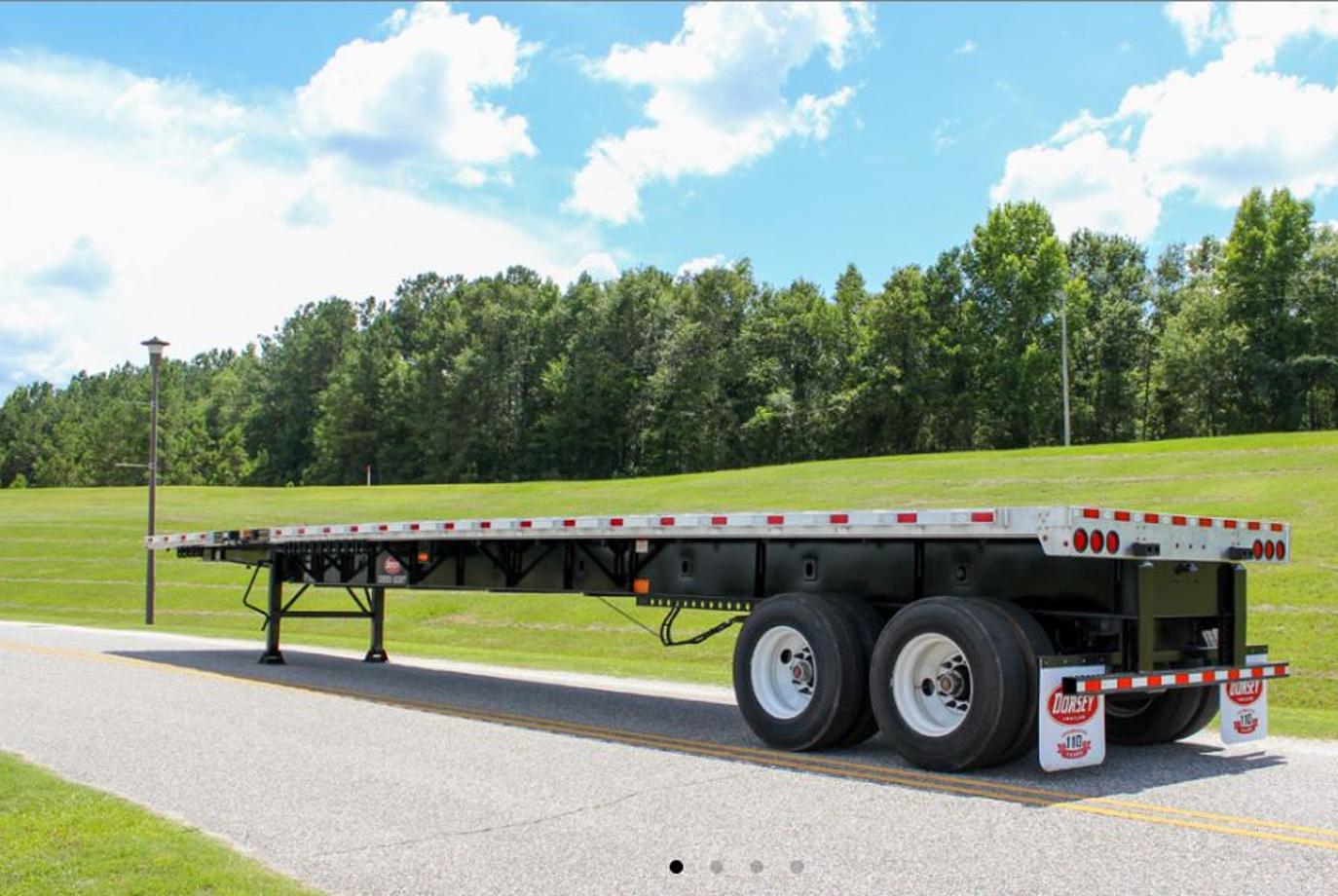

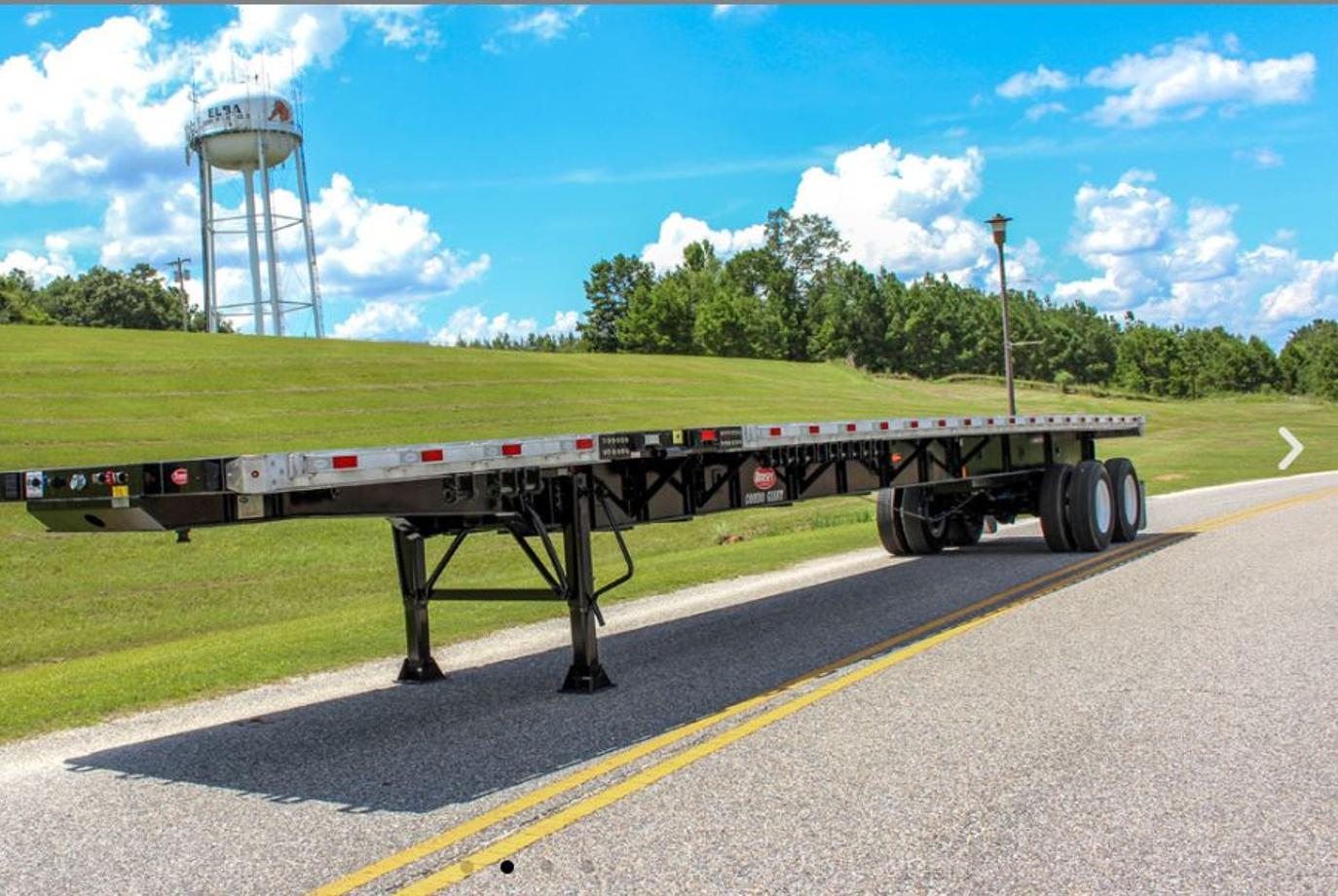

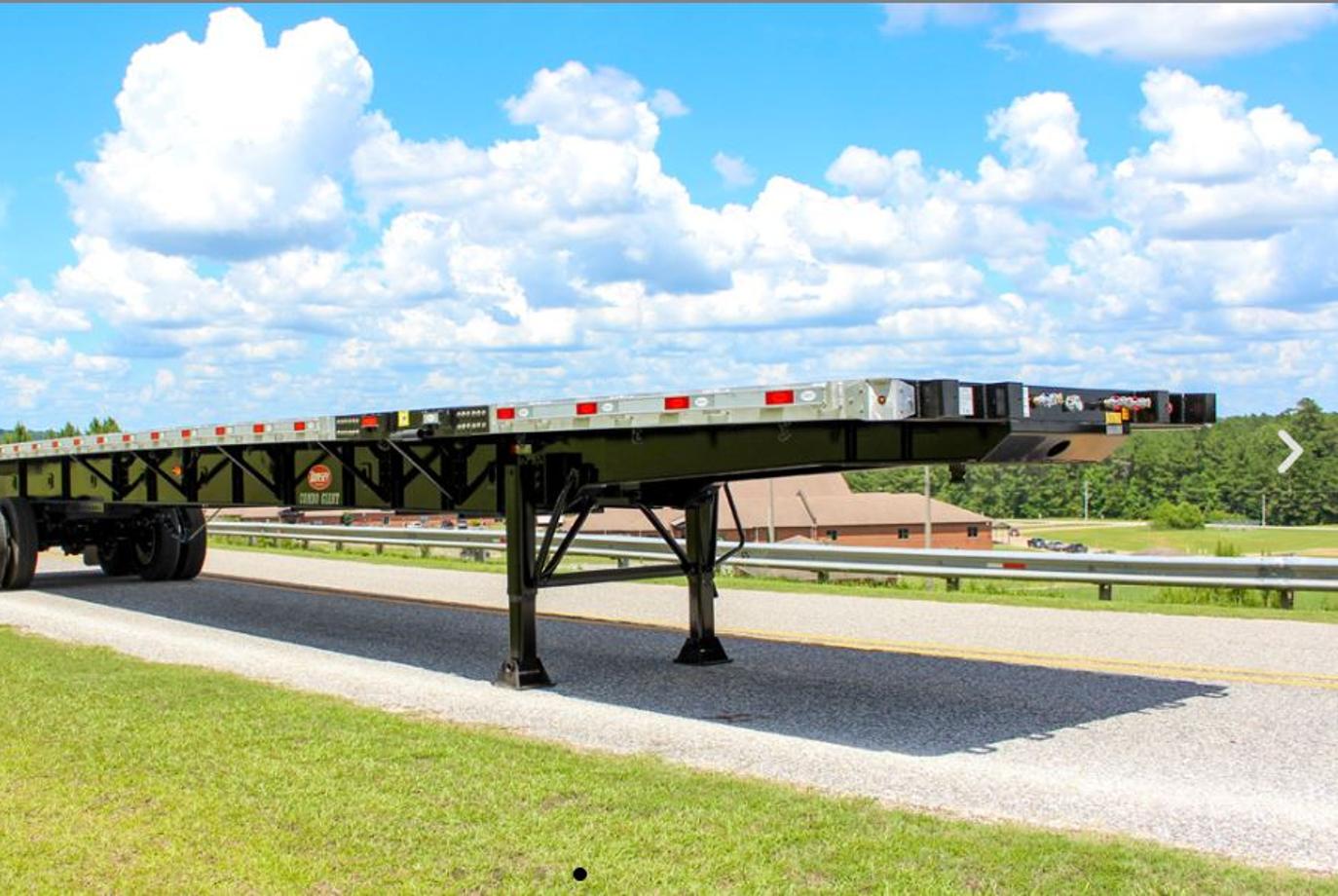

Dorsey EF48-CUSTOM Trailer

Dorsey EF48'-CUSTOM – Flatbed, 48' - 80' EXTENDABLE, 80,000 GVWR

Dorsey EF48'-CUSTOM flatbed, 48' - 80' EXTENDABLE with STANDARD BEAM PKG – 80,000 GVWR

Key Specs

• Capacity: STANDARD BEAM PKG – 80,000 GVWR (60,000 IN 10' SPAN)
• Overall Length: 48' - 80' EXTENDABLE TRAILER
• Overall Width: 8' 6"
• King Pin Setting: 24"
• Upper Coupler Plate: ¼"
• Upper Coupler Height: 48"
• Bulkhead: NONE
• Paint: BLACK

Tub Construction

• Main Frame: 26" FAB. - OUTER & 17" FAB. INNER – ½" x 6" TOP & BOTTOM. FLANGES – ¼" WEBS
• Inter-frame Cover: 1/8" SMOOTH STEEL PLATE
• Side Rails: 6" - ALUM-EXTRUDED W/ DOUBLE L TRACK *COMBO SPEC – ALUMINUM SIDE RAILS & COMBO FLOORING*
• Floor Sills: 4" STEEL I-BEAM 12" O.C. STD PKG CAPACITY
• Floor Decking: 1-1/8" HEAVY DUTY EXTENDED ALUMINUM W/ (2) APITONG NAILERS
• Winch Track: ALUMINUM – ENTIRE LENGTH OF DRIVER SIDE
• Rub Band Steel: 3/8" x 3" RECESSED FOR DOT TAPE
• Pipe Spool: TRIANGULAR SHAPED
• Stake Pockets: 24" O.C. SIDES & 5 ACROSS FRONT, 5 ACROSS REAR
• Dock Bumpers: RUBBER INBOARD

Hydraulics & Control

• Winches: 12
• Straps: NONE
• Dump Valve: ELECTRIC WIRED THRU AUX 7WAY PLUG @ FRONT OF TRAILER – DUMP REAR AXLE (+9#)
• Landing Gear: TWO SPEED – JOST A500

Axles & Suspension

• Suspension: AIR RIDE – HENDRICKSON 23K – 2Ax – R.A.S.
• Suspension Location: R.A.S. CAL LEGAL (CENTER OF KP TO CENTER OF REAR AXLE 40' IN CLOSED POSITION)
• Axles: (2) 25K CAPACITY – TYPE 30 CHAMBERS – AUTO SLACKS – ABS
• Axle Spacing: RAS – 49" CLOSED & 10' 2" SPREAD OPEN
• Lift Axle: NONE
• Parking Brakes: ALL AXLES
• ABS System: WABCO ABS SYSTEM 2S/1M
• Dust Shields: NONE
• Scales: NONE

Wheels & Tires

• Wheels: DISC – HUB PILOTED – 22.5 STEEL
• Tires: 295/75R 22.5 FIRESTONE
• Tire Carriers: NONE
• Mud Flaps: ANTI-SAIL MUD FLAPS BEHIND REAR AXLE

Additional Features

• Toolbox Material: ALUMINUM –SMOOTH
• Toolbox Type: 24Hx24Dx60L – ALUM BOX – BARN STYLE DOUBLE DOOR – SMOOTH ALUM DOOR (CAM LOCK)
• Toolbox Location: DRIVER SIDE – BEHIND LANDING GEAR

Lighting & Safety

• Lights: SEALED WIRING HARNESS – 2 MICROS PER SIDE & MID TURN – 3/3/3 REAR
