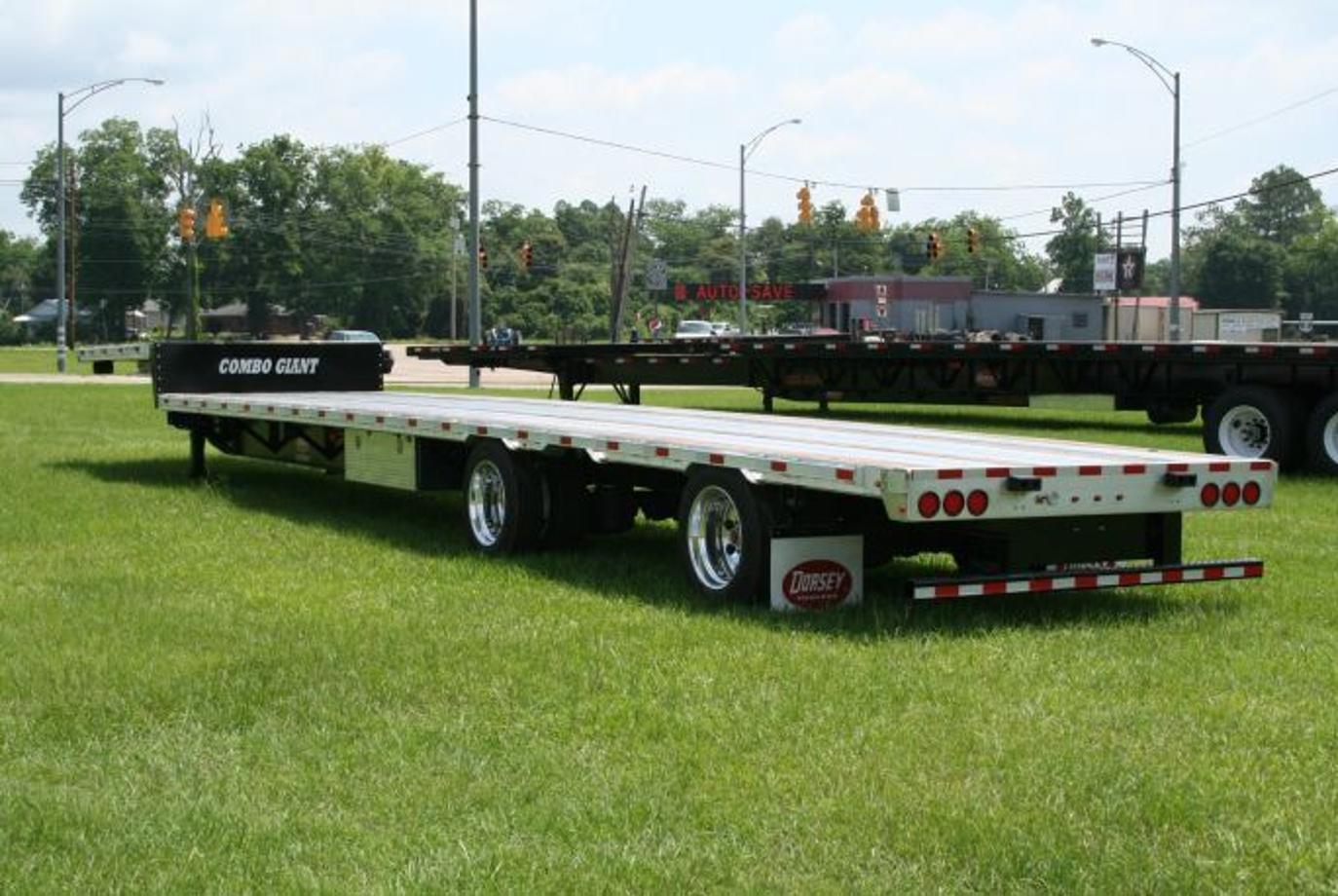

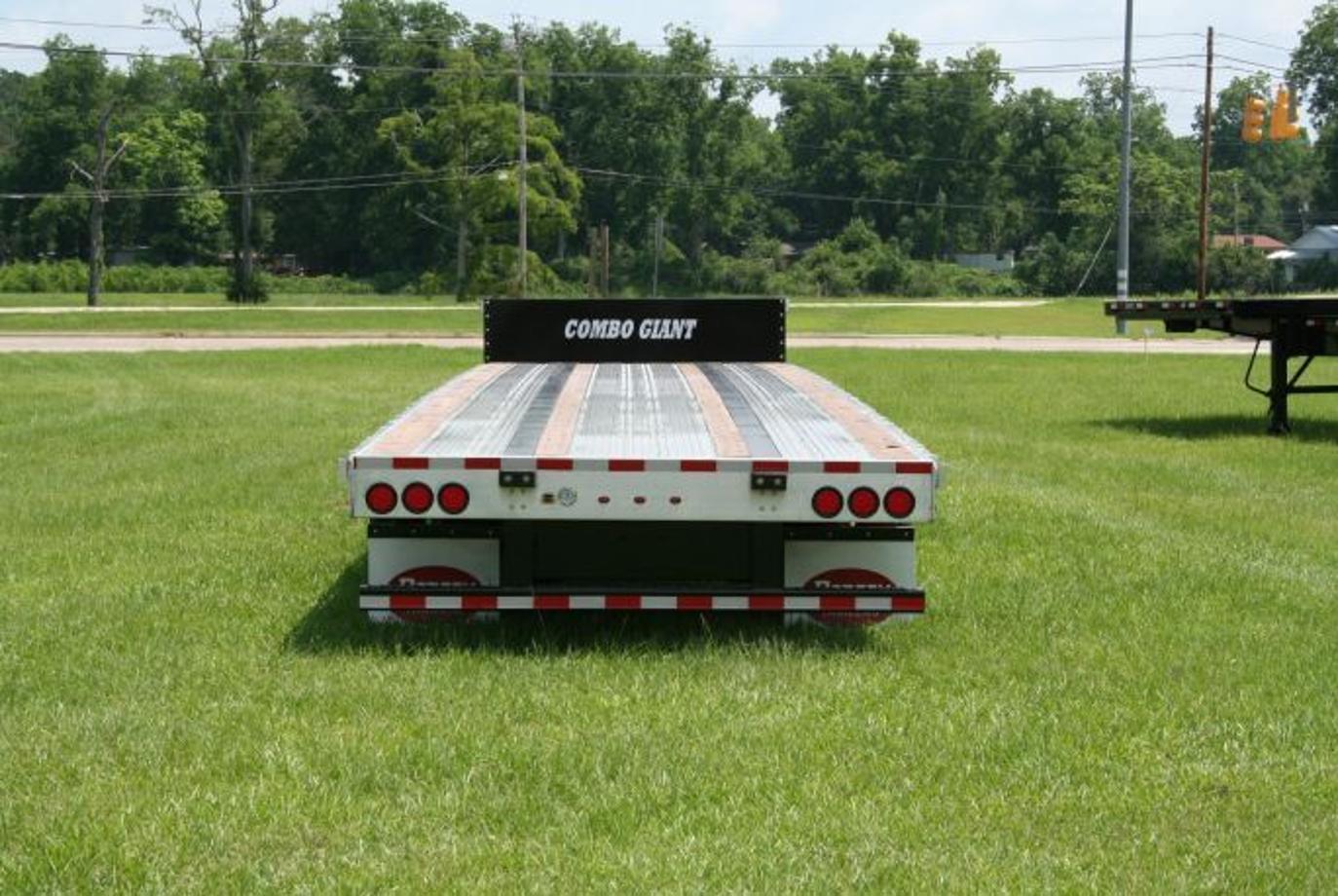

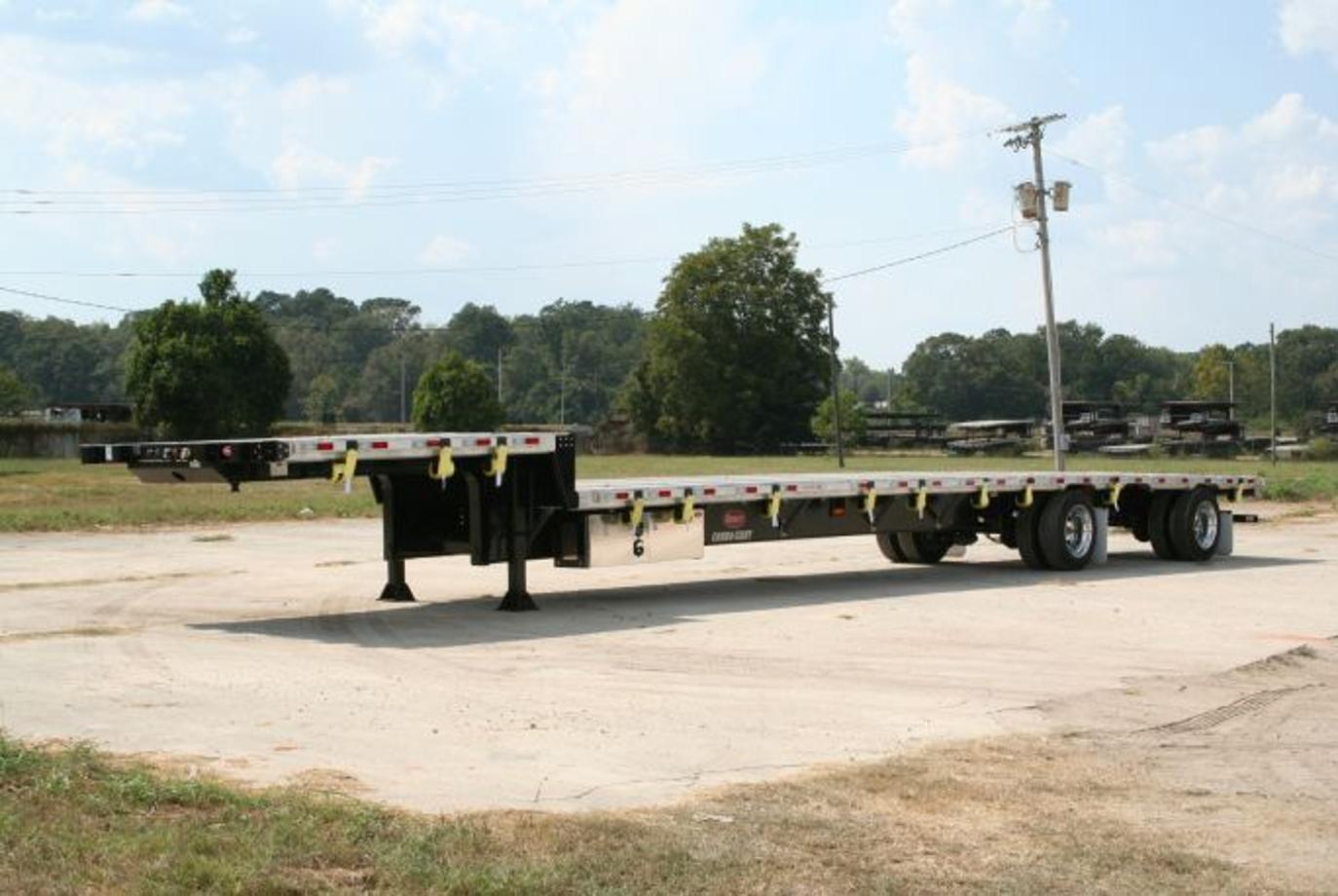

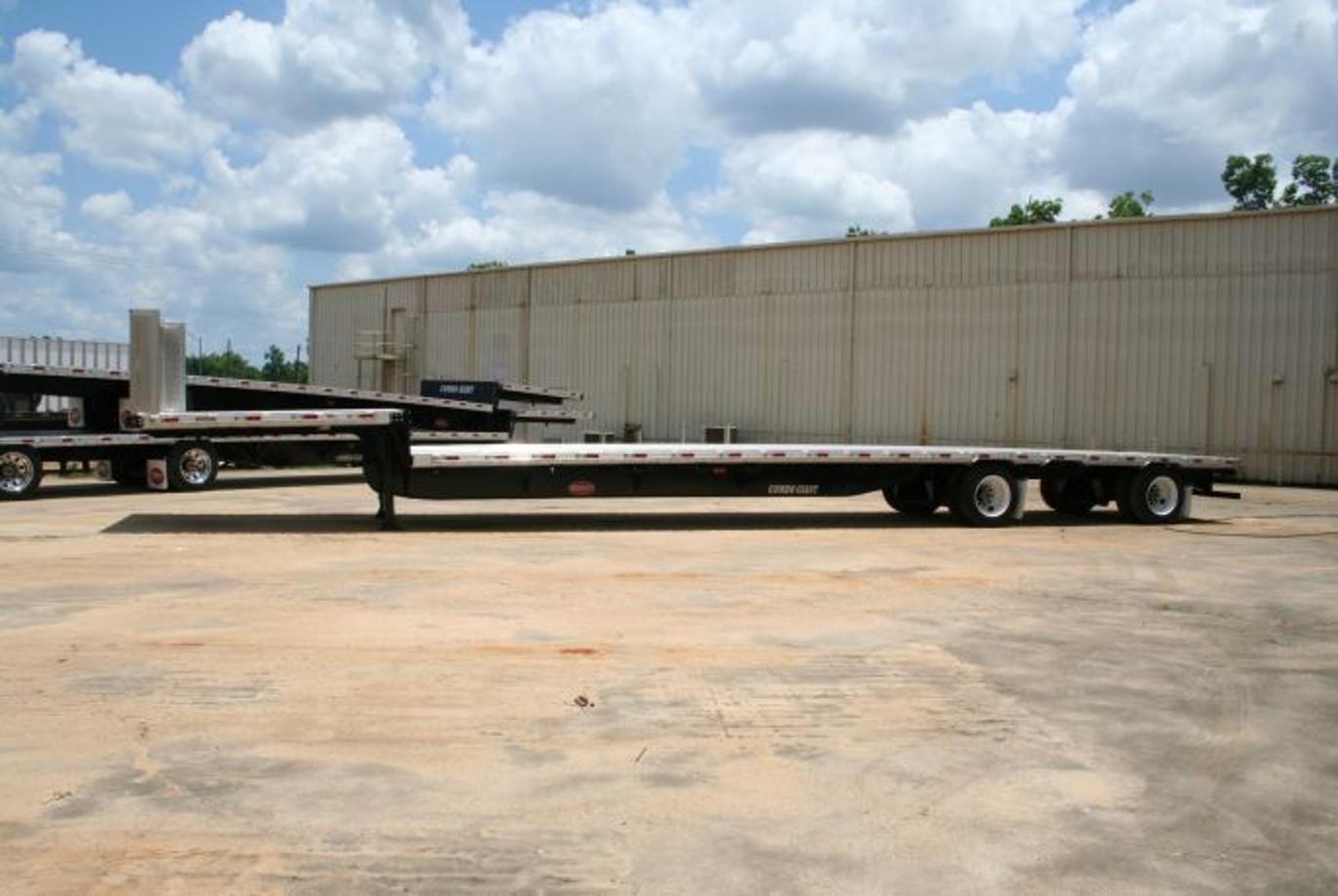

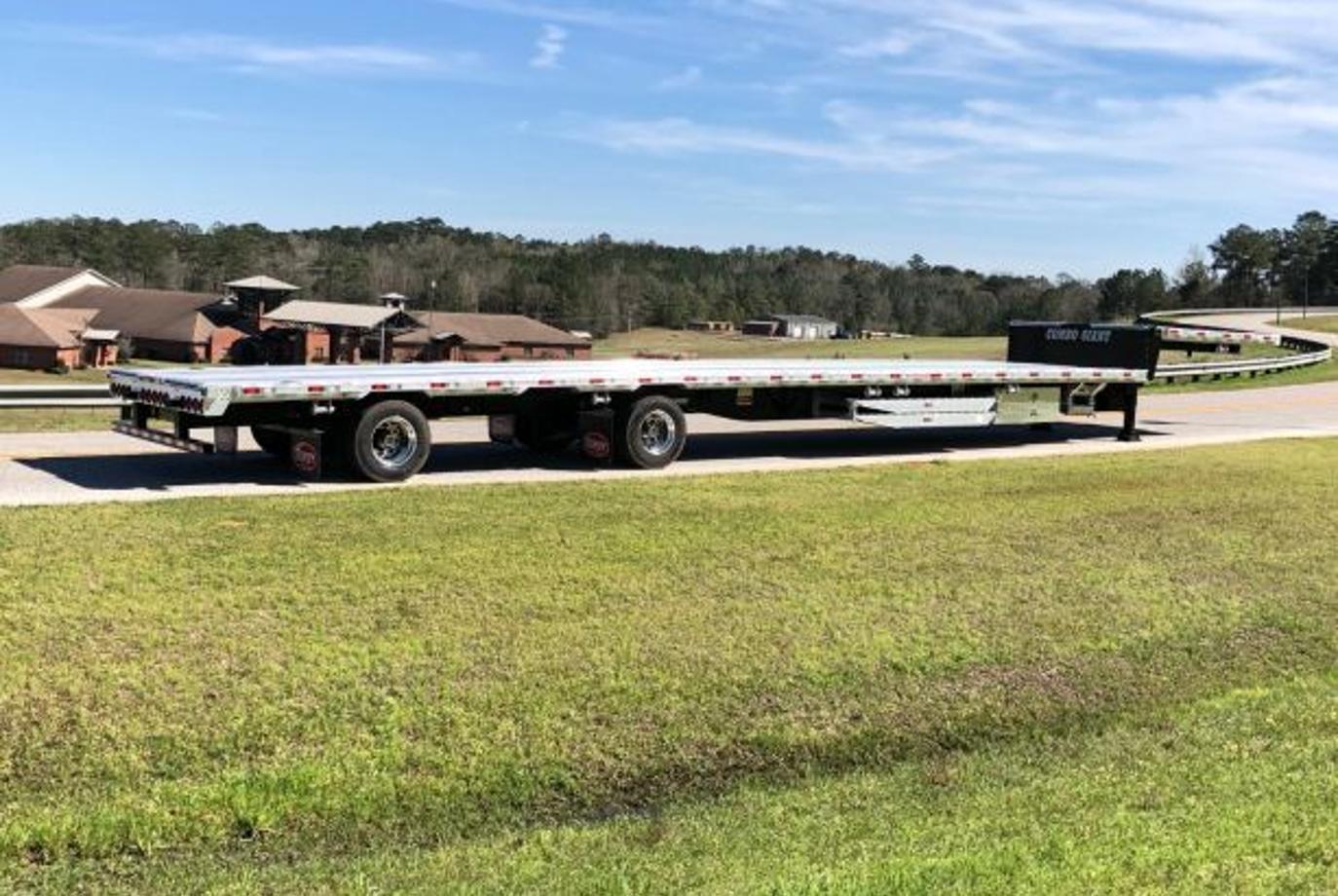

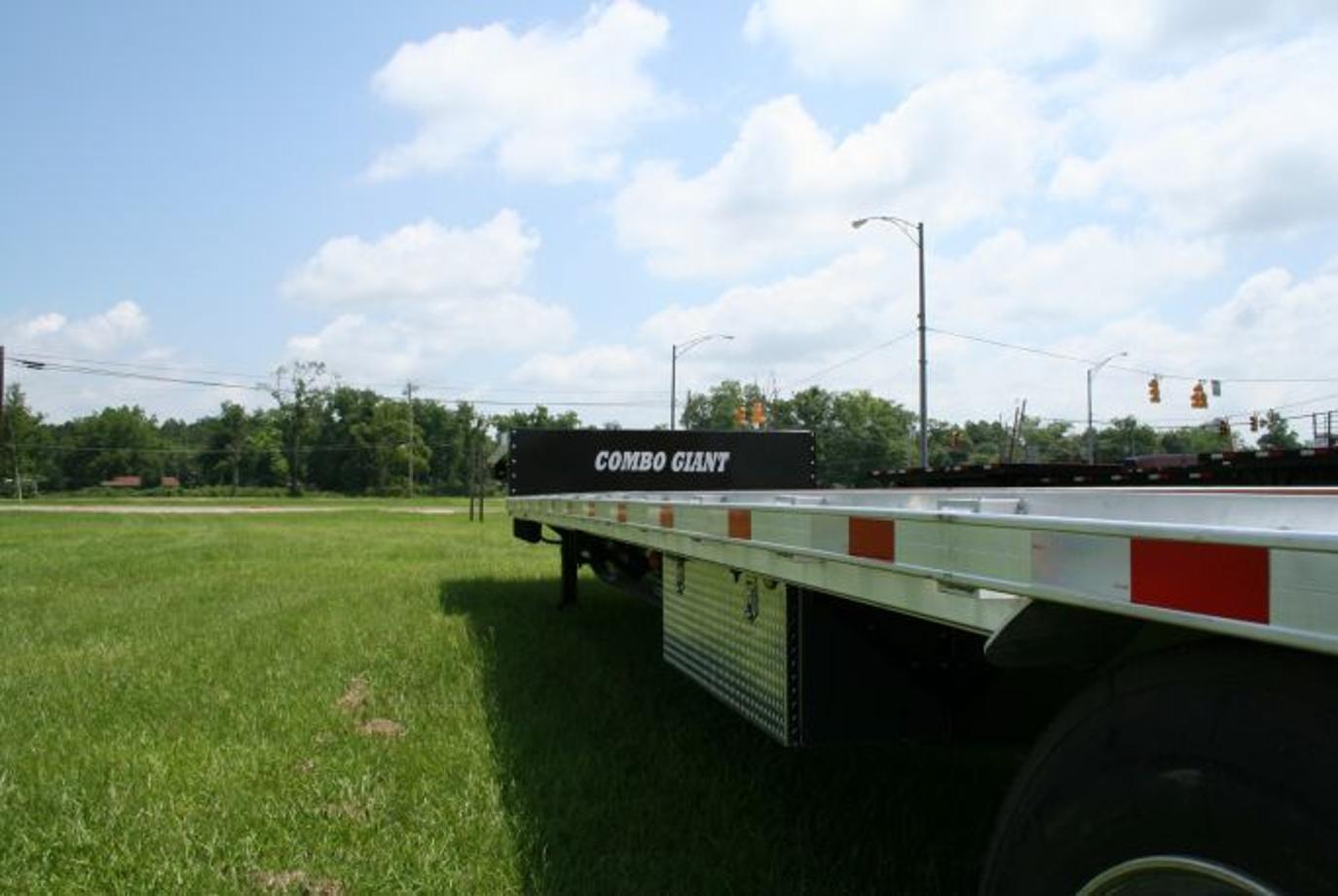

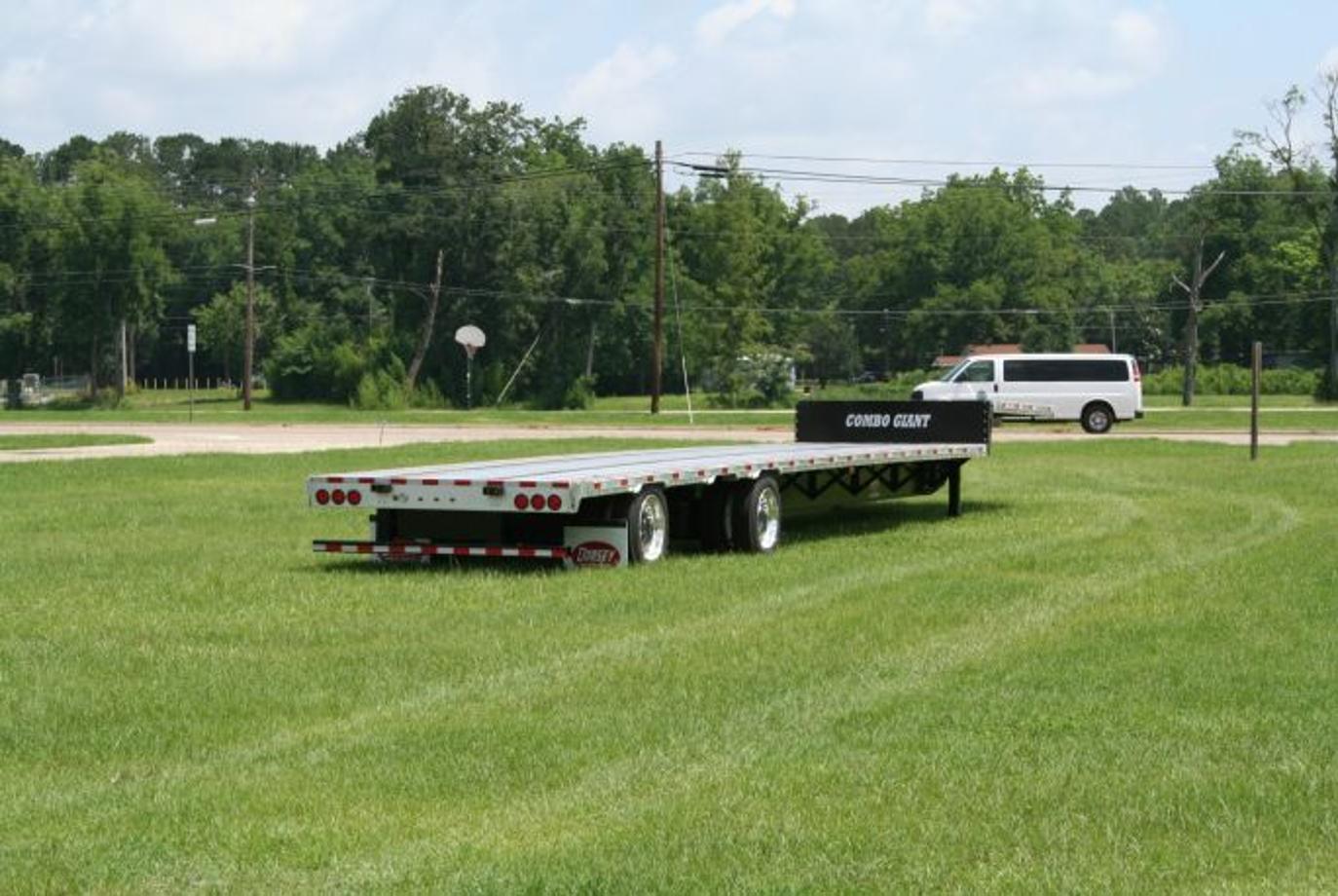

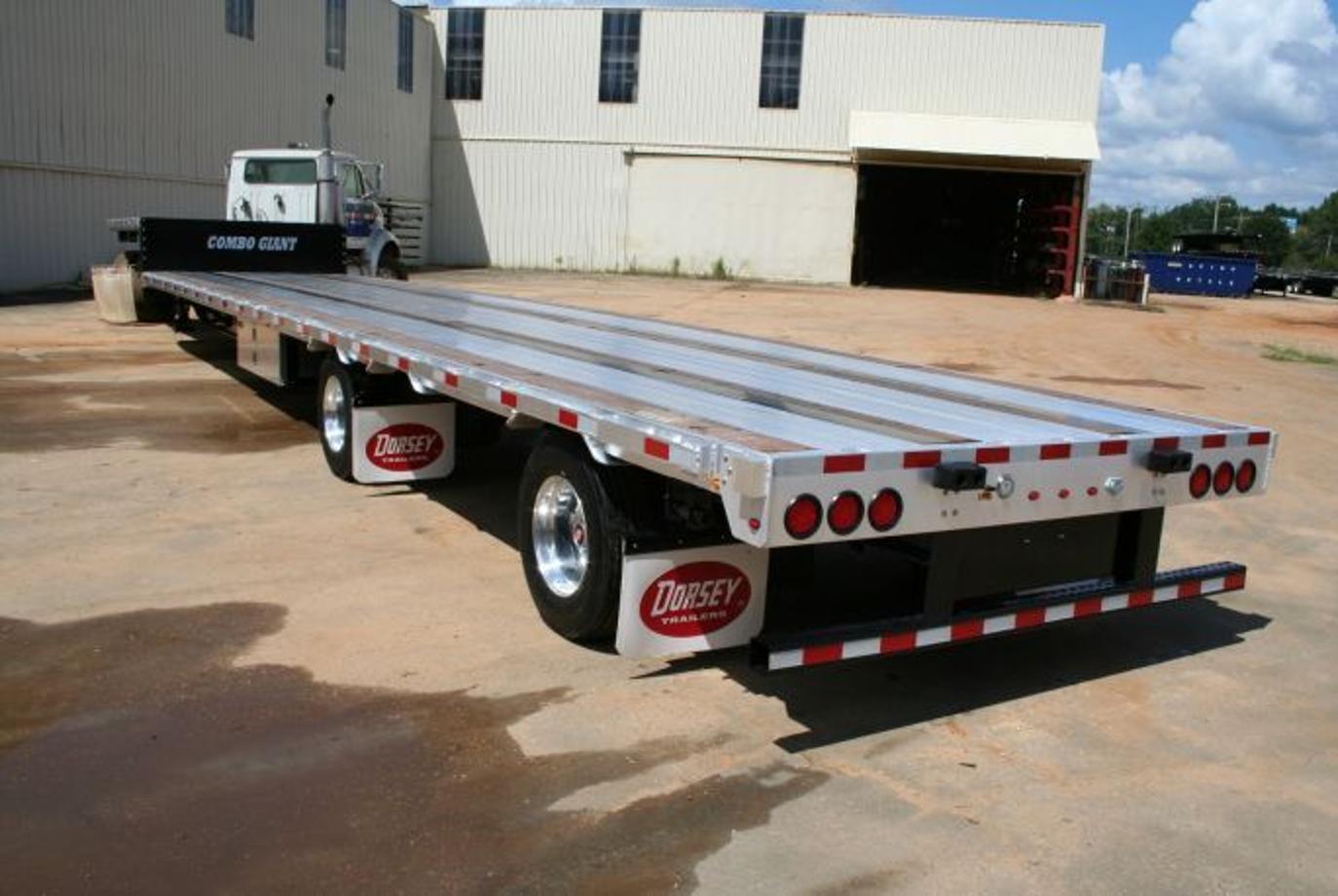

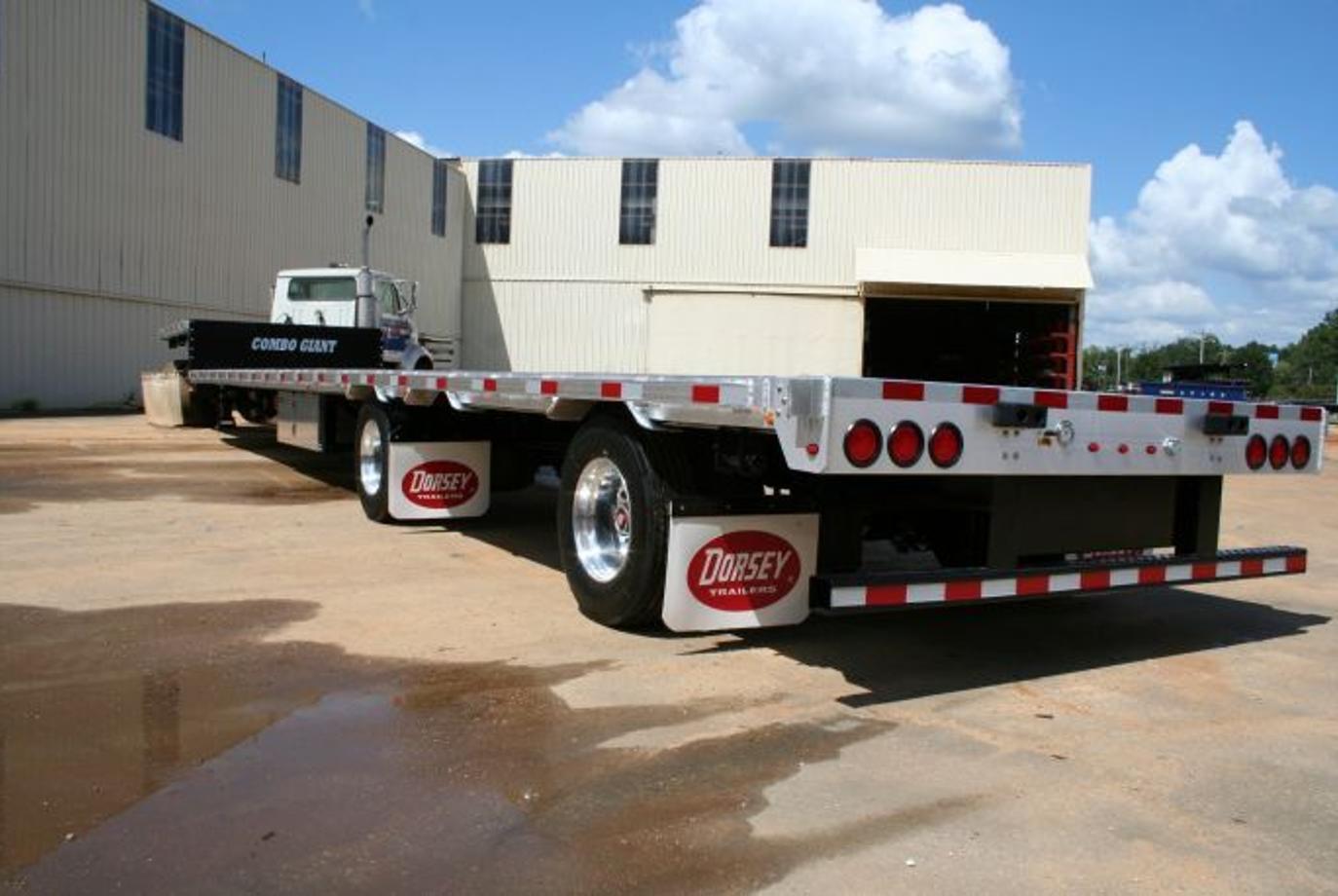

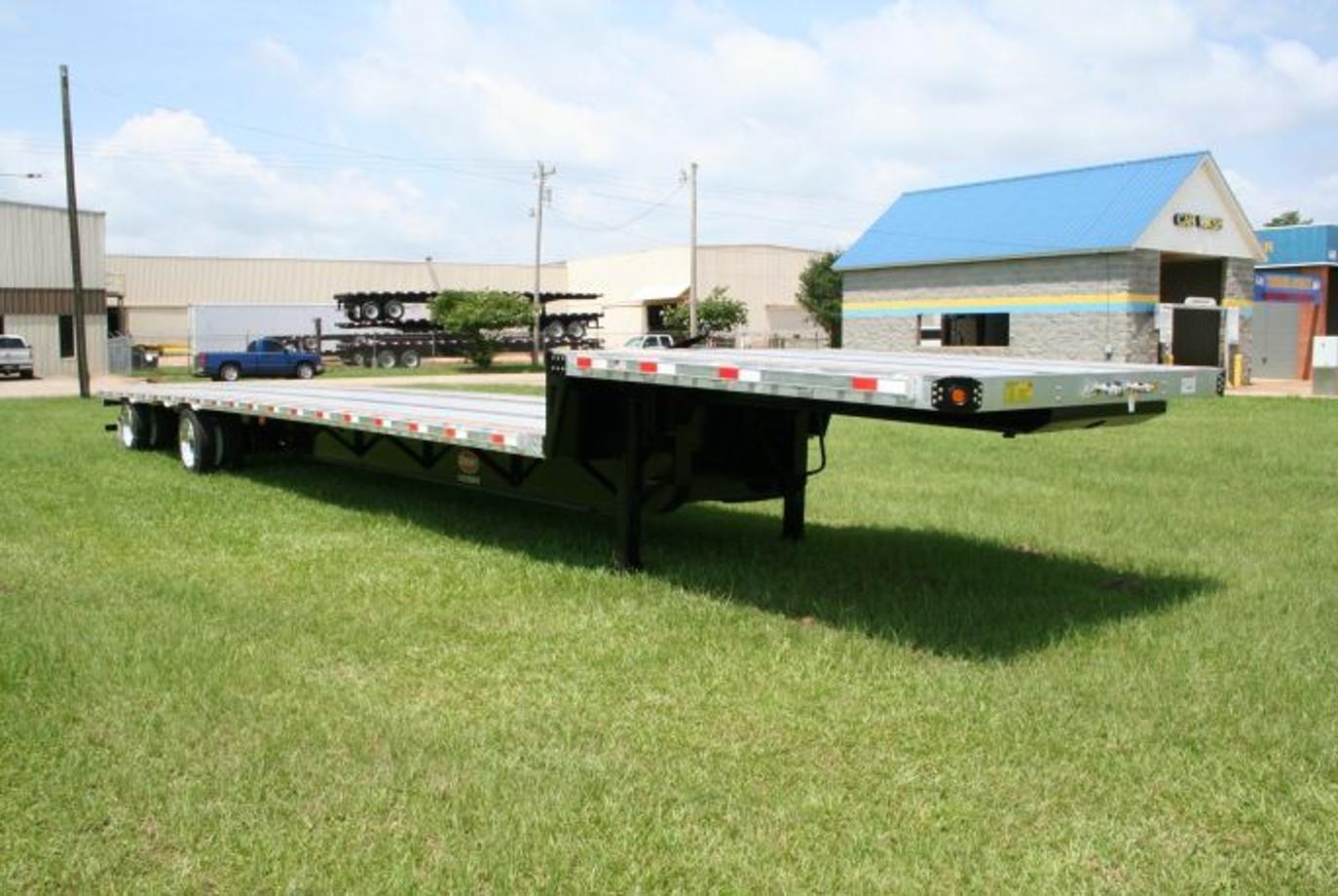

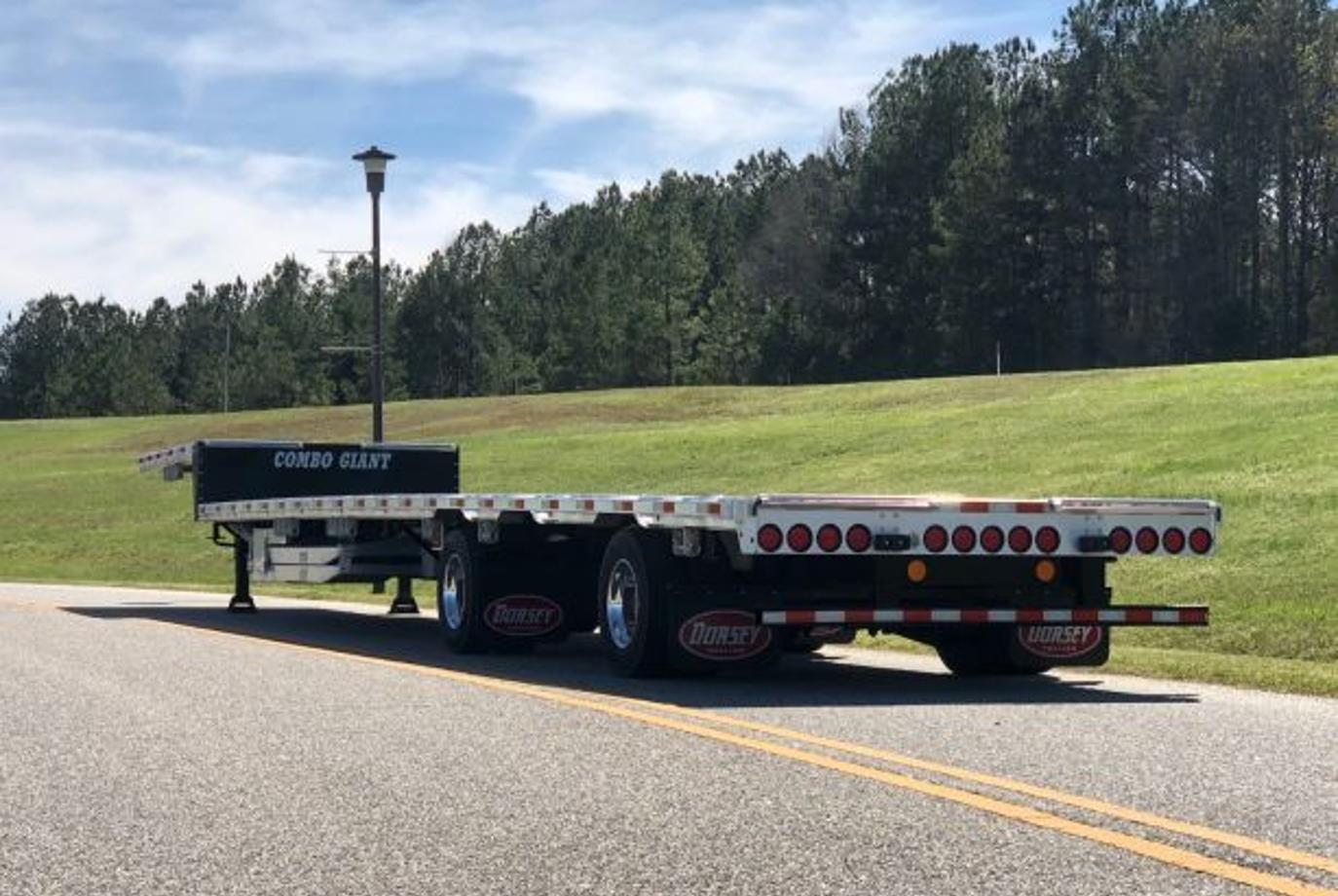

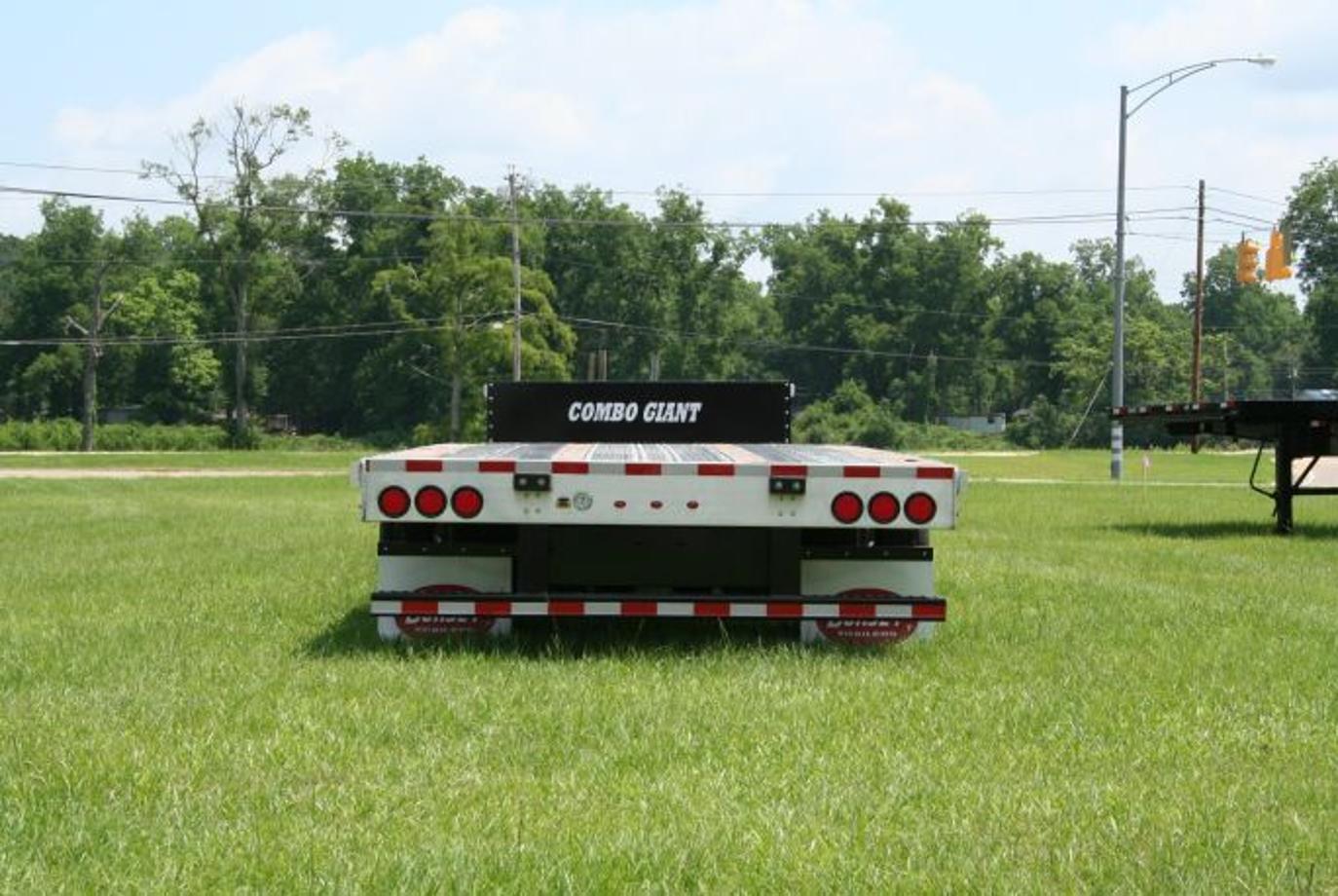

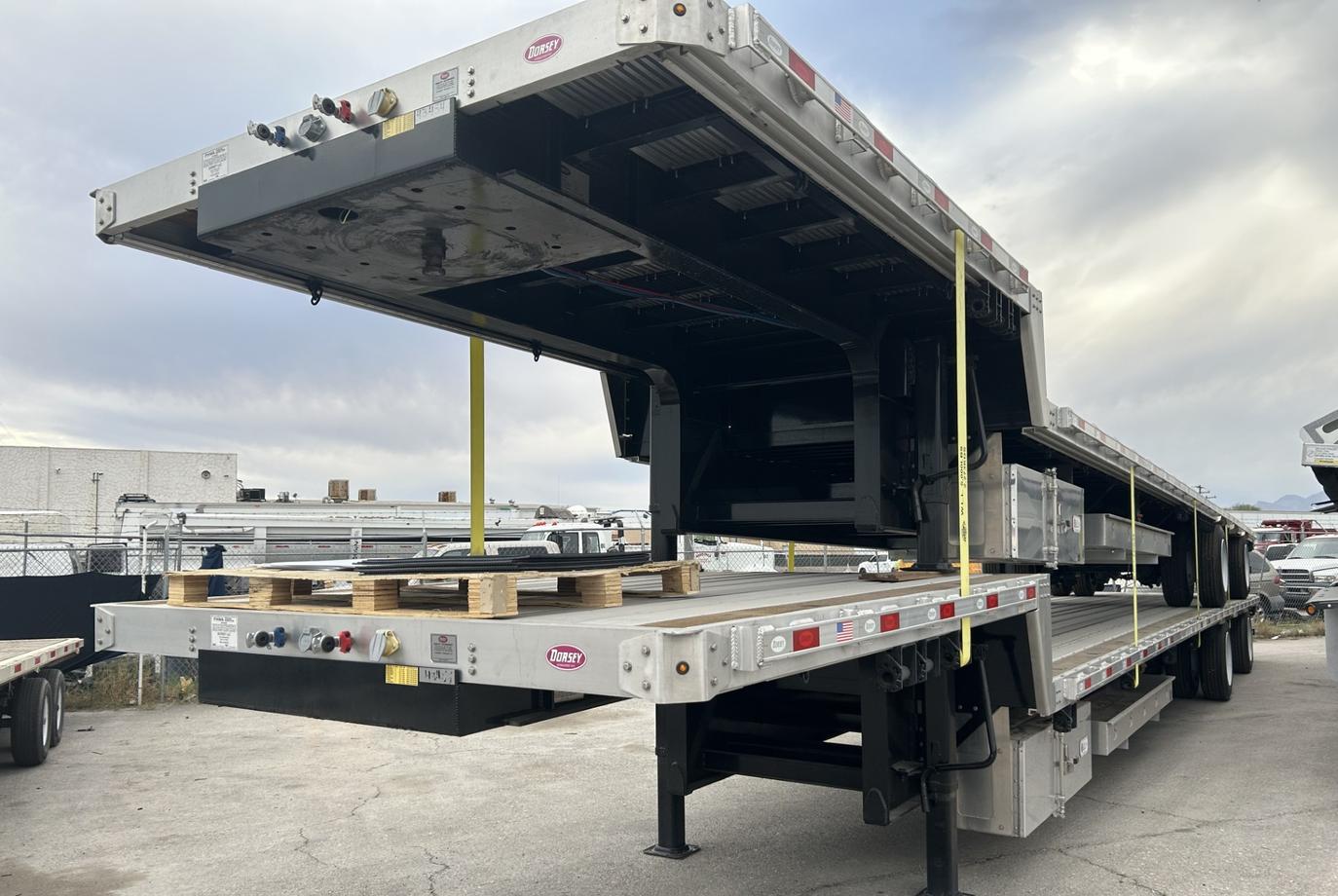

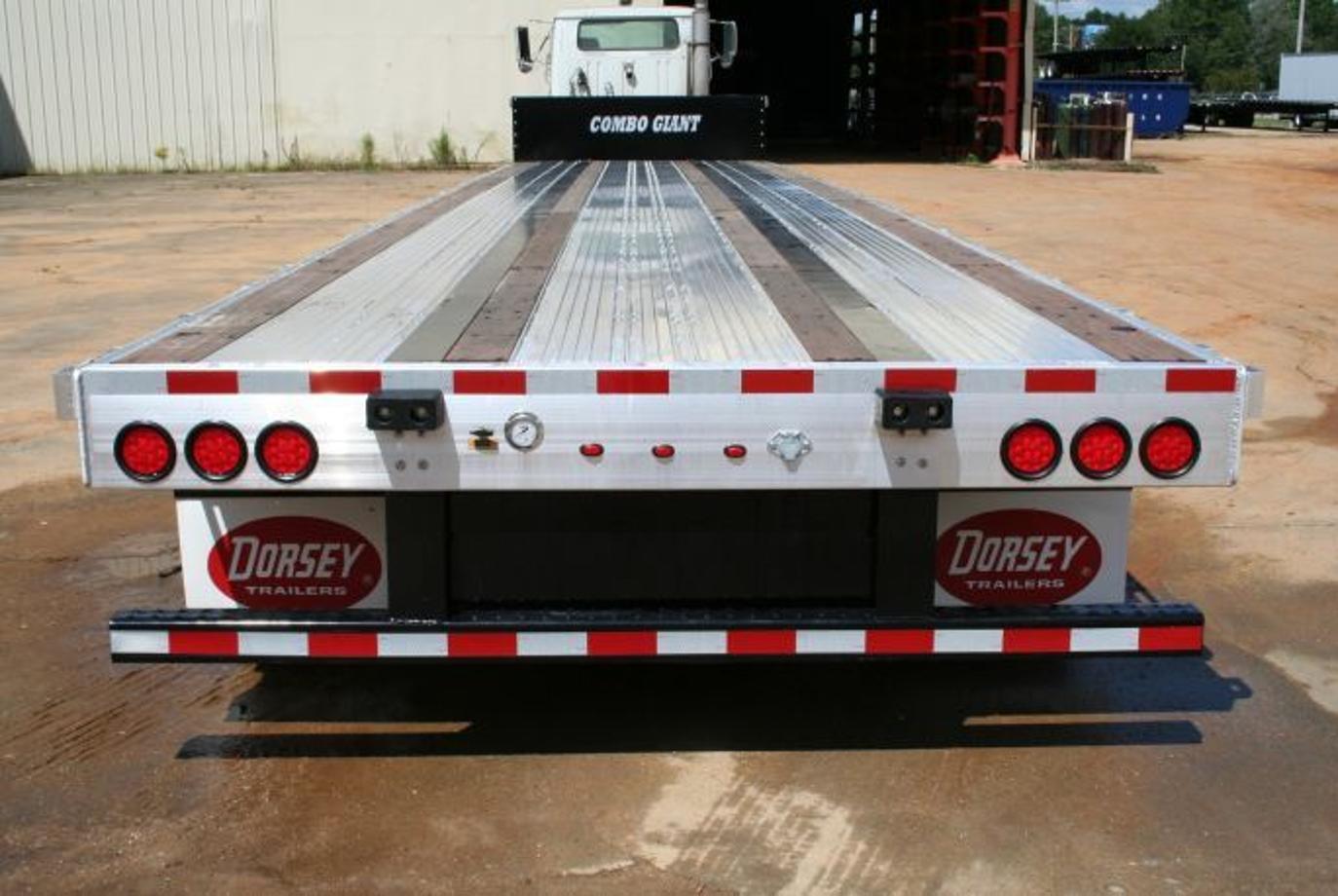

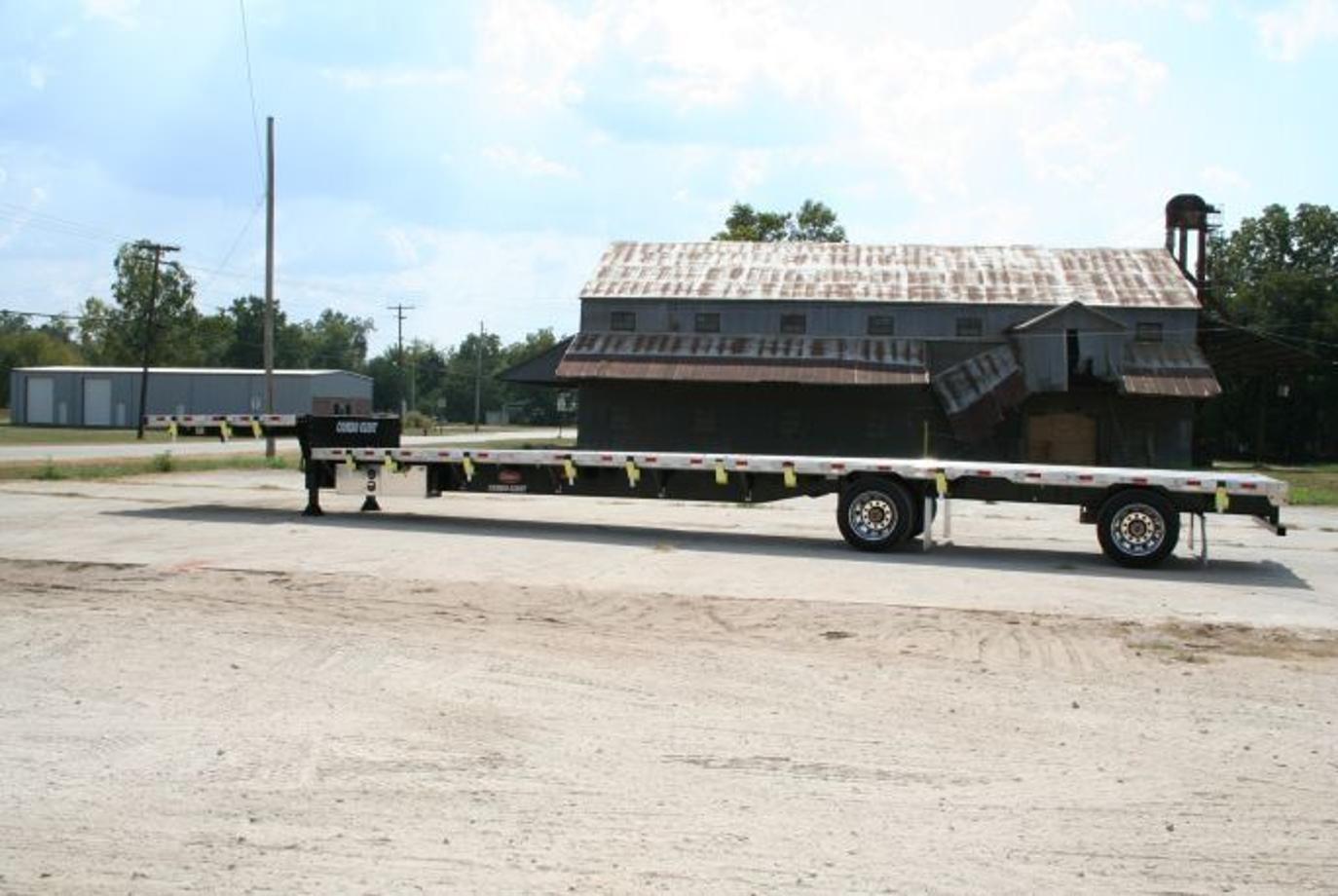

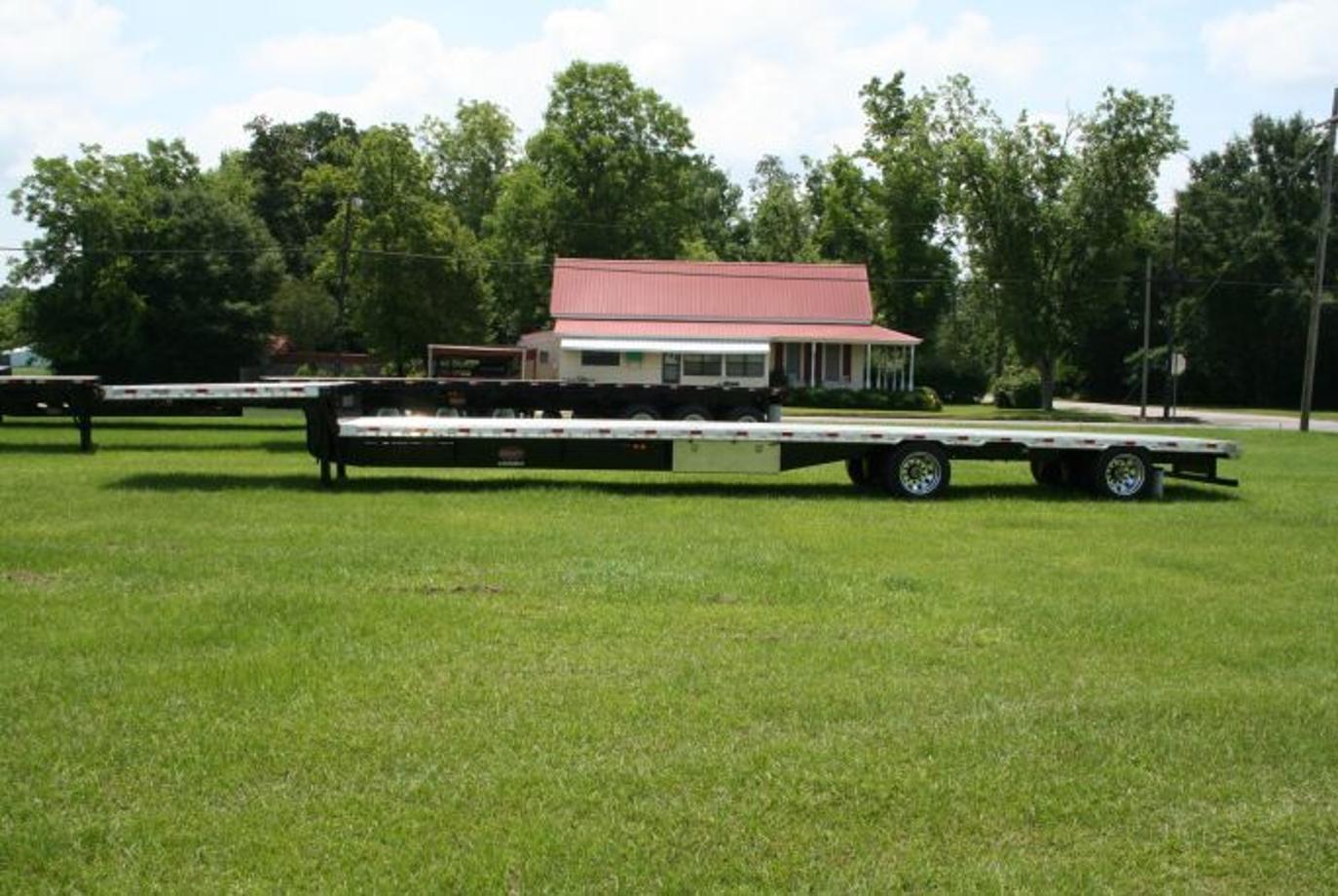

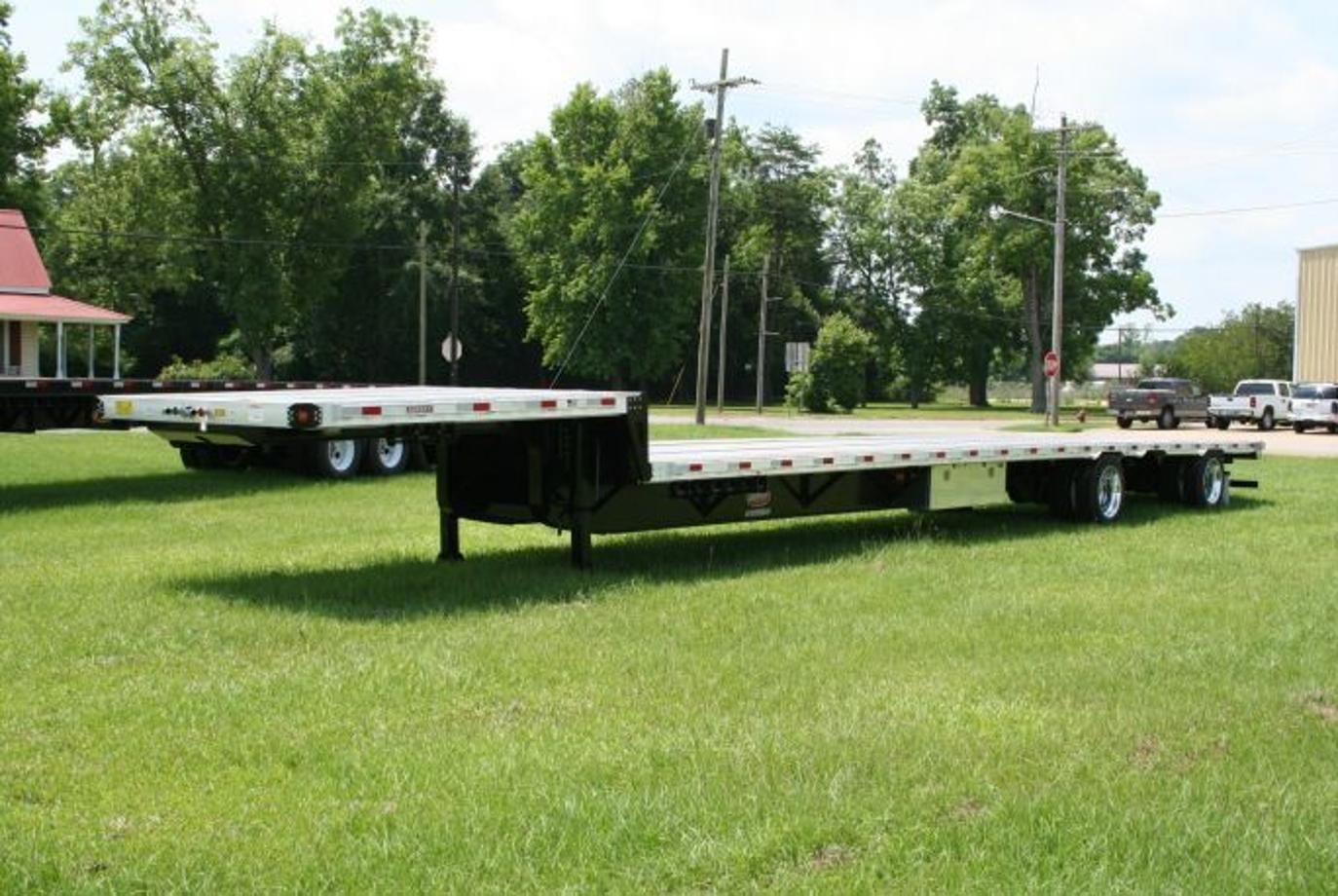

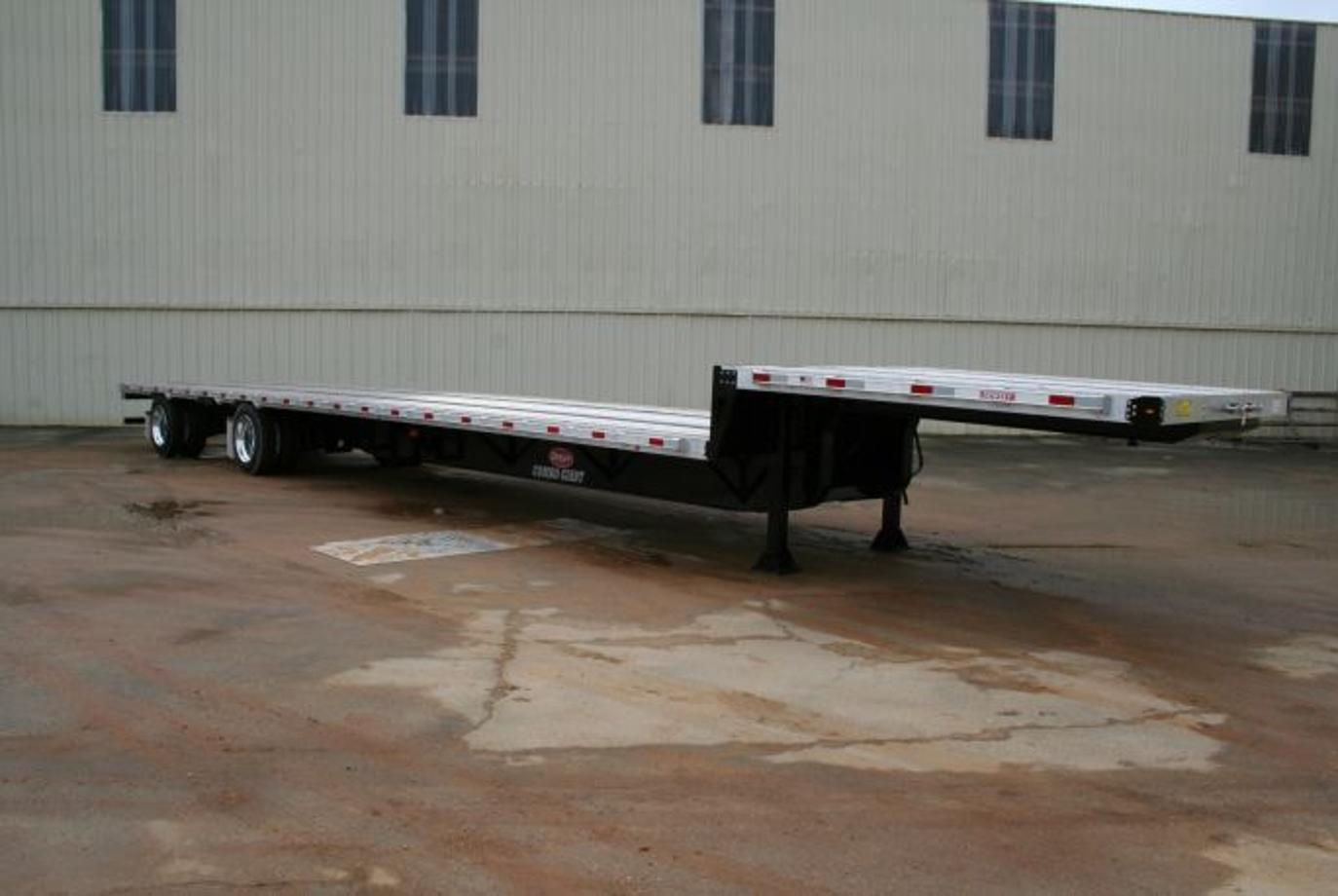

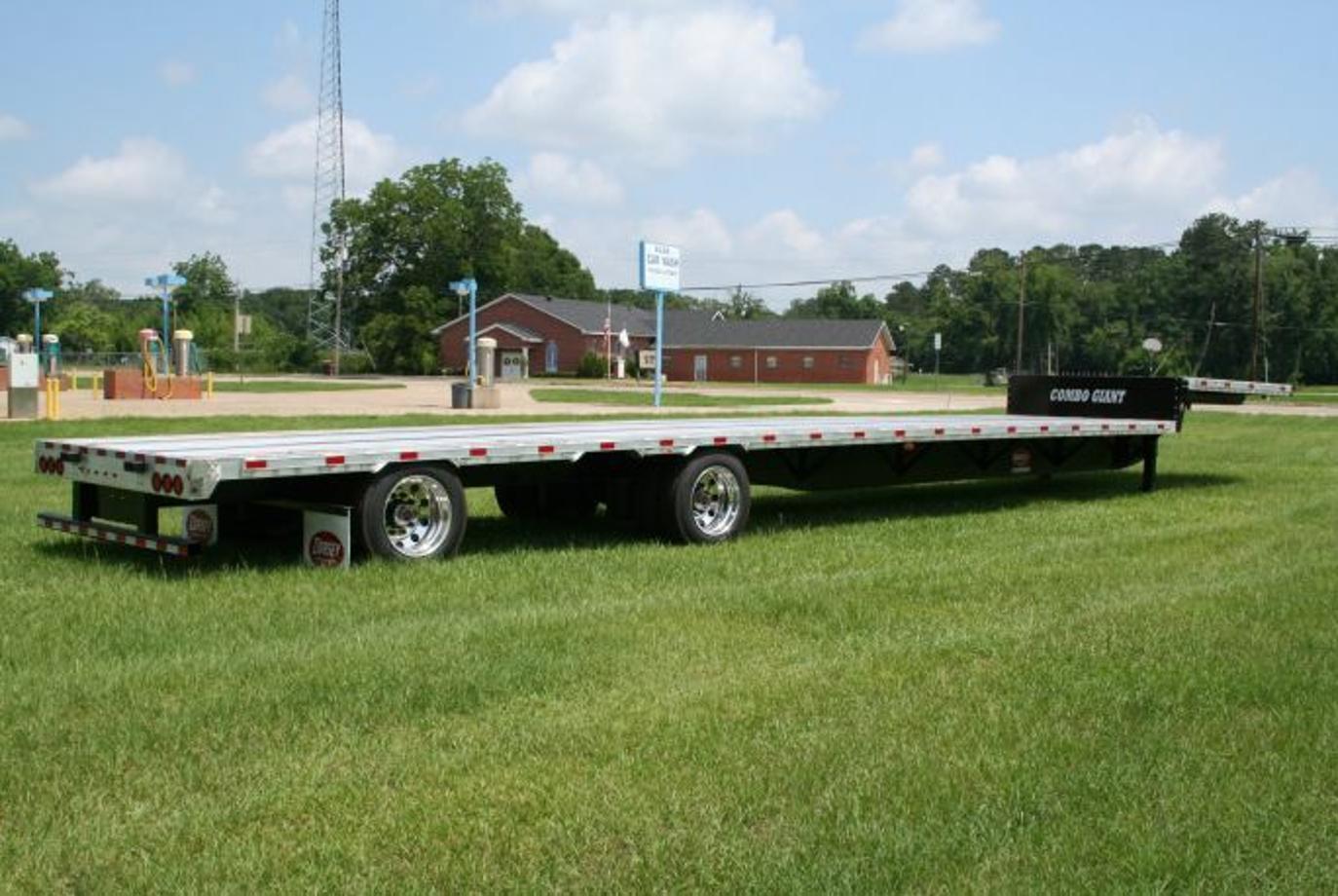

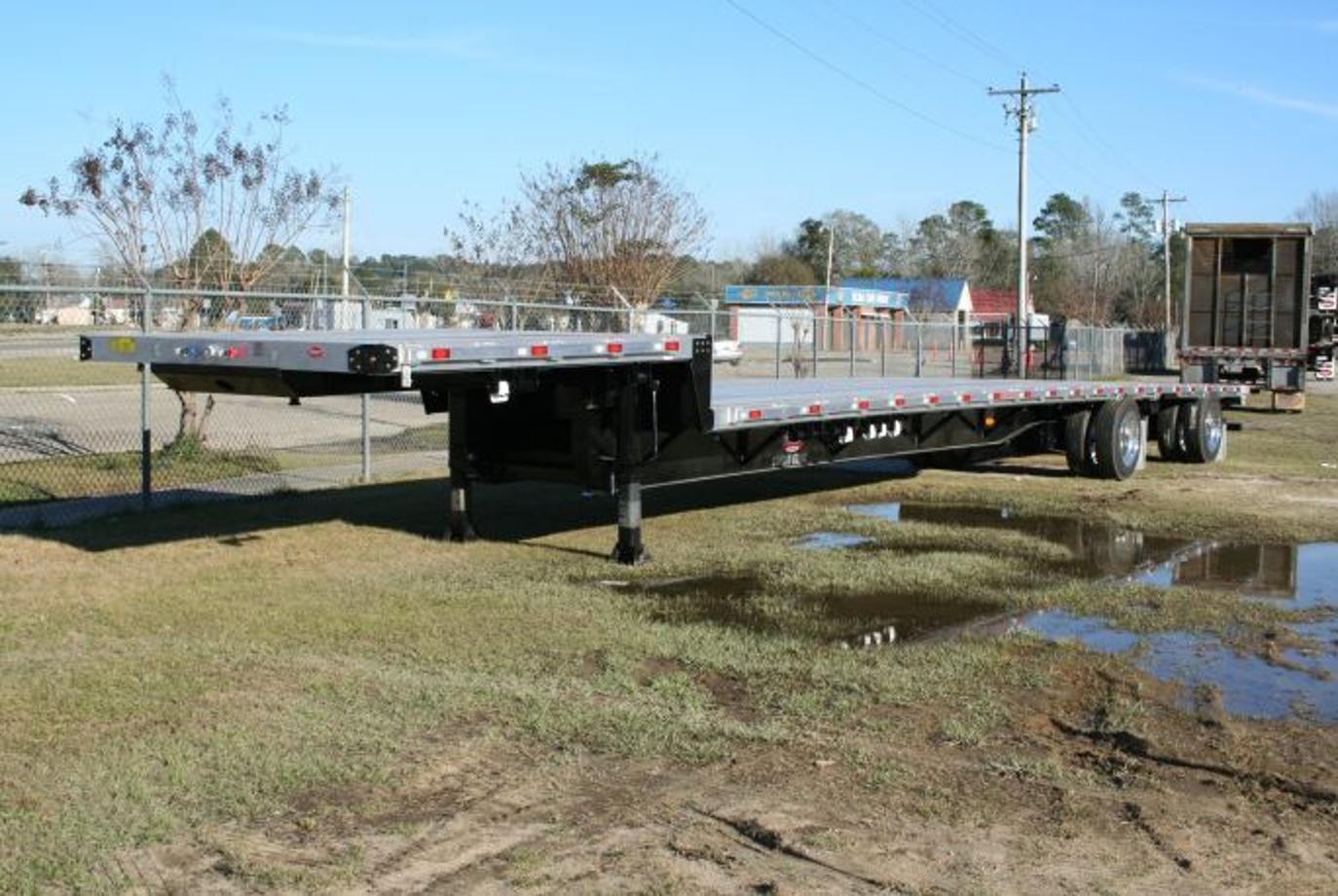

Dorsey DC53 – Step Deck, 53', 80,000 GVWR
Dorsey DC53 Step Deck with 53' overall length and 80,000 GVWR.
Key Specs

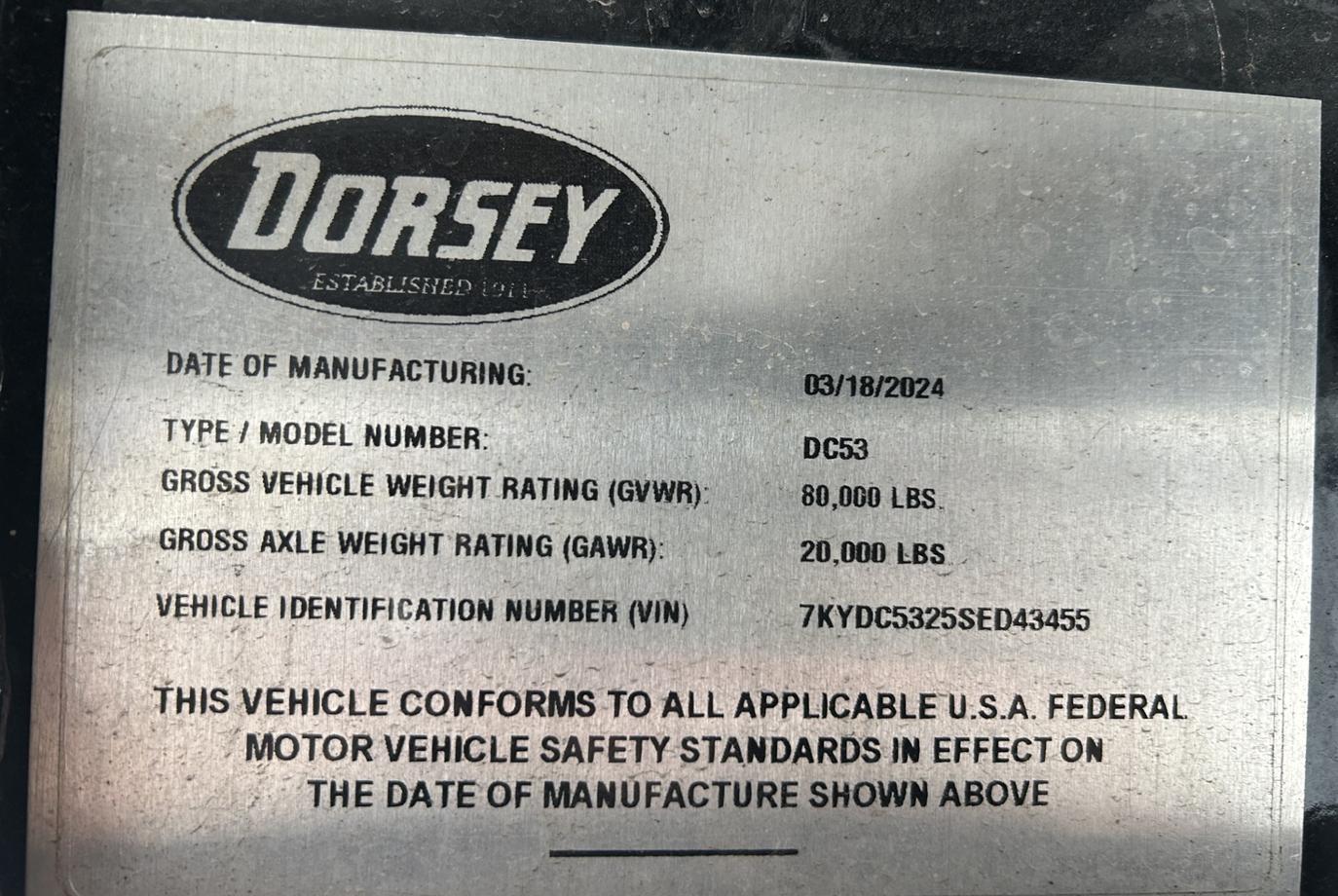

- Capacity: STANDARD BEAM PKG – 80,000 GVWR (60,000 IN 10' SPAN)
- Overall length: 53' - BASE WEIGHT 11,680#
- Overall width: 8' 6"
- King pin setting: 18" - SQUARED PICKUP PLATE
- Upper coupler plate: ¼"
- Upper coupler height: 48"
- Paint: BLACK
Tub Construction
- Main frame: 26" FAB. - PRE CAMB I-BEAMS (80K PKG)
- Side rails: 6" - ALUM-EXTRUDED W/ DOUBLE L TRACK
- Top deck length/height: 10' 6" LENGTH = 59" HEIGHT
- Lower deck length/height: 42' 6" LENGTH = FRONT 41', CENTER 42, REAR 40" HEIGHTS
- Top deck floor sills: 4" STEEL I-BEAM 18" O.C. HD PKG. (+325#)
- Lower deck floor sills: 4" STEEL I-BEAM 12" O.C. HD PKG
- Floor decking: 1-1/8" HD ALUMINUM W/ 2 NAILER BOARDS
- Coil haul package: SINGLE COIL PLACEMENT – 5 EXTRA STUD SILLS-CTR ON TRAILER
- Winches: 12 DOUBLE L (+) #75
- Winch track: DOUBLE L ALUMINUM – EXTRUDED SIDERAIL C/S & R/S - BOTH SIDES
- Tie bar: D/S & C/S - FULL LENGTH NOTH SIDES – 3/8" x 2"
- Spool: TRIANGULAR SHAPED
- Rub band alum: 3/8" x 3" - ALUMINUM – RECESSED FOR DOT TAPE
- Dock bumpers: RUBBER INBOARD
- Cargo tie down: 14 PAIR OF RECESSED CHAIN TIES EVENLY SPACED
- Stake pockets: 24" O.C. SIDES & ACROSS REAR
- Dunnage rack: ALUMINUM DUNNAGE RACK DRIVERS SIDE – 8' 3"
- Toolbox: ALUMINUM – SMOOTH BOX 18Hx18Dx60L – CAM LOCK (DRIVER SIDE – BEHIND LANDING GEAR)
Axles & Suspension
- Suspension: AIR RIDE – HENDRICKSON INTRAAX-25K 2 AXLES
- Suspension location: R.A.S. CAL LEGAL (CENTER OF KP TO CENTER OF REAR AXLE 40' IN CLOSED POSITION)
- Axles: (2) 25K CAPACITY – TYPE 30 CHAMBERS – AUTO SLACKS – ABS – 22.5 TIRES (1463#)
- Axle spacing: RAS – 2 POSITION – 49" & 10' 2" SPREAD
- Lift axle: NONE
- Parking brakes: ALL AXLES
- ABS system: WABCO ABS SYSTEM 2S/1M
- Dump valve: ELECTRIC WIRED THRU AUX 7WAY PLUG @ FRONT OF TRAILER – DUMP REAR AXLE (+9#)
- Scales: NONE
- Dust shields: NONE
Wheels & Tires
- Wheels: DISC – HUB PILOTED – 22.5 STEEL (672#)
- Tires: 255/70R 22.5 - FIRESTONE
- Tire inflation system: NONE
- Tire carriers: TIRE CARRIER POSITIONED IN FRONT OF MAIN BEAMS BETWEEN LANDING GEAR

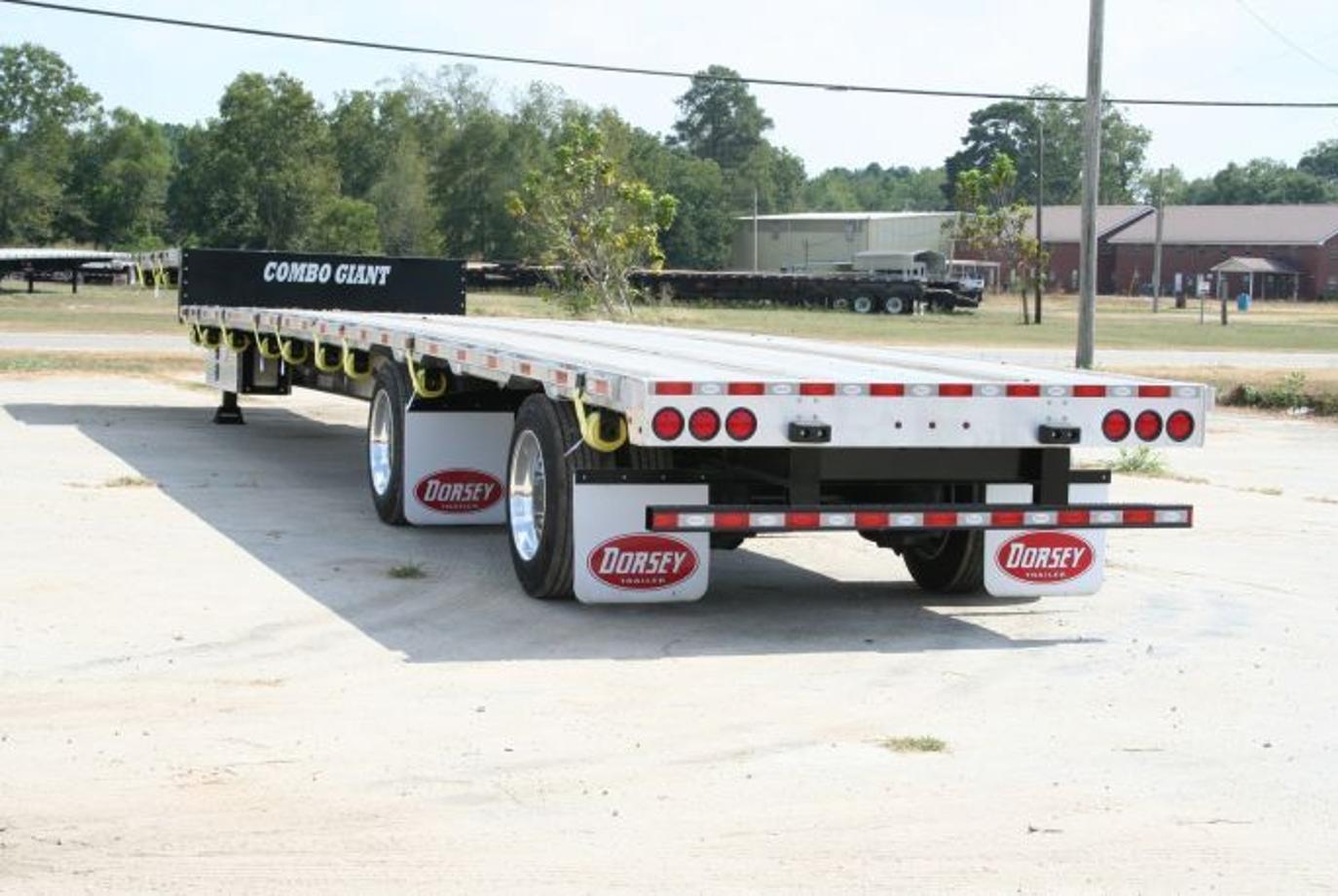

- Anti-sail mud flaps: BEHIND ALL AXLES
Lighting & Safety

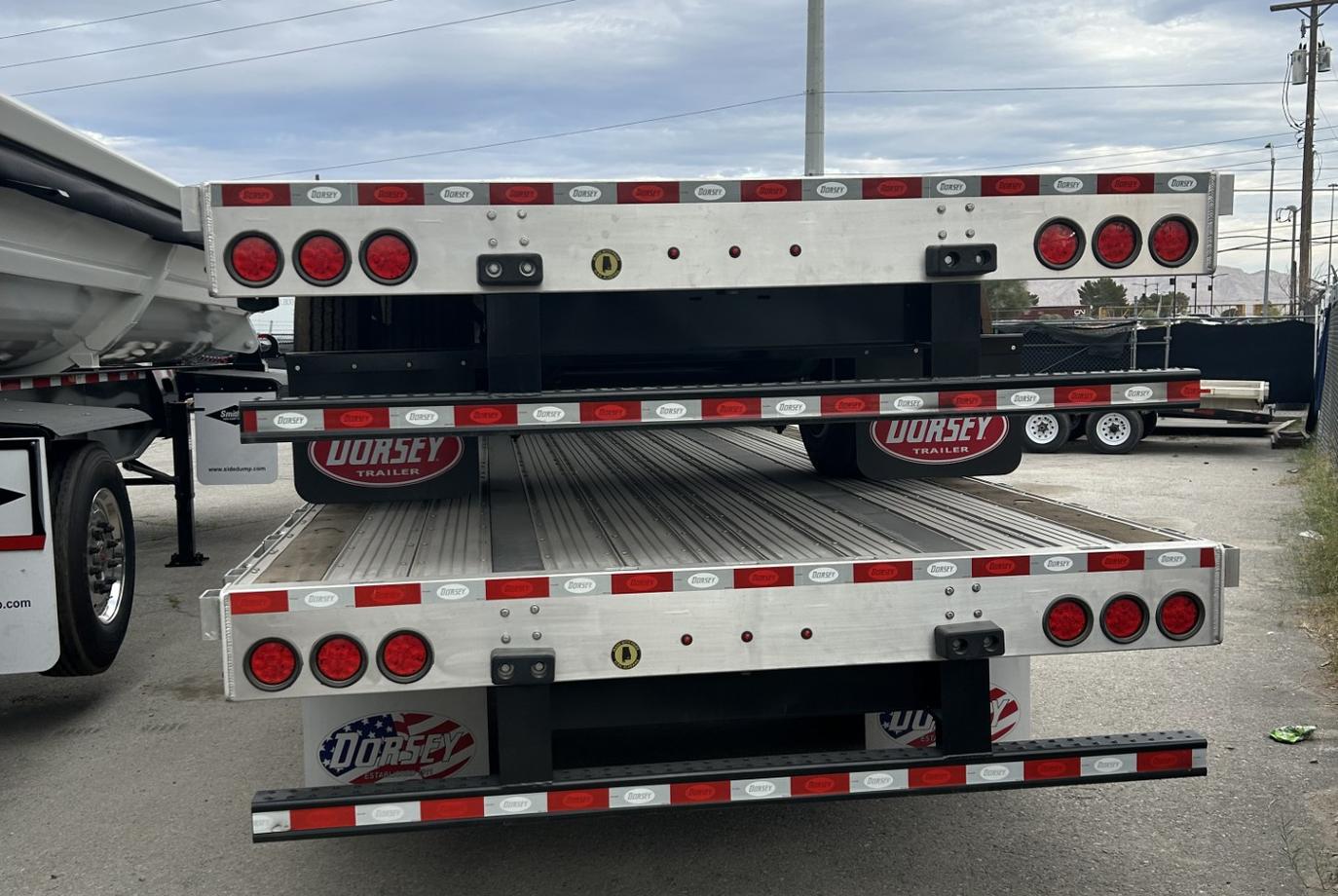

- Lights: GROTE ULTRA BLUE SEALED WIRING HARNESS – 2 MICROS PER SIDE & MID TURN – 3/3/3 REAR
- Custom lights: NONE
